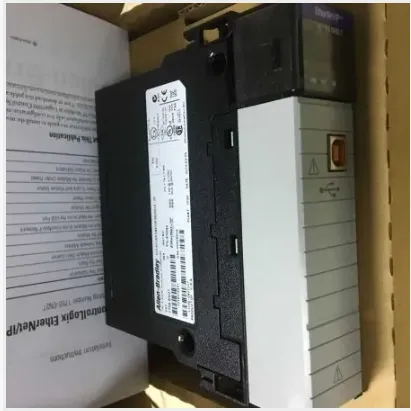

Help CenterAllen Bradley 1756-ENET ControlLogix EtherNet/IP Bridge Module
Product Spotlights
Related Products
-
ALLEN-BRADLEY ControlLogix 5570 Controllers 1756-L7SPNegotiableMOQ: 1 Piece -
ALLEN-BRADLEY ControlLogix 5570 Controllers 1756-L72SNegotiableMOQ: 1 Piece
-
ALLEN-BRADLEY PowerFlex 753 AC Drive, With Embedded I/O 20F11ND011JA0NNNNNNegotiableMOQ: 1 Piece
-
ALLEN-BRADLEY ControlLogix 5580 Process Controller 1756-L81EPNegotiableMOQ: 1 Piece
-
Allen Bradley PANELVIEW Plus Compact 600 2711PC-T6C20DNegotiableMOQ: 1 Piece
As a trusted supplier with over a decade of experience in the industrial automation sector, Rossonix Co., Limited is proud to offer the genuine Allen Bradley 1756-ENET EtherNet/IP Bridge Module. We understand the critical need for reliable and high-performance communication in modern control systems. This module serves as a vital link, seamlessly integrating your ControlLogix processors into EtherNet/IP networks, thereby enabling efficient data exchange, enhanced diagnostics, and streamlined system integration for complex industrial applications.
The Allen Bradley 1756-ENET module is engineered to deliver robust connectivity within the ControlLogix platform. It acts as a bridge, facilitating communication between the controller's backplane and standard Ethernet networks using the open, widely adopted EtherNet/IP protocol. This capability is fundamental for achieving real-time control, data collection, and supervisory functions across your factory floor or process plant.
Key Features and Technical Advantages:
Seamless ControlLogix Integration: Designed specifically for the ControlLogix platform, this module plugs directly into the chassis backplane, ensuring high-speed, deterministic communication with other ControlLogix modules and the processor.
Standard EtherNet/IP Protocol: Utilizes the industry-standard CIP (Common Industrial Protocol) over Ethernet, ensuring compatibility with a vast ecosystem of Allen Bradley devices and third-party products supporting EtherNet/IP.
Enhanced System Diagnostics: Provides detailed status indicators and network diagnostics accessible through Rockwell Automation programming software (like Studio 5000 Logix Designer), aiding in quick troubleshooting and maintenance.
Scalable Network Architecture: Enables the creation of distributed control systems by connecting multiple controllers, I/O racks, and human-machine interfaces (HMIs) over a single network, simplifying cabling and reducing costs.
Support for Producer/Consumer Model: Efficiently handles multicast messaging, optimizing network bandwidth usage for time-critical control data and peer-to-peer communication between controllers.
Technical Specifications:
| Parameter | Specification |
| Module Type | 1756-ENET EtherNet/IP Bridge Module |
| Compatibility | ControlLogix 1756 Chassis |
| Network Interface | 10/100 Mbps Ethernet (RJ45) |
| Protocols Supported | EtherNet/IP (CIP), TCP/IP, ICMP, ARP, DHCP Client |
| Keying | User-configurable (via software) |
| Status Indicators | Module Status, Network Status, Link Activity |
Benefits for Your Operation:
Improved Data Accessibility: Enables real-time data access from the controller to SCADA, MES, and ERP systems, supporting informed decision-making.
Reduced Wiring Complexity: Replaces traditional point-to-point wiring with a single network cable for communication, lowering installation time and material costs.
Future-Proof System Design: Leveraging open standards like EtherNet/IP protects your investment and allows for easier integration of new technologies.
Centralized Control and Monitoring: Facilitates centralized programming, configuration, and monitoring of geographically dispersed control assets.
Rossonix Co., Limited, established in 2011 and holding ISO9001 certification, has built a strong reputation for supplying authentic Allen Bradley components to a global clientele across North America, Europe, Asia, and other key industrial markets. With an annual export value in the multi-million dollar range and strategic shipment points including Shenzhen and Hong Kong, we are positioned to deliver the 1756-ENET module efficiently and reliably. Our experience ensures you receive a product that meets the high standards required for mission-critical automation. Choose this module to enhance the connectivity, performance, and scalability of your ControlLogix-based control system. Contact us today for pricing, availability, and technical support.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 1756-ENET module?
A1: Its primary function is to provide a communication bridge between the ControlLogix controller's backplane and an EtherNet/IP network. It allows the controller to communicate with other devices like HMIs, drives, remote I/O, and supervisory systems over standard Ethernet cabling.
Q2: Is this module compatible with all ControlLogix processors?
A2: The 1756-ENET module is compatible with ControlLogix 1756 chassis and is designed to work with ControlLogix processors. Compatibility with specific firmware revisions should be verified using the latest Rockwell Automation compatibility documents.
Q3: Can I use this module to connect to non-Allen Bradley devices?
A3: Yes, if the other device supports the standard EtherNet/IP (CIP) protocol. This open protocol enables interoperability with a wide range of third-party sensors, actuators, and other industrial equipment.
Q4: What software is needed to configure the 1756-ENET module?
A4: Configuration is typically done using Rockwell Automation's Studio 5000 Logix Designer software. The module's IP address, network parameters, and communication settings are configured within the project file for the associated controller.
Q5: Does the module support both 10 Mbps and 100 Mbps Ethernet speeds?
A5: Yes, the 1756-ENET module features an auto-negotiating 10/100 Mbps Ethernet interface. It will automatically establish the best possible connection speed with the network switch or connected device.
Q6: How many connections or devices can this module handle?
A6: The number of concurrent connections is managed by the ControlLogix processor's resources and the network design. The module itself facilitates the physical and protocol layer connection, with the specific connection count being a function of the controller's configuration and the application's demands.
Q7: What are the status indicators on the module used for?
A7: The LEDs provide visual feedback on module health (OK, Fault), network link status (connected/speed), and network activity (transmitting/receiving data). This is crucial for quick visual diagnostics during operation and maintenance.
Q8: Can this module be used for safety-related communication?
A8: The standard 1756-ENET module is designed for standard control and information exchange. For safety-critical communication within a ControlLogix system, dedicated safety modules like the 1756-EN2F or other safety-rated network solutions should be considered.
