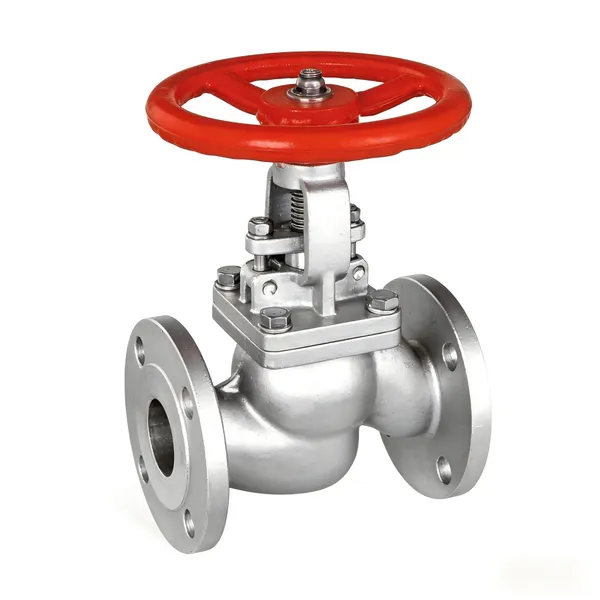

Industrial Cast Stainless Steel Globe Valves – ANSI Class 150 / 300
Precision Flow Regulation & Severe Service Reliability
SHAANXI GOLD-STONE I/E CO., LTD. manufactures and supplies premium-grade cast stainless steel globe valves designed specifically for high-precision throttling, frequent operation, and absolute shut-off in critical industrial pipelines. Utilizing advanced investment casting for bodies and bonnets, our globe valves deliver exceptional structural integrity, optimized flow dynamics, and superior corrosion resistance under high-pressure and high-temperature conditions.
Key Engineering Features
Advanced Investment Casting Body & Bonnet
Ensures uniform wall thickness, eliminates internal casting defects, and provides superior mechanical strength and corrosion resistance.
Outside Screw & Yoke (OS&Y) Design
Keeps the stem threads outside the process fluid, preventing medium-induced corrosion and lubrication washout while offering clear visual position indication.
Bolted Bonnet (BB) & Rugged Construction
Engineered for high-pressure safety, allowing easy inline maintenance and packing replacements.
Precision Throttling & Loose Disc Design
Specifically contoured plug or parabolic disc provides linear flow characteristics and stable, turbulent-resistant regulation.
Integral St Seating Option
Offers hard-faced seating surfaces to maximize resistance to erosion, cavitation, and galling.
Technical Specifications & Standards Compliance
Our manufacturing process strictly adheres to global industrial valve standards to ensure seamless integration into international piping networks.
Parameter |
Specification / Compliance Standard |
Design & Manufacture |
ASME B16.34 / BS 1873 / API 603 |
Face-to-Face Dimensions |
ASME B16.10 |
Flange Dimensions |
ASME B16.5 (Raised Face / RTJ) |
Pressure & Temperature |
ASME B16.34 |
Inspection & Testing |
API 598 (Zero-leakage shell & seat testing) |
Pressure Rating |
ANSI Class 150 / Class 300 / Class 600 |
Size Range |
1/2" – 12" (DN15 – DN300) |
Actuation Options |
Manual Handwheel, Bevel Gear Operator, Electric/Pneumatic Actuators |
Material Selection Guide
To match your specific medium and environmental requirements, Shaanxi Gold-Stone provides multi-alloy configurations.
ASTM A351 CF8 (304 Stainless Steel)
Standard choice for water, steam, food processing, and general chemical services.
ASTM A351 CF8M (316 Stainless Steel)
Enhanced with molybdenum for superior resistance to pitting and chloride corrosion in marine and petrochemical environments.
ASTM A351 CF3M (316L Stainless Steel)
Ultra-low carbon specification ideal for welded systems requiring maximum resistance to intergranular corrosion.
ASTM A216 WCB (Carbon Steel)
High-tensile strength alloy optimized for non-corrosive, high-temperature industrial utility lines.
Application Environments
Petrochemical & Refining
Managing highly volatile, corrosive hydrocarbons and process chemicals.
Oil & Gas Transmission
Dependable throttling and isolating service in midstream and downstream pipeline networks.
Power Generation
Superheated steam lines, feedwater systems, and cooling water circuits.
Water & Wastewater Treatment
Desalination plants, industrial effluent processing, and high-volume fluid distribution.
LNG & Cryogenic Systems
Suitable for low-temperature pipeline systems requiring reliable sealing and stable flow control performance.
Technical FAQ for Procurement & Engineers
How does a globe valve differ from a gate valve in pipeline applications?
While both are isolation valves, globe valves are specifically engineered for flow regulation and throttling, featuring a higher pressure drop due to the S-shaped fluid path. Gate valves are designed for fully open or fully closed isolation with minimal pressure drop and should not be used for throttling to avoid seat erosion.
Why is the OS&Y (Outside Screw & Yoke) design critical for chemical pipelines?
The OS&Y design isolates the stem threads from the process medium. In corrosive chemical or high-temperature environments, this prevents fluid from degrading stem lubrication or corroding the threads, significantly increasing operational lifespan and ensuring plant safety.
What testing and certification accompany Shaanxi Gold-Stone globe valves?
Every valve undergoes rigorous hydraulic and pneumatic pressure testing compliant with API 598 standards before shipment. Full material traceability certificates (MTRs) matching EN 10204 3.1 standards are available upon request.
Can these stainless steel globe valves be automated?
Yes. Standard configurations use ergonomic handwheels, while customized ISO 5211 mounting platforms are available for bevel gear operators, pneumatic actuators, or electric actuators for remote automated flow control.
About the Global Supplier
SHAANXI GOLD-STONE I/E CO., LTD. is a premier global supplier of heavy-duty industrial valves and fluid control solutions. Leveraging advanced metallurgy, precision manufacturing, and strict quality control systems, we deliver durable, corrosion-resistant valve technologies that optimize pipeline efficiency worldwide.
Contact our engineering team today for custom CAD drawings, material consultation, or direct project RFQs.
