Help CenterStage Lighting Color Mixing Rgbw, 48mm in Diameter, Equipped With Xml Four-color Led Beads, 8-degree Led Lens Customization
Related Products
-
Led Large Panel Therapy Light With Red, Yellow and Blue Lights, 16mm in Diameter, 40-degree Special Led LensUS$ 0.04 - 0.04MOQ: 1 Piece -
Supply of 27mm Diameter, 30-degree, Bead Surface Mixed-color Rgb Four-color Led Lamp Beads With LensNegotiableMOQ: 0 Piece
-
Led Long-distance Searchlight, Sea-sweeping Light, Aviation Searchlight, 3° Beam Angle LensNegotiableMOQ: 0 Set
-
35mm Diameter Marine Remote-controlled Searchlight, Led Lens for SearchlightNegotiableMOQ: 0 Piece
-
Supply of Infrared Laser Lenses With a Diameter of 23mm, Sensor Lens Lenses, Telescope Lenses, and Imaging Optical LensesNegotiableMOQ: 0 Piece
Product Model:
Brand: Yunke
Model: YK-4808F-XML
Diameter: 48.0mm
Height: 29.04mm
Aperture: 14.2mm
Angle: 8 degrees
Material: Lens PMMA
Temperature Resistance: -40deg+120deg
Matching LED: CREE-XML Four-color Lamp Beads

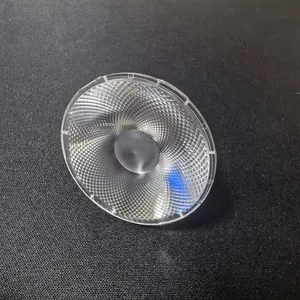

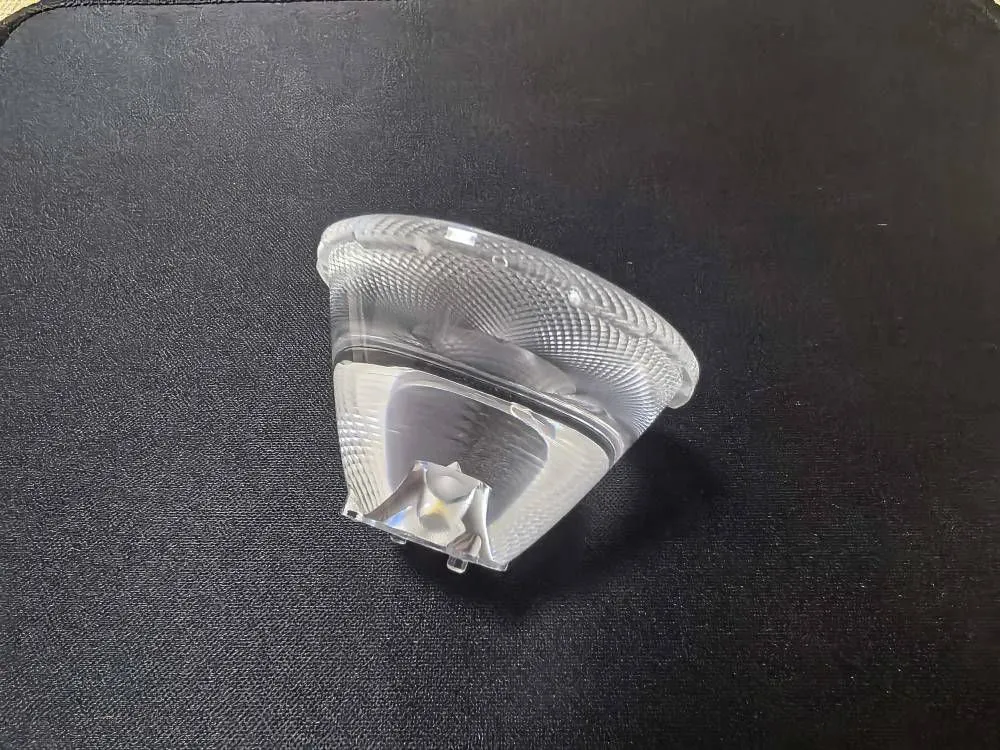

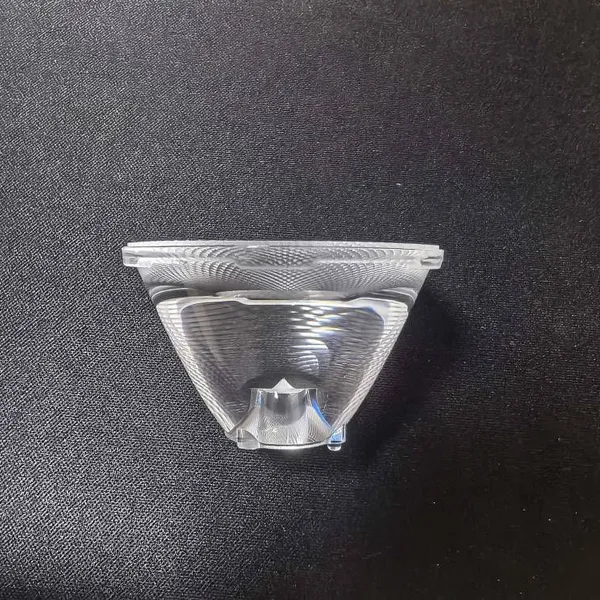

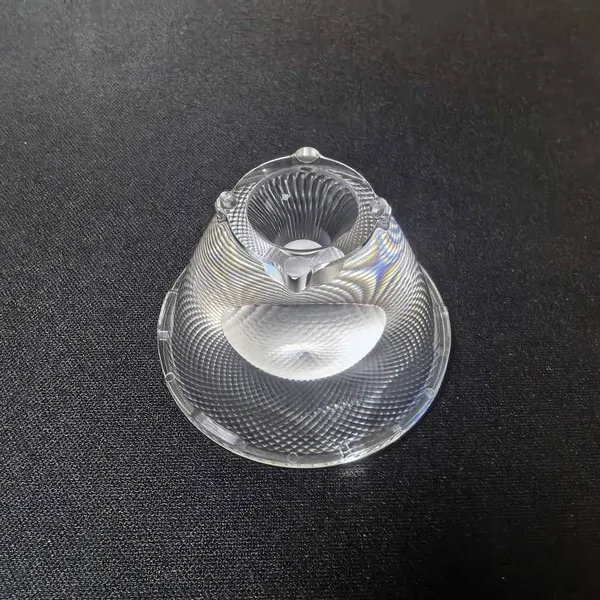

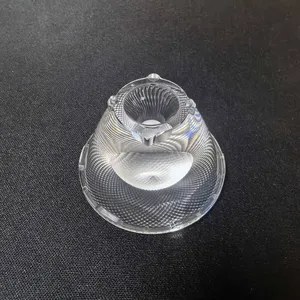

Product Image:

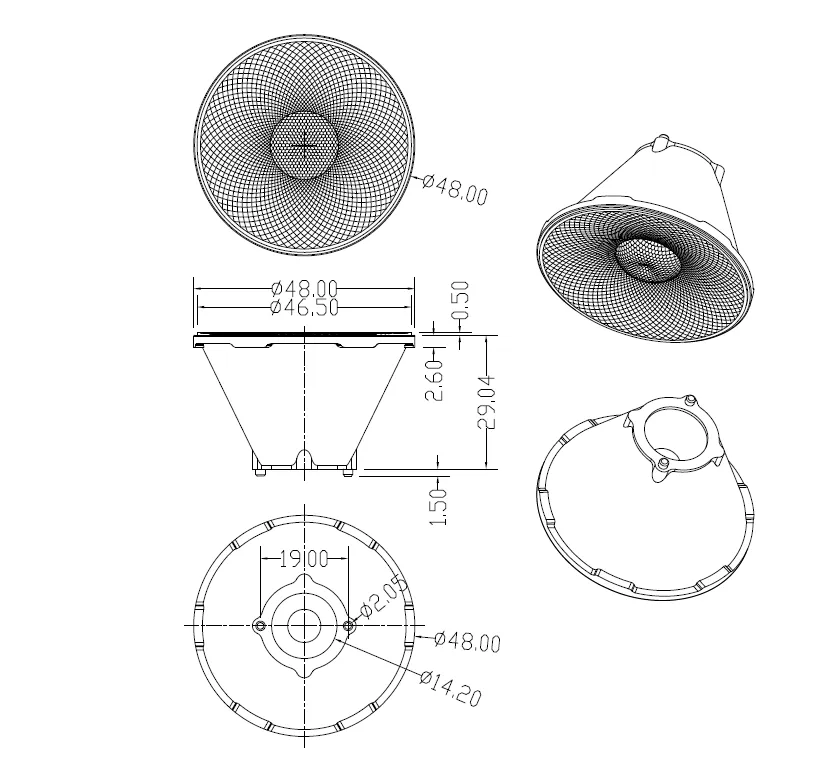

Product Dimensions:
Product Introduction:
LED light source lenses are mainly used for light focusing and guiding in LED cold light source lighting series products. LED light source lenses are aspherical optical lenses designed to design light distribution curves according to the exit angles of different LED light sources. They are designed to increase optical refraction and reflection, reduce light loss, and improve the light efficiency of lighting.
Company Introduction:
Dongguan Yunke Optoelectronics Technology Co., Ltd. is a technology-based company specializing in the R & D, design, mold manufacturing, and production of injection-molded LED optical lenses. With technology as its foundation, since its establishment in 2018, R & D and innovation have been the core work and development driving force of our company. We take it as our responsibility to solve the problems faced by customers in the optical application of lighting fixtures, and provide cooperation in designing and manufacturing LED lighting optical lenses with high light efficiency, beautiful appearance, and novel structure. Our advantage is that we have a deep understanding of the optical requirements of lighting fixtures in various lighting environments and can provide professional customized solutions for LED optical lenses.
Contact Information:
Contact Person: Mr. Ouyang
Mobile Phone: 13925598270 (WeChat available)
Telephone: 0769-82926241 (08:00~20:00)
Fax: 0769-82926241 (08:00~20:00)
Product Customization:
The customization of LED lighting optical lenses can provide more precise and efficient lighting solutions according to specific needs. Its core advantages are mainly reflected in the following aspects:
1. Precise matching of application scenarios;
2. In-depth optimization of performance indicators;
3. Maximization of economic benefits;
4. Construction of differential advantages;
5. Flexible adjustment of technical parameters;
6. Solutions for special requirements;
After-sales service:
1. Logistics and distribution: All sold products are arranged to be delivered by express or logistics within 3 days to reach the destination;
2. Payment method: Goods will be shipped after payment is received;
3. Return and exchange policy: If there are any quality problems with the sold products before the customer uses them after receiving the goods, the seller is responsible for returns and exchanges and bears the relevant freight;
4. Invoice system: All sold products are tax-excluded. If you need to issue an invoice with tax, please contact our company's customer service to arrange the invoice uniformly;
