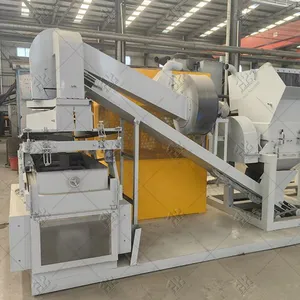

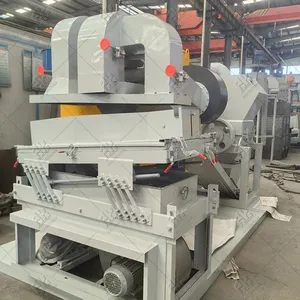

Help CenterDust-free Rotor Copper Wire Separating Machine Rotor Wire Recycling Sorting Machine
Product Spotlights
Related Products
-
High Tech Copper Wire Separator Waste Copper Wire Granulating MachineUS$ 9800 - 14500MOQ: 1 Set -
Scrap Cable Wire Granulator Stripping Machine Copper Wire Recycling MachineUS$ 9800 - 14500MOQ: 1 Set
-
Telephone Wire Recycling Machine Tiny Copper Wire Recycling MachineUS$ 9800 - 14500MOQ: 1 Set
-
Copper Wire Crushing Separating Machine Waste Car Wire Recycling MachineUS$ 9800 - 14500MOQ: 1 Set
-
Telephone Wire Recycling Equipment Copper Wiring Harness Recycling MachineUS$ 9800 - 14500MOQ: 1 Set

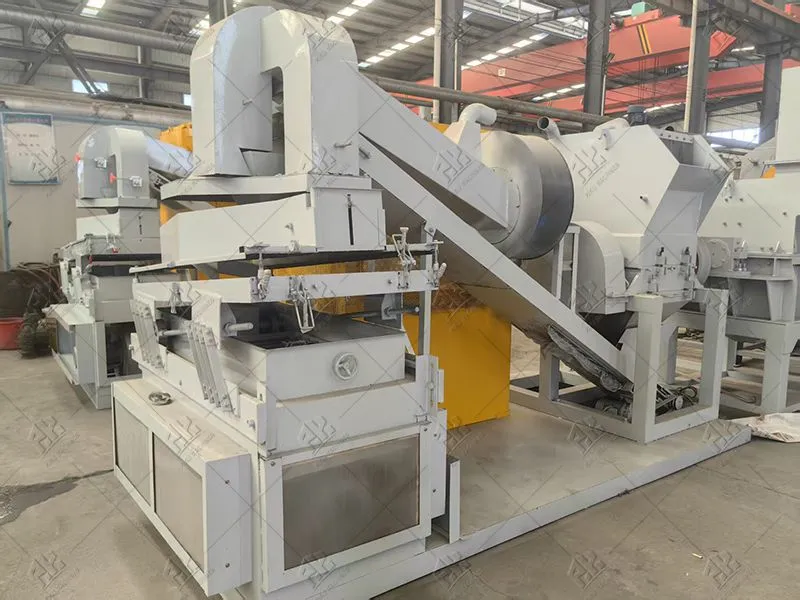

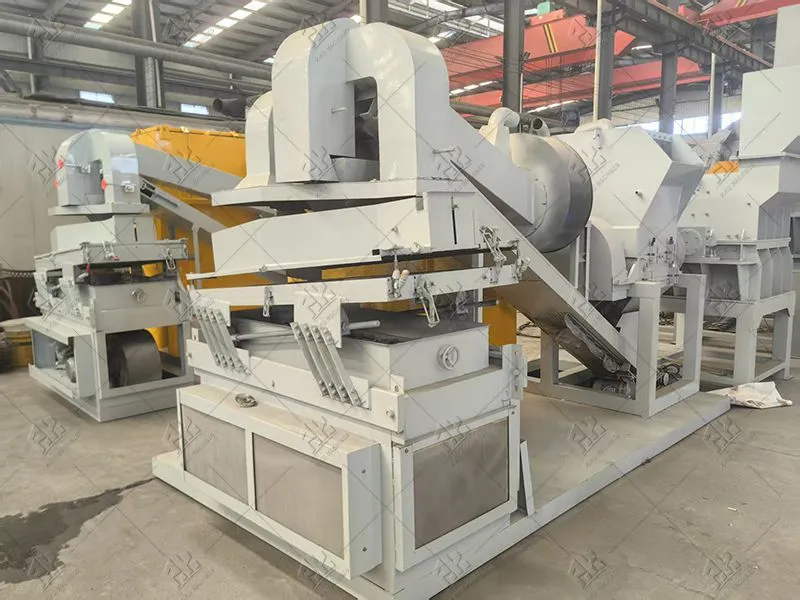

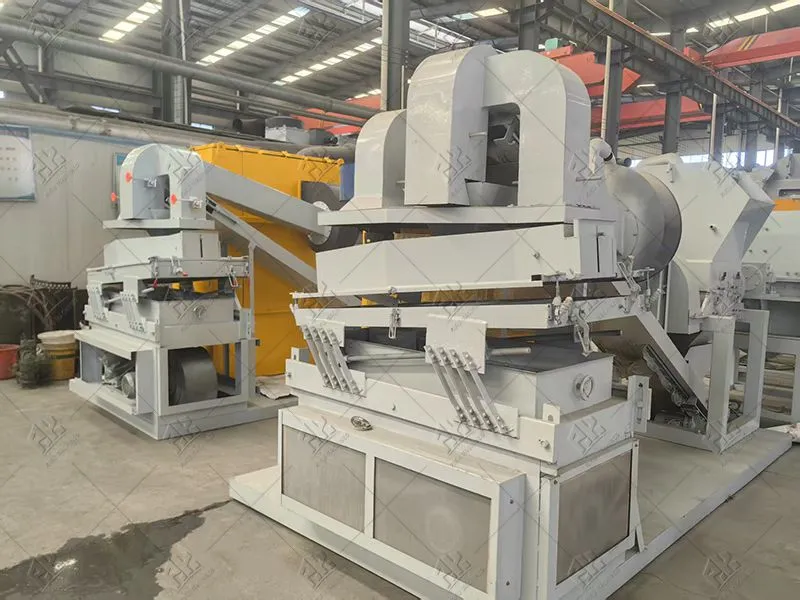

Copper wire recycling machine is also named copper cable wire granulator for different kinds of the cable wires, such as the copper cable, communication cable wire, telephone wire, headphone wire,domestic wire ,Car wire,tinny wire etc to get the pure copper from plastic.The whole system takes the physical dry method, the ferrous metal recycling rate is surpass 98%.

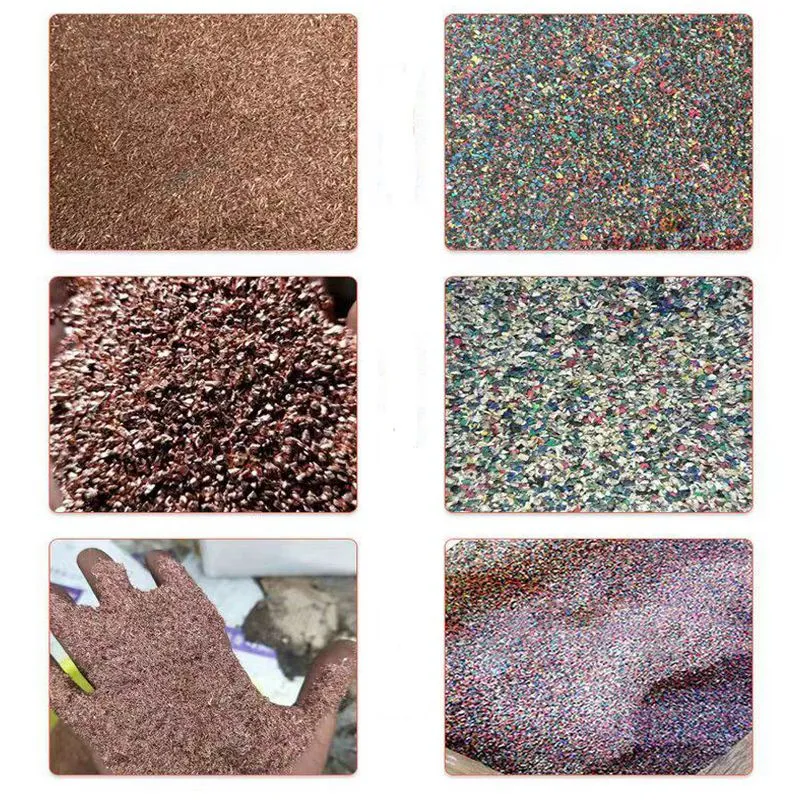

A Copper Wire Granulator, commonly known as a "Copper Rice Machine," is an advanced environmental protection device designed for recycling scrap wires and cables. It processes various types of waste communication wires, automotive harnesses, and household appliance wiring to separate pure copper from plastic insulation. The final product resembles rice grains, hence the name "Copper Rice."
Applications
Ideal for recycling:
-
Household Wires
-
Communication Cables
-
Automotive Harnesses
-
Computer Wires
2. Working Principle
The machine typically operates through a dry physical separation process:
-

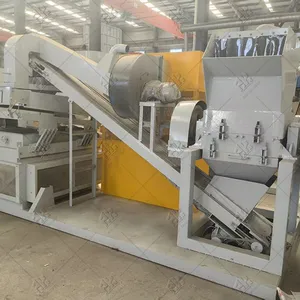

Crushing: Scrap cables are crushed into small particles by a crusher.
-
Air Separation: The mixture of copper and plastic is separated by gravity using airflow.
-
Electrostatic Separation: For high-purity requirements, an electrostatic separator is used to precisely separate fine copper powder from plastic.
3. Key Features
-
Dry Operation: Utilizes an air-water cooling system with no water pollution.
-
High Purity: Achieves a copper recovery rate of up to 99%.
-

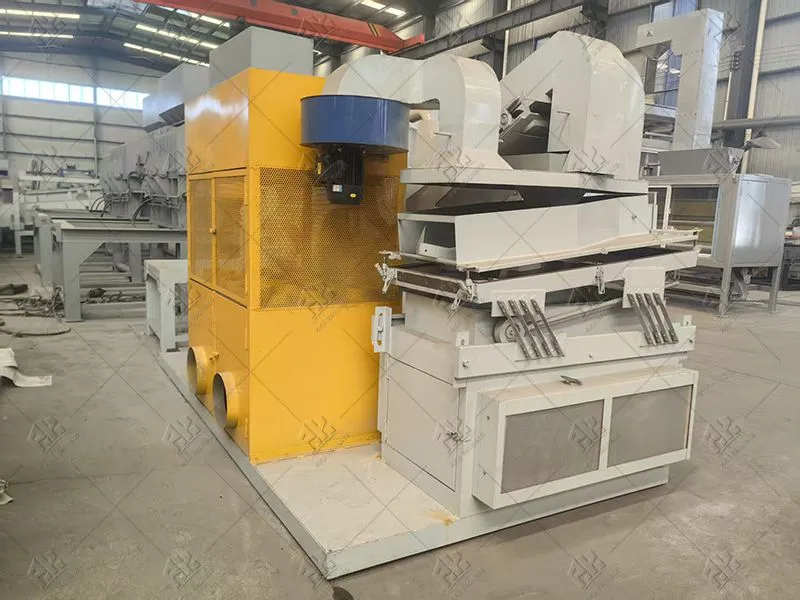

Eco-Friendly: Equipped with a pulse dust removal system to ensure a clean working environment.
-
Wide Application: Suitable for processing wires below 25mm (including miscellaneous cables, communication cables, and automotive wires).
Characters:
Dry method recycling rate is up to 98%.
2. Full autaomtic 1 operator,the whole system controlled by the PLC
3. integrated type , cut off the power and improve the capacity.
4. The separating parts take the gravity separator combined with the electrostatic separator machine.
5. There is equipped with the jet filter bag dust removal
-
6. The cutter of wire chopping machine takes the steel alloy D2 or SKD-11 keeps the long operation and uptime.
Technical parmemeters
| type | capacity | power | dimension | weight |
| RK-300 | 50-80kg/h | 5.75kw | 500*1000*1700mm | 500kgs |
| RK-400 | 100-150kg/h | 18.5kw | 1800*1300*1700mm | 700kgs |
| rk-600 | 200-300kg/h | 45kw | 1800*1300*2000mm | 5500kgs |
| RK-800 | 500-600KG/H | 65KW | 3800*2000*2300MM | 6800KGS |
| RK-1000 | 800-1000kg/h | 95kw | 13800*6000*4800mm | 9800kgs |
