Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection

Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection thumbnail-3

Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection thumbnail-4

Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection thumbnail-5

Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection photo-1

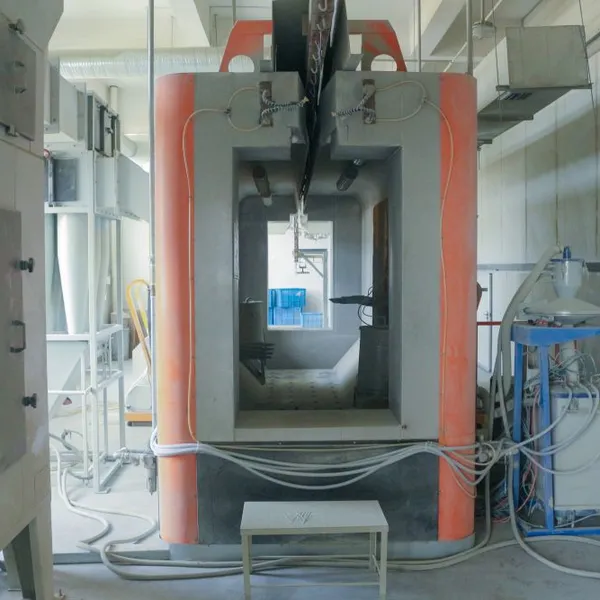

Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection photo-2

Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection photo-3

Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection photo-4

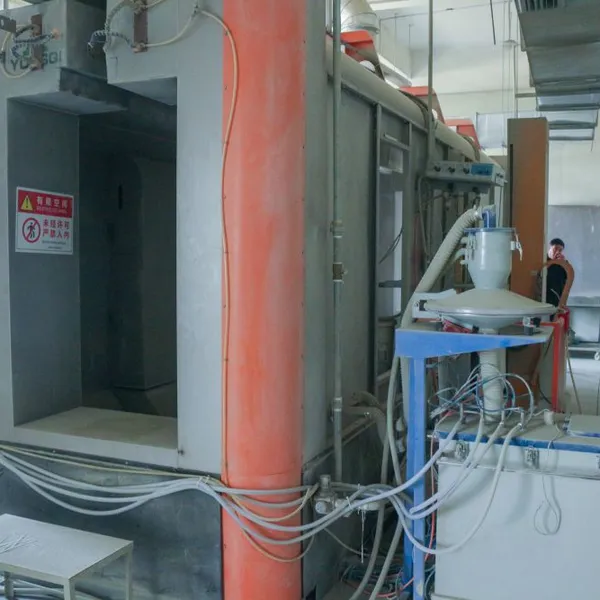

Manual Powder Coating Booth for Metal Fabrication With Cyclone Dust Collection photo-5

Product Spotlights

Manual powder coating booth designed for metal shops, featuring a high-efficiency cyclone dust collector that extends filter life and reduces powder waste. Built with durable powder-coated steel and bright LED lighting for safety and precision. Customizable sizes and options like explosion-proof features available. Enhances finish quality, improves workshop cleanliness, and boosts operator productivity.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Operation Type:

Manual

Application:

Metal Fabrication

Dust Collection System:

Cyclone Type

Contact Supplier Request Quote Chat Now

Deqing Leixin Coating Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Operation Type Manual

Application Metal Fabrication

Dust Collection System Cyclone Type

Booth Material Powder-coated steel

Lighting System LED lighting

Airflow Design Downdraft or crossdraft

Filter Type Cartridge or bag filters

Standard Size Customizable

Optional Features Fire suppression, explosion-proof

As a leading manufacturer with over a decade of experience, Deqing Leixin Coating Equipment Co., Ltd. proudly presents our Manual Powder Coating Booth with Cyclone Dust Collection. Designed specifically for the metal fabrication industry, this booth is engineered to provide a clean, efficient, and controlled environment for applying powder coatings. Our commitment to quality, backed by ISO9001 certification, ensures that every piece of equipment we produce meets stringent standards for durability and performance. We understand the critical need for effective overspray management and operator safety in finishing processes, which is why our booth integrates a robust cyclone dust collection system to maximize powder recovery and maintain a clean workshop.

This manual powder coating booth is a cornerstone for workshops seeking to enhance their finishing capabilities without the complexity of automated systems. Its core value lies in delivering a reliable, user-friendly solution that improves finish quality, reduces material waste, and protects operator health. By choosing our equipment, you are investing in a product from a company with a solid export track record, serving diverse global markets from North America to Southeast Asia.

Key Features and Technical Advantages:

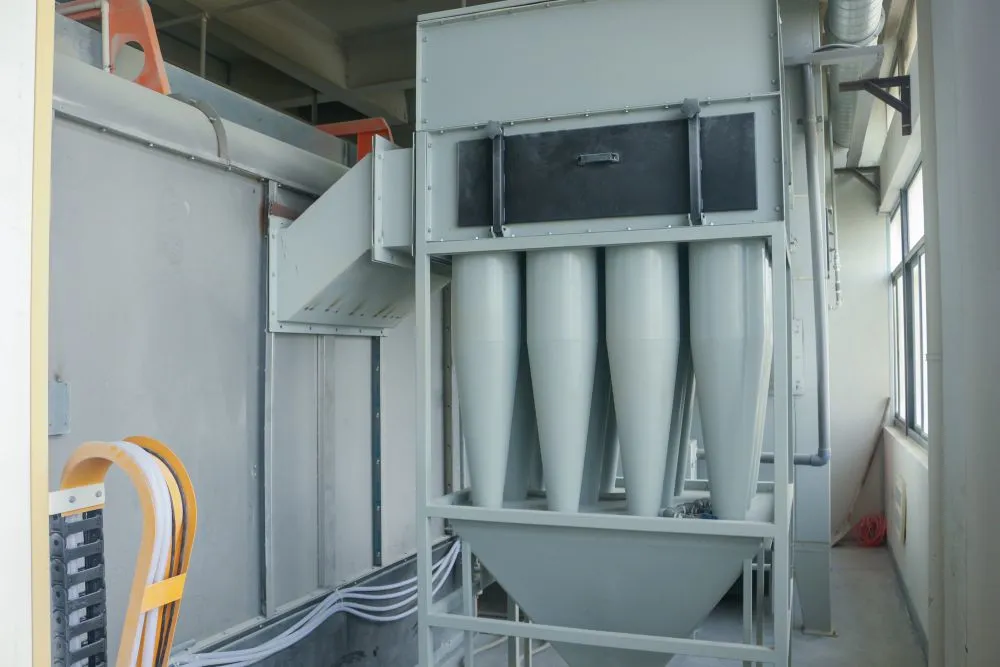

Superior Dust & Overspray Collection: The integrated cyclone separator is the heart of this system. It uses centrifugal force to efficiently separate heavier powder particles from the air stream before they reach the final filters. This significantly extends filter life, reduces maintenance frequency, and improves overall collection efficiency.
Optimized Airflow Design: The booth features a carefully engineered airflow pattern (typically downdraft or crossdraft) that effectively captures overspray at the source, preventing it from escaping into the workshop. This creates a cleaner working environment and ensures a more consistent coating application.
Durable Construction: Built from high-quality, powder-coated steel panels, the booth is designed to withstand the rigors of an industrial setting. The smooth, non-porous interior surfaces are easy to clean and help prevent powder buildup.
Enhanced Visibility & Safety: Equipped with bright, energy-efficient LED lighting, the booth provides excellent illumination for precise coating work. Safety features can include explosion-proof lighting and electrical components (upon request), which are crucial for environments with combustible powder.
Customizable Configuration: We understand that every workshop has unique space and workflow requirements. Therefore, our booths are available in various standard sizes and can be customized. Optional features include:
- Fire suppression systems
- Explosion-proof certification for components
- Different filter types (cartridge or bag)
- Additional access doors or service panels
- Powder recovery system integration

Technical Specifications Table:

Parameter	Typical Specification / Options
Operation Mode	Manual (Operator inside or outside booth)
Primary Application	Metal parts finishing, fabrication shops
Dust Collection Type	Cyclone with secondary filtration
Airflow Velocity	Adjustable, typically 0.5 - 1.0 m/s at booth face
Construction Material	Powder-coated steel, stainless steel options available
Lighting	Sealed LED light fixtures
Filter Efficiency	High-efficiency final filters (99%+ on fine particles)
Power Requirements	Customizable based on fan and lighting configuration
Booth Dimensions (LxWxH)	Fully customizable; common sizes start from 2m x 2m x 2m

Benefits for Your Business:

Increased Productivity: A clean, well-lit workspace allows operators to work more efficiently and with greater precision, leading to higher throughput.
Cost Savings: The cyclone system reduces powder waste by recovering overspray, lowering material costs. Extended filter life also reduces maintenance expenses.
Improved Coating Quality: Controlled airflow minimizes contamination, resulting in smoother, more uniform finishes with fewer defects.
Regulatory & Safety Compliance: Helps meet workplace air quality and safety standards by effectively containing powder particulates.
Operator Health & Morale: A cleaner environment reduces operator exposure to airborne particles, contributing to a healthier and safer workplace.

Trust in a manufacturer with a proven history. Since 2011, Deqing Leixin has grown to occupy a significant factory space and employs a dedicated team, enabling us to maintain strict quality control from production to export. Our annual export value reflects the trust placed in us by clients across continents, from Eastern Europe to Oceania. Shipping from major ports like Ningbo and Shanghai ensures reliable and efficient logistics. This manual powder coating booth embodies our expertise—it’s not just a piece of equipment; it’s a productivity and quality enhancement tool designed for the real-world demands of metal fabrication. Contact us today to discuss how this robust, efficient booth can be tailored to fit your specific operation and help you achieve superior finishing results.

Frequently Asked Questions (FAQ):

Q: What is the main advantage of a cyclone dust collector in a powder coating booth?
A: The primary advantage is pre-separation. The cyclone removes the bulk of the heavier powder overspray before the air reaches the finer final filters. This drastically reduces the load on these filters, extending their service life, lowering replacement costs, and maintaining high airflow efficiency for longer periods.
Q: Can an operator work inside this manual booth?
A: Yes, many of our manual booth designs are sized to allow an operator to work inside. They are equipped with proper lighting, ventilation, and safety features to ensure a safe working environment. The configuration (internal or external operator position) can often be customized based on your workflow.
Q: How often do the filters need to be replaced or cleaned?
A: Frequency depends on usage volume. The cyclone significantly reduces the burden on the final filters. Typically, primary collection in the cyclone requires periodic emptying, while the secondary filters may need cleaning/replacement less frequently—often ranging from several months to over a year of regular use. We provide specific maintenance guidelines.
Q: Is this booth suitable for all types of powder coatings?
A: Yes, it is designed to handle standard thermosetting powder coatings commonly used in metal fabrication. For special powders or if explosion-proof requirements are needed, we offer optional configurations (like explosion-proof components) that should be specified at the time of inquiry.
Q: What kind of maintenance does the cyclone system itself require?
A: The cyclone is a mechanical separator with no moving parts, making it very low maintenance. The main task is periodically discharging the collected powder from the collection drum or hopper at the bottom. The interior should be inspected occasionally for any buildup.
Q: Can the booth be expanded or modified later if our needs change?
A: Due to its modular design philosophy, our booths often allow for future modifications. Adding sections, changing door configurations, or upgrading the filtration system can be possible. It is best to discuss potential future needs during the initial design phase for optimal planning.
Q: What is the typical lead time for a custom-sized booth?
A: Lead times vary based on the complexity of customization and current production schedule. Generally, for a standard custom order, lead times can range from 4 to 8 weeks after final confirmation of specifications. We provide accurate timelines during the quotation process.
Q: Do you provide installation guidance or technical support?
A: Yes, we provide detailed installation manuals, layout drawings, and technical specifications. Remote support is available for setup and troubleshooting. On-site installation supervision can be arranged as an optional service.
