Product Description:

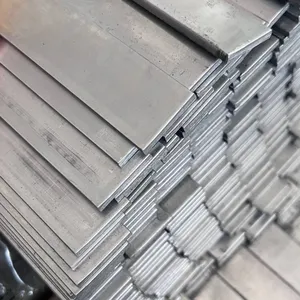

Stainless Steel Flat Bar – Versatile Rectangular Bar for Structural & Decorative Applications
Stainless steel flat bars are long, rectangular cross-section bars manufactured from stainless steel billets through hot rolling or cold drawing processes. They combine high strength, excellent corrosion resistance, and good formability, making them ideal for structural supports, frames, brackets, and architectural trim.
ASTM A276 is the primary standard covering hot-finished or cold-finished stainless steel flat bars for general structural and mechanical applications. ASTM A479 is specified for pressure vessel and heat exchanger applications. ASTM A484 governs dimensional tolerances.
Typical applications include:
Construction & architecture: Handrails, balustrades, curtain wall framing, door frames, window trim
Industrial equipment: Machine frames, conveyor supports, tank stiffeners, grating supports
Food processing: Equipment frames, sanitary supports, work tables
Marine: Dock hardware, boat trailers, railings
Automotive: Truck bed rails, trailer frames
General fabrication: Brackets, gussets, base plates, repair sections
Key Product Specifications (Stainless Steel Bar)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A276, A479, EN 10088-3, JIS G4303 |
Others on request |
Grades |
304, 304L, 316L, 316Ti, 321, 310S, 2205, 904L |
Duplex & super austenitic available |
Product Forms |
Round, square, flat, hexagonal |
Angle & channel also available |
Size Range (Round) |
Diameter: 6 mm – 300 mm |
– |
Size Range (Flat) |
Thickness: 3–50 mm; Width: 10–200 mm |
– |
Size Range (Hex) |
Across flats: 8 mm – 100 mm |
– |
Length |
3m / 6m / 12m, or custom cut |
– |
Surface Finish |
Black, bright drawn, peeled, ground, polished |
– |
Tolerances |
Per ASTM A484 |
Precision tolerance available |
Testing |
PMI, Tensile, Hardness, UT (optional) |
Mill cert provided |
Packaging |
Bundled with steel straps, wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
