As a specialized distributor of engineering plastics, Shanghai Yunshan Plasticizing Co., Ltd. is proud to present Toray's CM1011G-20, a premium extrusion-grade Polyamide 6 (PA6) resin. Engineered specifically for demanding extrusion processes, this high-viscosity grade offers manufacturers a reliable solution for producing dimensionally stable and mechanically robust profiles, tubes, and sheets. Its consistent pellet form ensures smooth feeding and stable processing parameters, directly translating to higher production efficiency and reduced waste for your operations.
Core Product Advantages & Technical Specifications
Toray PA6 CM1011G-20 is formulated to excel in extrusion applications where melt strength and dimensional control are critical. Its inherent properties provide a balanced performance profile suitable for a wide range of industrial components.
- Optimized for Extrusion: The high relative viscosity of this grade ensures excellent melt strength, preventing sagging or deformation during the shaping of complex profiles and large-diameter tubes, leading to superior surface finish and dimensional accuracy.
- Enhanced Mechanical Performance: It delivers a strong combination of toughness, stiffness, and abrasion resistance, making finished products durable under mechanical stress and wear.
- Good Chemical Resistance: Offers resistance to many oils, greases, and hydrocarbons, broadening its application scope in automotive and industrial environments.
- Process Stability: The consistent pellet size and shape from Toray's advanced polymerization ensure stable melt flow, minimizing pressure fluctuations and promoting uniform output, which is vital for long production runs.
Below is a summary of key typical properties for CM1011G-20:
| Property | Test Method | Typical Value | Unit |
|---|---|---|---|
| Density | ISO 1183 | 1.14 | g/cm³ |
| Melting Point | ISO 11357 | 220 | °C |
| Tensile Strength (Yield) | ISO 527 | 80 | MPa |
| Flexural Modulus | ISO 178 | 3000 | MPa |
| Izod Impact Notched (23°C) | ISO 180 | 5 | kJ/m² |
Benefits for Your Production:
- Reduced Rejects: Excellent dimensional stability minimizes warpage and shrinkage, yielding more in-spec parts per batch.
- Extended Equipment Life: Consistent melt behavior reduces wear on screws and barrels.
- Design Flexibility: Enables the production of complex cross-sectional profiles with good detail retention.
- Material Reliability: Sourced from Toray, a globally recognized polymer producer, ensuring batch-to-batch consistency and traceability.
Shanghai Yunshan Plasticizing Co., Ltd., based in the industrial hub of Shanghai, provides reliable access to this high-performance material. Our role as a dedicated supplier means we understand the critical link between raw material quality and your final product's performance. By choosing Toray CM1011G-20 through us, you are not just purchasing resin pellets; you are investing in process stability, product quality, and the backing of a reputable supply chain. This combination directly supports your goals for manufacturing excellence and market competitiveness. We encourage you to contact us for technical data sheets, pricing, or to discuss how this extrusion-grade PA6 can be optimized for your specific application.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between this extrusion grade and injection molding grades of PA6?
A1: Extrusion grades like CM1011G-20 typically have a higher molecular weight (indicated by higher viscosity), which provides greater melt strength. This prevents the molten polymer from sagging or tearing during the slow draw-down process in extrusion, whereas injection grades have lower viscosity for fast filling of molds.
Q2: Can CM1011G-20 be used for food contact applications?
A2: The standard CM1011G-20 grade is a natural, non-stabilized material primarily for industrial use. For food contact applications, specific food-contact compliant grades from Toray are available upon request. Please inquire for details.
Q3: What are the recommended drying parameters before processing this material?
A3: Polyamide 6 is hygroscopic. It is strongly recommended to dry the pellets at 80-90°C for 4-6 hours in a dehumidifying dryer to achieve a moisture content below 0.1% before extrusion to prevent hydrolysis and surface defects.
Q4: Is this material suitable for outdoor applications?
A4: Standard PA6 has limited resistance to UV radiation and weathering. For outdoor use, adding UV stabilizers or using pre-compounded UV-stabilized grades is necessary. We can assist in sourcing suitable stabilized compounds.
Q5: What is the typical lead time for this product?
A5: Lead times can vary based on stock levels and order quantity. As a distributor in Shanghai with established logistics, we generally aim for efficient delivery. Please contact us with your quantity requirements for an accurate timeline.
Q6: Can colors or additives be incorporated into this base resin?
A6: Absolutely. The natural pellets are ideal for masterbatch coloring or compounding with additives like glass fibers, minerals, or flame retardants. We can provide guidance or connect you with compounding services.
Q7: What is the packaging format for this product?

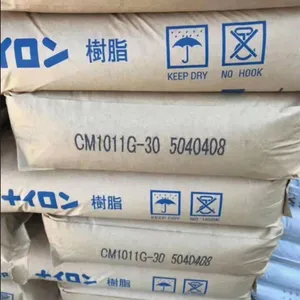

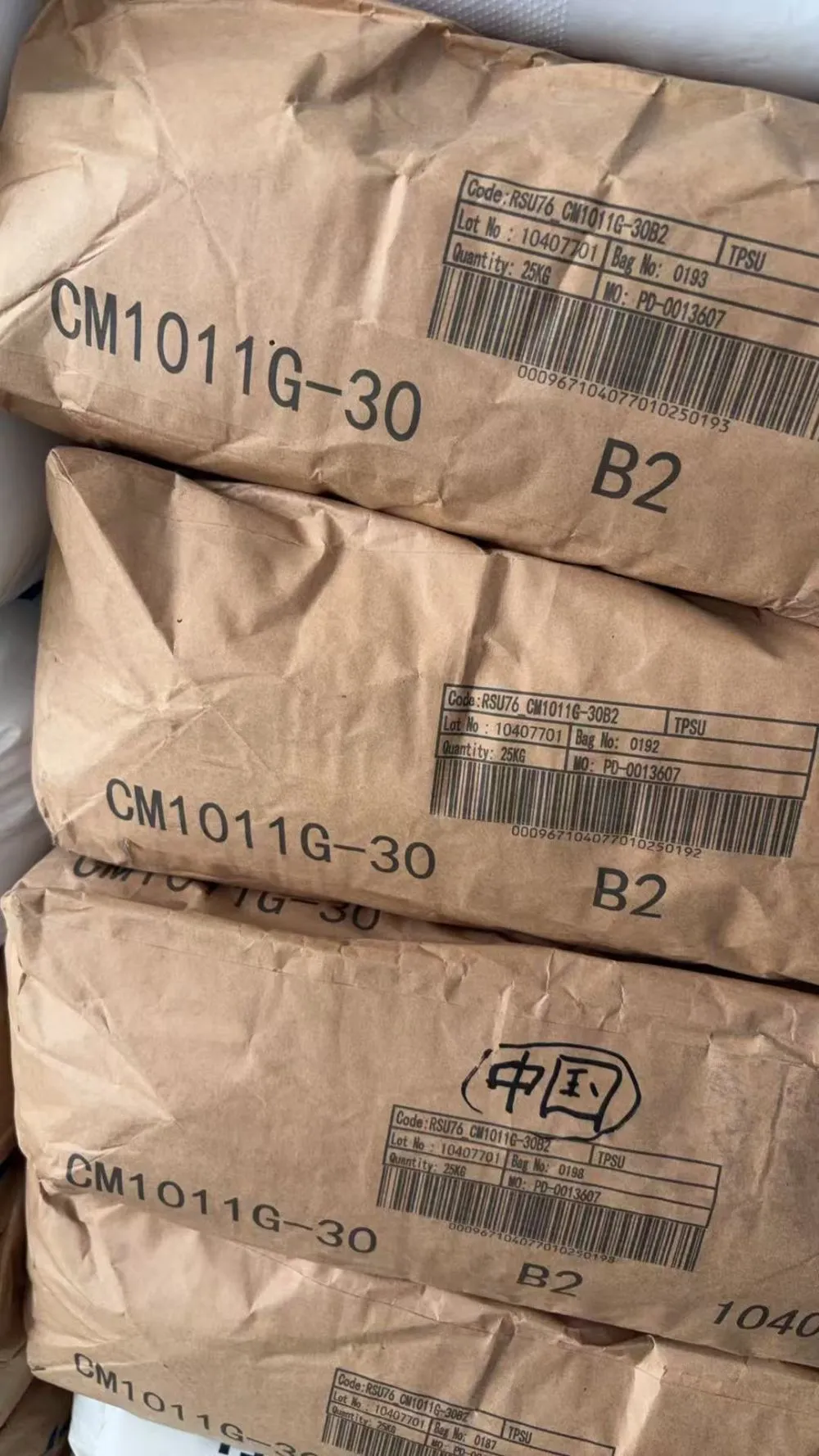

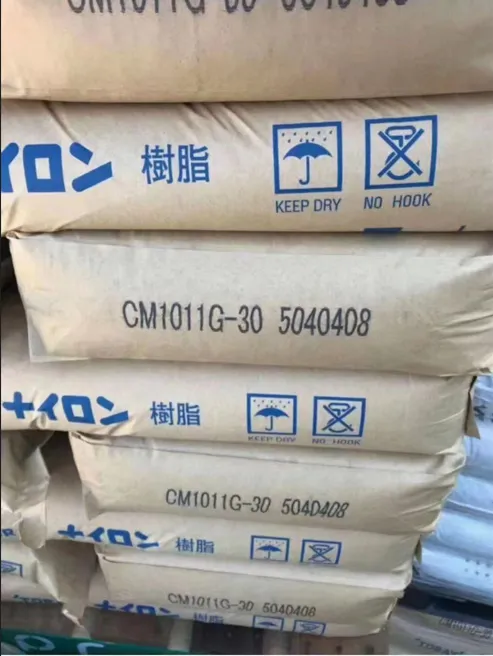

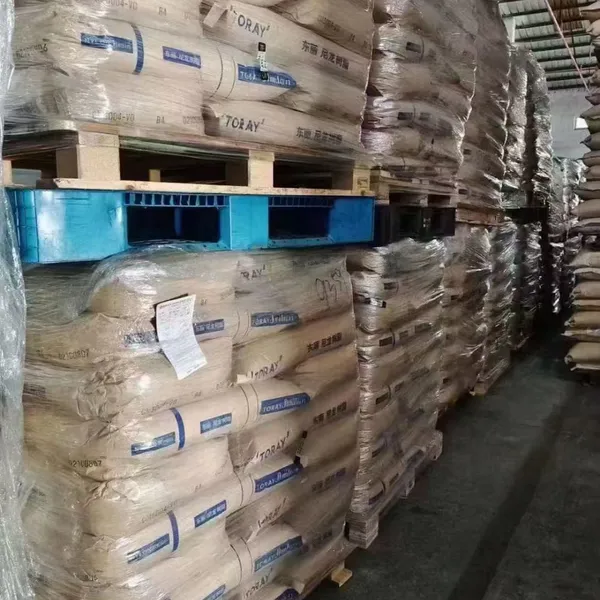

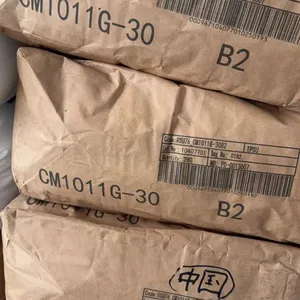

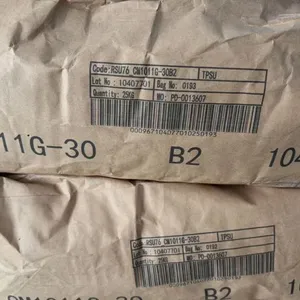

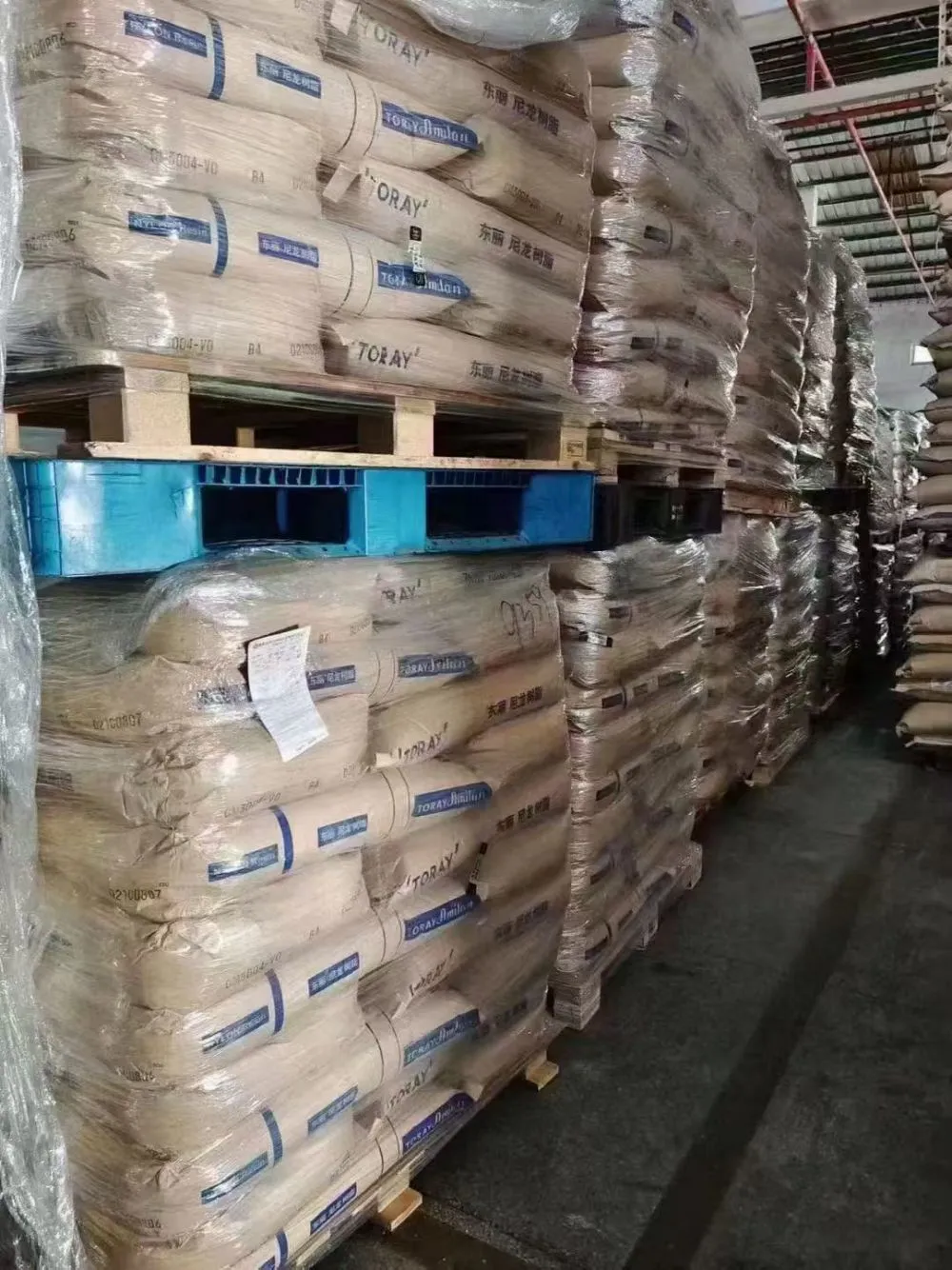

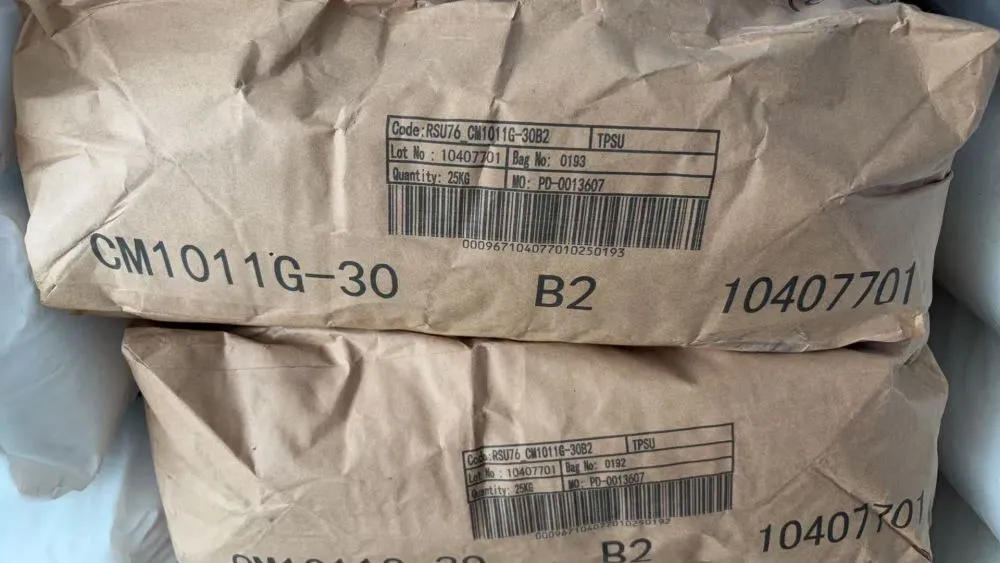

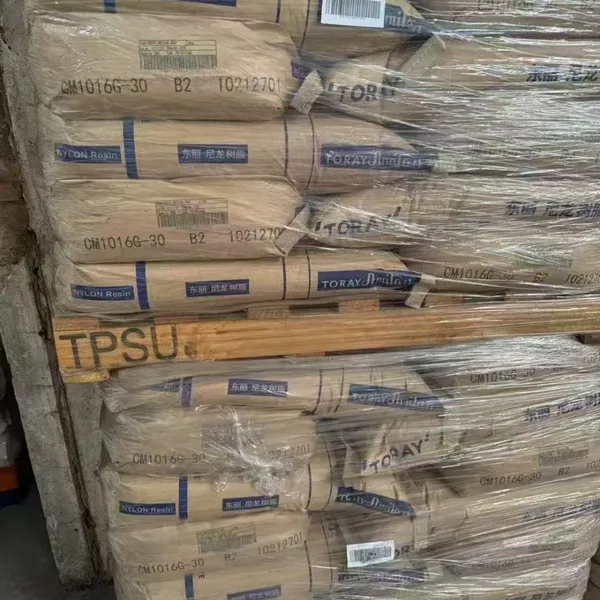

A7: It is typically supplied in 25 kg net weight polyethylene bags on pallets. Alternative packaging options may be available for larger orders.
Q8: Do you provide technical support for processing parameters?
A8: Yes. While specific machine settings depend on your equipment and product design, we can provide general processing guidelines for extrusion (temperature profiles, screw design recommendations) based on Toray's data to help you get started.
