As a specialized manufacturer of coating equipment since 2011, Deqing Leixin Coating Equipment Co., Ltd. is proud to offer our Customizable Powder Coating Line. Engineered for precision and flexibility, this system is the ideal solution for businesses seeking high-quality, durable finishes on a diverse range of small workpieces. Our decade of experience and ISO9001-certified manufacturing processes ensure that each line is built to deliver consistent results, reduce operational costs, and adapt seamlessly to your specific production needs, whether you serve the domestic market or export globally.
This powder coating line is designed from the ground up for adaptability. Its core strength lies in accommodating various small workpiece dimensions and batch sizes without compromising on finish quality or throughput. Below are the key features and benefits that set our system apart:
- Fully Modular Design: The line comprises distinct, interoperable modules for pretreatment, drying, coating, and curing. You can select and configure only the components you need, allowing for a tailored solution that fits your current space and budget, with the option to expand later.
- Precision Coating for Small Parts: The system features specialized electrostatic guns and recovery booths optimized for small, intricate, or high-density workpiece loads. This ensures uniform powder application, minimizes overspray, and maximizes powder utilization rates.
- Intelligent Control & Monitoring: A centralized PLC control panel manages the entire process. Operators can easily adjust parameters like conveyor speed, oven temperature, and gun settings for different products, ensuring repeatable quality and simplifying changeovers.

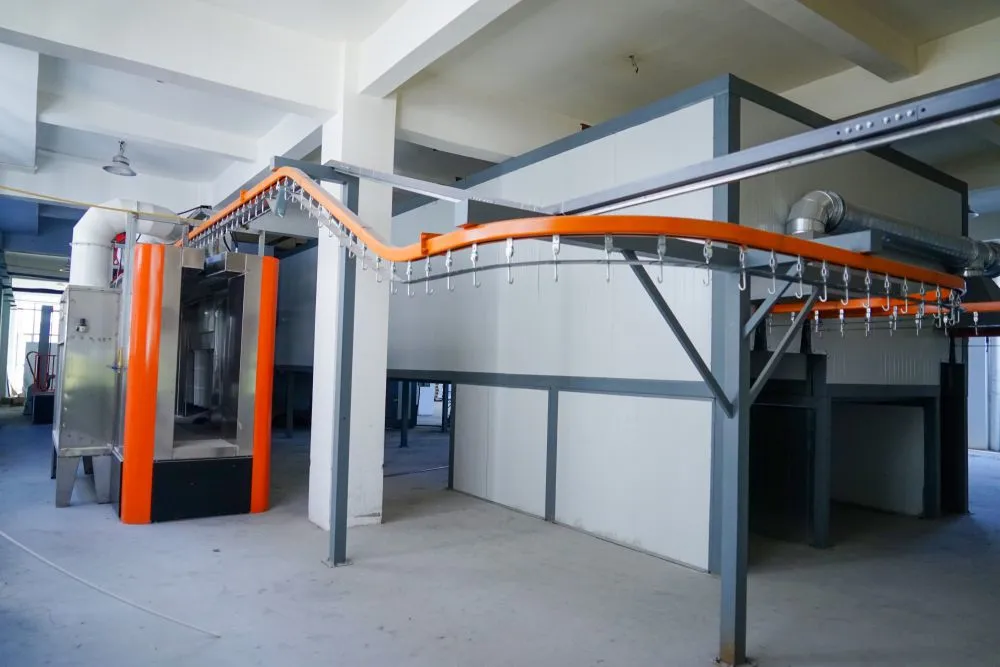

- Space-Efficient Layout: Understanding that factory space is valuable, our engineers design compact and efficient layouts. The conveyor system (overhead or mesh belt) can be configured in a straight-line, U-shape, or multi-level arrangement to optimize your floor plan.
Here is a summary of typical technical specifications. Please note that all parameters are customizable based on your requirements.
| Parameter | Description / Options |
| Typical Workpiece Size Range | Customizable; ideal for parts from 50mm to 800mm in length/width |
| Conveyor Speed | Variable, typically 0.5 - 4.0 meters per minute |
| Curing Oven Type | Electric heating or gas-fired infrared, customizable |

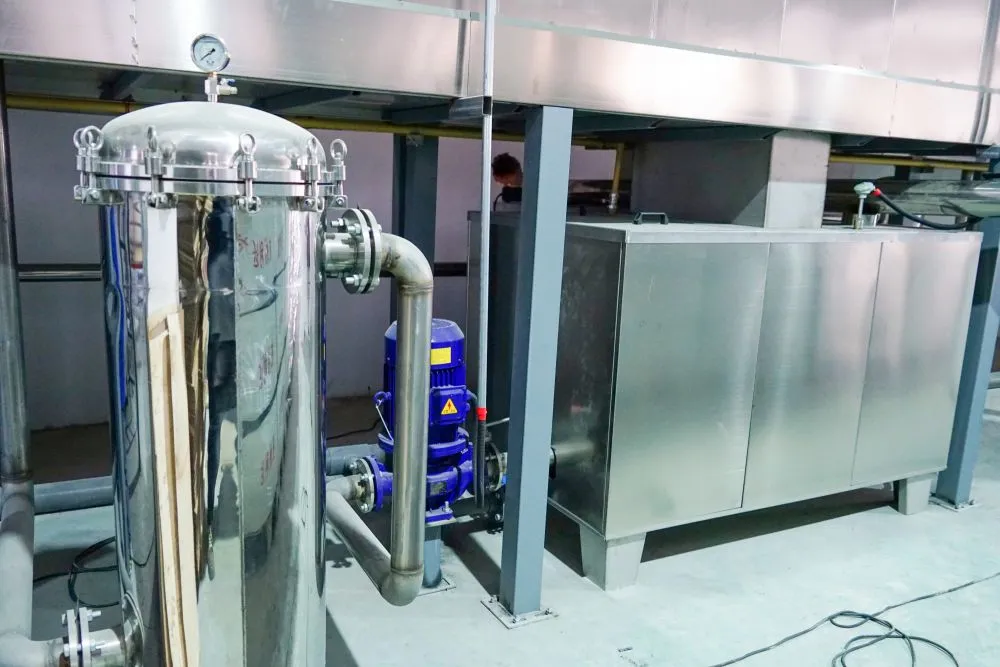

| Pretreatment Stage | Optional 3 to 5-stage spray washer (cleaning, phosphating, etc.) |

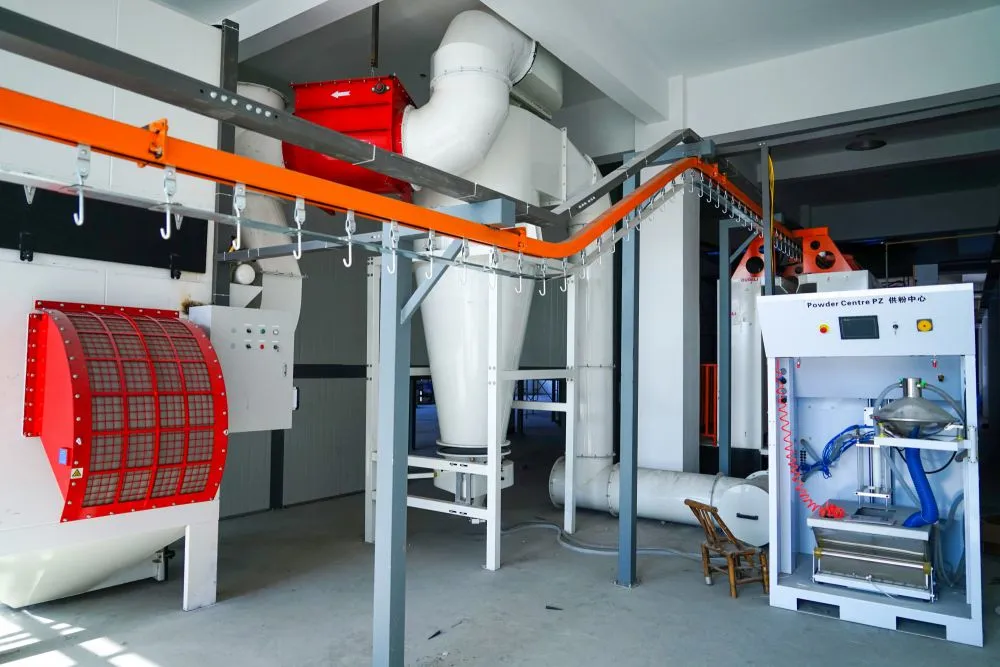

| Powder Recovery System | High-efficiency cyclone or cartridge filter recovery (>95%) |
| Overall Power Requirement | Depends on configuration; details provided upon request |
The advantages of implementing our customizable powder coating line translate directly into operational benefits for your business:
- Enhanced Product Quality: Achieve a uniform, durable, and corrosion-resistant finish that enhances the value and lifespan of your small workpieces.
- Reduced Material Waste: Advanced powder recovery technology significantly reduces powder consumption, lowering your material costs.
- Increased Production Flexibility: Quickly switch between different small product batches with minimal downtime, responding faster to market demands.
- Improved Operational Safety & Environment: The closed-loop powder application system contains particulates, creating a cleaner and safer work environment compared to liquid painting.
Backed by over a decade of manufacturing expertise and an ISO9001 quality management system, Deqing Leixin delivers reliable industrial equipment. Our 1,000-3,000 sq. meter facility and team of 51-100 skilled professionals enable us to control every aspect of production, from design to assembly. With an annual export value of US$1-1.5 Million and a strong presence in markets from Southeast Asia to Central America, we understand the diverse needs of global manufacturers. Choosing our customizable powder coating line means investing in a scalable, efficient, and high-performance system designed to grow with your business. Contact us today to discuss your specific workpiece requirements and receive a tailored solution proposal.
Frequently Asked Questions (FAQ)
Q1: What exactly can be customized in this powder coating line?
A: Almost every aspect can be tailored. This includes the conveyor type and length, the size and heating method of the curing oven, the inclusion and stages of a pretreatment system, the number and type of powder guns, and the overall layout to fit your available factory space.
Q2: Is this line suitable for coating very small or intricate parts, like fasteners or electronic components?
A: Yes, absolutely. The system can be configured with specialized electrostatic guns and fine-tuned booth airflow to ensure powder reaches all crevices and provides an even coat on small, dense loads of parts.
Q3: How long does it typically take from order confirmation to installation?
A: The lead time depends on the complexity of the customization. For standard modular configurations, production and delivery often take 8-12 weeks. A detailed timeline will be provided with your formal quotation.
Q4: Do you provide installation, training, and after-sales support?
A: Yes, we offer comprehensive services. Our engineers can supervise installation and provide on-site operator training. We also supply technical manuals and offer remote support, with spare parts available upon request.
Q5: What is the expected powder utilization rate with your recovery system?
A: Our high-efficiency powder recovery systems (cyclone or cartridge filter) typically achieve rates above 95%, meaning over 95% of the sprayed powder is reclaimed and reused, drastically reducing waste.
Q6: Can the line handle a mix of different small workpiece sizes in one batch?
A: While possible, for optimal finish quality and efficiency, we recommend processing similar-sized parts together. The system settings (gun voltage, fluidizing air) can be adjusted between batches for different part geometries.
Q7: What are the main power requirements? Do you offer energy-efficient options?
A: Power requirements vary greatly with oven size and heating method (electric vs. gas). We can design the system with energy efficiency in mind, for example, by using well-insulated ovens or offering gas infrared heaters which can be more efficient for certain applications.
Q8: We have limited floor space. Can you design a compact line?
A: Space optimization is one of our specialties. We frequently design U-shaped or vertically stacked (multi-level) conveyor layouts to maximize throughput in a minimal footprint. Share your floor plan with us for a feasibility study.
