Hebei Jinlongyu Import And Export Trade Co., Ltd., a prominent manufacturer based in the industrial hub of Hengshui, Hebei, specializes in delivering robust and efficient machinery for the global construction materials sector. Our Professional Steel Panel Welded Wire Mesh Reinforcing Mesh Production Line embodies our commitment to engineering excellence, designed to transform raw steel wire into high-quality, structurally integral welded mesh panels with remarkable speed, precision, and consistency. This automated line is engineered for manufacturers seeking to elevate their production capabilities, reduce operational costs, and supply the demanding markets of construction, infrastructure, and security fencing worldwide.
The core value of this production line lies in its complete integration and automation. It seamlessly combines wire straightening, feeding, precision welding, cutting, and stacking into a single, synchronized process. This eliminates manual handling bottlenecks, ensures uniform product quality, and significantly boosts output. For businesses targeting growth in regions like South America, Southeast Asia, Africa, and Europe—markets where Hebei Jinlongyu has established a strong presence through Tianjin Port—this equipment provides a reliable and scalable production foundation.
Key Features & Technical Advantages:
High-Speed Precision Welding: Utilizes advanced welding technology (typically resistance welding) to create strong, consistent weld points at high speeds, ensuring the mesh meets rigorous reinforcing standards.
Full Automation & PLC Control: The entire process from wire feeding to final stacking is automated via a Programmable Logic Controller (PLC). This allows for easy setup, minimal operator intervention, and precise control over mesh dimensions and weld spacing.
Customizable Output & Mesh Specifications: The line can be configured to produce mesh panels in a wide range of sizes, wire diameters, and grid patterns. Output capacity is scalable to match production demands.
Robust Construction & Durability: Built with high-strength steel frames and industrial-grade components, the machinery is designed for continuous, heavy-duty operation in factory environments.

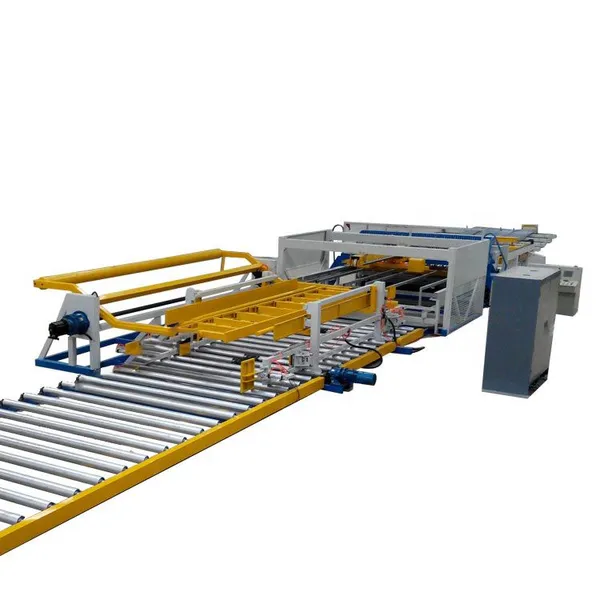

Integrated Cutting & Stacking System: An automatic cutting unit trims the continuous mesh into precise panel lengths, followed by an automated stacking system that organizes finished panels for easy handling and shipment.
User-Friendly Operation & Safety: Features an intuitive control interface and incorporates safety guards and emergency stops, prioritizing operator safety and ease of use.
Technical Specifications Overview:
| Parameter | Typical Range / Description |
| Wire Diameter Range | 3 mm to 12 mm (customizable) |
| Mesh Panel Width | Up to 3.0 meters (standard, wider options available) |
| Mesh Panel Length | Customizable, typically up to 6 meters |
| Welding Speed | Variable, high-speed models available |
| Grid Spacing (Mesh Opening) | 50 mm x 50 mm to 200 mm x 200 mm (standard and custom) |
| Control System | PLC with touch-screen HMI (Human-Machine Interface) |
| Power Requirement | Industrial 3-phase power (specifications provided upon request) |
Benefits for Your Business:
Increased Productivity & Output: Automation dramatically increases production speed and volume compared to semi-automatic or manual lines.
Consistent, High-Quality Product: Automated precision ensures every mesh panel has uniform weld strength and dimensions, enhancing your product reputation.
Reduced Labor Costs & Dependency: Minimizes the need for skilled welders and manual handlers, lowering long-term operational expenses.
Enhanced Operational Safety: Automated handling reduces manual contact with moving wires and welding points.
Scalability & Flexibility: The line can be adapted to produce different mesh types, allowing you to diversify your product offerings for various applications like concrete reinforcement, fencing, and industrial flooring.
Competitive Edge in Global Markets: Equipping your factory with this efficient line enables you to reliably supply large-scale projects and meet the demands of international markets efficiently.
Trust & Reliability Backed by Experience:
Hebei Jinlongyu leverages its strategic location in Hengshui, a key manufacturing region, and its logistics gateway at Tianjin Port to serve a truly global clientele. Our machinery is trusted by manufacturers across South America, Southeast Asia, Africa, Oceania, the Middle East, and Europe, as well as within the domestic Chinese market. This widespread adoption is a testament to the reliability, performance, and value our production lines deliver. Investing in our Professional Steel Panel Welded Wire Mesh Production Line means partnering with a supplier that understands international export logistics and the quality standards required by diverse global markets. It is a strategic asset designed to provide years of dependable service and a solid return on investment.
To explore how this automated production line can transform your welded mesh manufacturing operations, contact Hebei Jinlongyu today. We provide comprehensive technical support and can tailor the equipment specifications to align perfectly with your production goals and target markets.
Frequently Asked Questions (FAQ):
Q1: What is the primary application of the mesh produced by this line?
A: The line is primarily designed for producing welded wire mesh used as reinforcing mesh in concrete construction (slabs, walls, pavements). It is also suitable for manufacturing fencing mesh, industrial grating, and other architectural mesh products.
Q2: Can the production line handle different wire materials?
A: The standard configuration is optimized for low-carbon steel wire, which is most common for reinforcing mesh. Options for handling other steel grades or materials may be available upon request and require configuration review.
Q3: How automated is the process? What level of operator involvement is needed?
A: The line is designed for high-level automation. Operators are primarily needed for monitoring the control system, loading wire coils, and overseeing the finished panel stacking. The core welding, cutting, and feeding processes are fully automatic.
Q4: Is training provided for operating and maintaining the equipment?
A: Yes, Hebei Jinlongyu typically provides on-site or remote operational training for your technicians. Basic maintenance guidelines and manuals are also supplied to ensure smooth long-term operation.
Q5: What is the typical production output capacity?
A: Output capacity is variable and depends on the specific model and mesh specifications (wire diameter, grid size). Standard models can produce several tons of mesh per hour. Exact figures can be provided based on your required product details.
Q6: Can the line produce custom mesh sizes and patterns?
A: Absolutely. The PLC control system allows for programming custom grid spacings and panel dimensions. The mechanical setup can also be adjusted to accommodate a range of wire diameters and panel widths.
Q7: What are the key factors in the machine's durability?
A: Durability stems from its heavy-duty steel frame construction, industrial-grade welding transformers and controls, and high-quality mechanical components designed for continuous operation.
Q8: Does Hebei Jinlongyu offer after-sales support and spare parts?
A: Yes, we offer comprehensive after-sales technical support and maintain a supply of critical spare parts. Our global export experience ensures we can coordinate support for clients in various regions.
