Home > Electrical & Electronics > Passive Components > Capacitor > Industrial Disconnector Switch for Electrical Panel and Cabinet Mount

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount thumbnail-3

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount thumbnail-4

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount thumbnail-5

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount photo-1

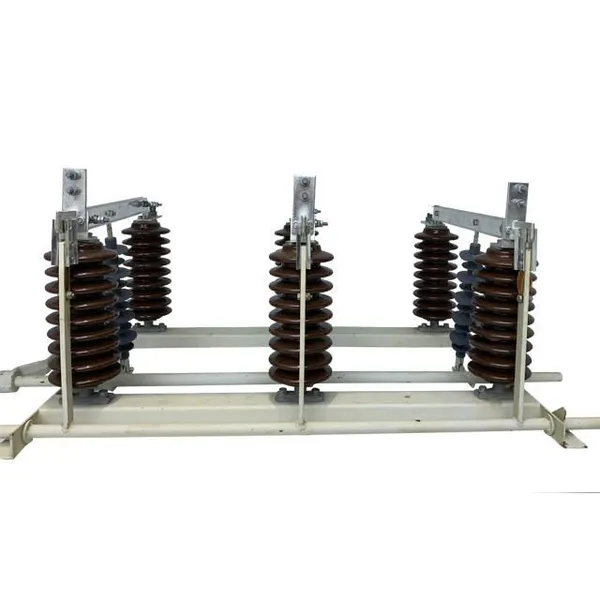

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount photo-2

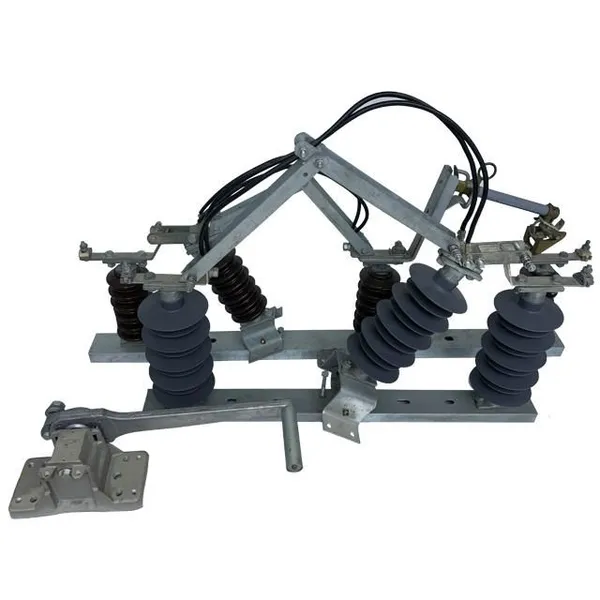

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount photo-3

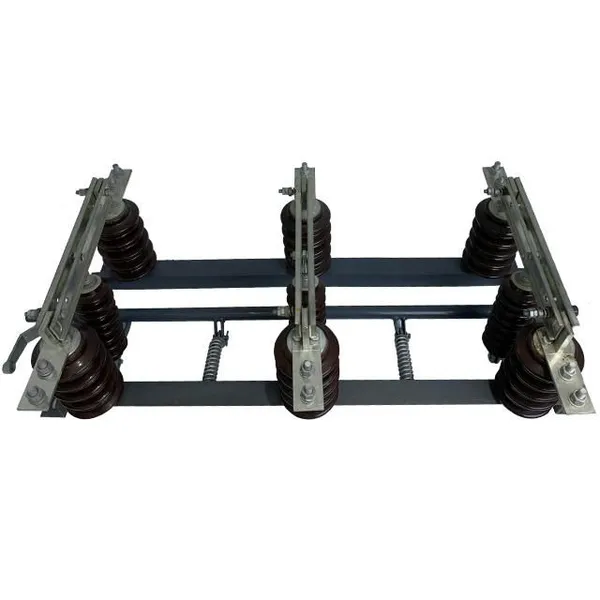

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount photo-4

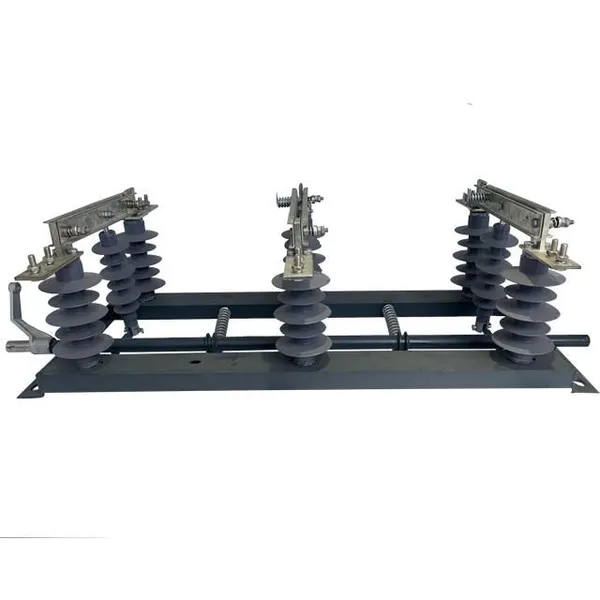

Industrial Disconnector Switch for Electrical Panel and Cabinet Mount photo-5

Product Spotlights

A robust, manually operated isolation switch designed for safe circuit disconnection within electrical panels and cabinets. Features a visible isolation gap, sturdy metal construction, and customizable current ratings. Offers optional auxiliary contacts and door interlock for enhanced safety and control integration. Ideal for maintenance, testing, and emergency shutdown procedures in industrial settings.

US$ 200 ≥1 Unit

Key Specifications

Get Latest Price

Application:

Other, Industrial Electrical Systems

Mounting Type:

Panel or Cabinet Mount

Function:

Load Disconnection and Isolation

Contact Supplier Request Quote Chat Now

Jinhua Dika Electrical Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Other, Industrial Electrical Systems

Mounting Type Panel or Cabinet Mount

Function Load Disconnection and Isolation

Operating Mechanism Manual Rotary Handle

Contact Configuration Single or Double Break

Rated Voltage Up to 690V AC

Rated Current Customizable, typical 32A-125A

Construction Material Metal Housing, Copper Contacts

Safety Feature Visible Isolation Gap

Optional Accessories Auxiliary Contacts, Door Interlock

As a professional manufacturer with ISO9001 certified quality management, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing reliable and robust industrial electrical components for global markets. Our Industrial Disconnector Switch is engineered for safe and convenient isolation of electrical circuits within panels and cabinets, serving as a critical safety interface for maintenance, testing, and emergency shutdown procedures.

This switch provides a visible and secure isolation point, ensuring operator safety and system protection. It is designed to meet the rigorous demands of industrial environments, offering high durability, clear operational status indication, and straightforward integration into various electrical control systems.

Core Product Features & Technical Specifications:

Robust Construction: The switch features a sturdy metal housing that provides mechanical strength and protection for the internal copper contact mechanism, ensuring long-term reliability in industrial settings.
Clear Isolation Function: The manual rotary handle operation creates a physically visible air gap between contacts when in the "OFF" position, providing a definitive and safe isolation state compliant with safety standards.
Versatile Mounting: Designed specifically for mounting on electrical panel doors or inside cabinets, it integrates seamlessly with standard panel layouts, saving space and simplifying installation.
Multiple Configuration Options: Available in single-break or double-break contact configurations to suit different circuit isolation requirements and enhance safety levels.
Customizable Ratings: While typical current ratings range from 32A to 125A, specific ratings for voltage (up to 690V AC) and current can be tailored to your project needs upon request.
Enhanced Safety Accessories: Optional auxiliary contacts for signaling the switch status to control systems and door interlock mechanisms to prevent access to live compartments are available.

Key Advantages & Customer Benefits:

Safety Compliance: Provides a mandatory isolation point for safe maintenance, reducing risk and helping meet workplace electrical safety regulations.
Operational Reliability: The simple, robust mechanical design ensures consistent operation over thousands of cycles, minimizing downtime and maintenance costs.
System Integration Flexibility: Its standardized mounting and common footprint allow for easy incorporation into new or existing panel designs from various manufacturers.
Clear Visual Indication: The handle position gives an unambiguous, at-a-glance status of the circuit (ON/OFF), improving operational clarity.
Global Application Suitability: Designed for use across the wide range of markets we serve, from North America and Europe to Southeast Asia and Africa.

Typical Technical Parameters Table:

Parameter	Typical Specification / Option
Mounting Type	Panel Front Mount, Cabinet Internal Mount
Rated Voltage (Ue)	230V AC, 400V AC, 690V AC (Customizable)
Rated Current (Ie)	32A, 63A, 125A (Available upon request)
Operating Mechanism	Manual Rotary Handle (3 Positions: ON, OFF, Isolated)
Contact Material	Silver-plated Copper
Housing Material	Galvanized Steel or Aluminum
Optional Features	Auxiliary Contacts (2NO/2NC), Door Interlock Kit

Backed by our ISO9001 certification and years of manufacturing expertise, Jinhua Dika Electrical has established a trusted supply chain for industrial electrical components, exporting to diverse markets worldwide. Our annual export volume reflects consistent demand and customer satisfaction. We understand the critical role a reliable disconnector switch plays in your system's safety and functionality. By choosing our product, you gain a component built for durability, clarity, and seamless integration, supported by a manufacturer committed to quality and global service. Contact us today to discuss your specific requirements or to request samples for evaluation.

Frequently Asked Questions (FAQ):

Q: What is the primary purpose of this Industrial Disconnector Switch?
A: Its primary purpose is to provide a safe, manual means of physically isolating a circuit within an electrical panel or cabinet. This allows for secure maintenance, testing, or emergency shutdown by creating a visible air gap, ensuring no voltage is present on the isolated section.
Q: Can this switch be used as a regular on/off operating switch for daily use?
A: While it can perform switching operations, it is specifically designed as a disconnector or isolator. Its robust construction is optimized for occasional but critical isolation events rather than frequent daily switching. For frequent operation, a dedicated circuit breaker or switch might be more suitable.
Q: How do I select the appropriate current rating for my application?
A: The rating should match or exceed the maximum continuous current expected in the circuit you intend to isolate. We offer customizable ratings; please provide your application's voltage system and load current details for our recommendation.
Q: Is the switch suitable for mounting on both panel doors and inside cabinets?
A: Yes, the design accommodates both common mounting scenarios. The mounting kit and dimensions are standardized for integration with typical panel and cabinet structures.
Q: What are auxiliary contacts, and why would I need them?
A: Auxiliary contacts are small signaling switches mechanically linked to the main disconnector. They provide an electrical signal (e.g., to a PLC or indicator light) indicating whether the main switch is ON or OFF, enabling remote status monitoring or interlocking with other systems.
Q: Does the switch come with any safety certifications?
A: Our manufacturing process is ISO9001 certified, ensuring consistent quality control. Specific product safety certifications (like CE for Europe) can be arranged based on your market requirements and are available upon request.
Q: What is the typical delivery lead time for standard models?
A: For standard current ratings (e.g., 32A, 63A), lead times are generally short, supported by our efficient production and multiple shipment ports (Shanghai, Tianjin, Guangzhou, Ningbo). Customized ratings may require slightly longer lead times for production.
Q: Can the handle position be clearly seen from a distance?
A: Yes, the handle design and its distinct ON/OFF positions are intended for clear visual identification. The handle often features color-coding or marked positions to enhance visibility for operators.
