PRODUCT OVERVIEW
Charcoal carbonization machine, carbonizing machine and charcoal stove with blower are easy to operate, high safety, energy saving, high carbonization rate, no smoke, little pollution, use the excess energy generated during the carbonization process to dry materials.
DETAILS DISPLAY

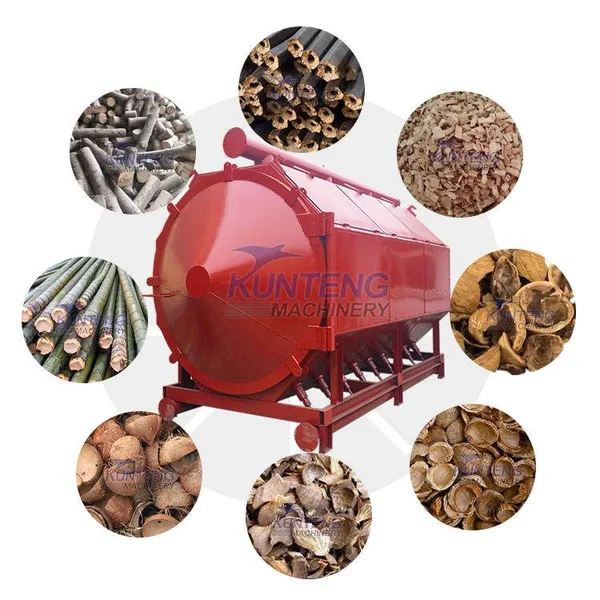

CHARCOAL CARBONIZATION MACHINE
Charcoal carbonization machine, carbonizing machine and charcoal stove with blower is special used cart entry and exit raw material and the advanced hot gas dry carbonization process technology, using a unique
carbonization flue gas. Back Burning Technology, make full use of the flue gas produced by carbonization process, meet the thermal needs of carbonization furnace itself, greatly increase the carbonization rate, the carbonization rate increased from 80% to more than 95%, and easy to operate, safety and environmental protection, high production efficiency, can save a lot of energy, is the ideal equipment for carbonizing the long rod type biomass material.
It can use different material as heating source.Such as the waste wood, coal, gas, natural gas, liquefied gas, combustible gas(produced during the carbonized process)
Wood log, Coconut shell, sawdust, bamboo or other biomass can be carbonized into charcoal, coconut shell charcoal, bamboo charcoal, sawdust charcoal, biomass charcoal by carbonization equipment.
Raw materials of charcoal carbonization machine, carbonizing machine and charcoal stove with blower furnace can be coconut shell, wood, biomass, some crops, bamboo, waste wood, branches, trunks, logs, bark, stumps, roots, wooden pallet, sawdust, shavings, wood chips, fruit wood, rice husk, corncob, peanut shell, furfural residue, palm shell, semi-coke and etc.
We could customize reasonable and efficient production line according to customers' site, raw materials, output and other requirements.
Firstly, rice husk, sawdust or other biomass are crushed by dust free crusher and dryer.
Secondly, biomass powder can be shaped by sawdust briquette machine.
In the end, sawdust stick can be carbonized by carbonization furnace.
The whole carbon making machine, charcoal maker for sale and smokeless carbonization furnace production line are fully automatic.
SIMILAR PRODUCTS
CONTINUOUS CARBONIZATION FURNACE
Continuous carbonation machine uses the carbonized flue gas purification into combustible gas generated in combustion itself. it can continuous product 24 hours. It has an advantages of zero pollution, zero emission, save labor, high capacity, energy-saving consumption, the high degree of automation and advanced technology. Which is suitable for large-scale production, with high carbonation rate, high carbon production rate, energy saving, environmental protection, high efficiency advantages. This machine is suitable for all kinds of forestry and agriculture powder particles.
HOISTING CARBONIZATION FURNACE
Hoisting carbonization furnace are composed of carbonization furnace body, furnace cover, inner tank, cage, combustible gas return pipe, exhaust pipe, flue gas dust removal device, tank lifting device and thermometer. The furnace adopts the principle of anaerobic dry distillation to remove the volatile substances in the biomass and achieve the purpose of biomass carbonization. Carbonization process through: charging sealing furnace, preheat drying, anaerobic carbonization and cooling out carbon four steps to complete.
CUSTOMER SITES
Charcoal carbonization machine customer site
Our team have more than 20 years export experience for carbonization furnace. We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.
PARAMETER
TYPE |
SIZE |
CAPACITY(kg) |
GROSS WEIGHT(kg) |
THICKNESS OF STEEL |
KT1500-1000 |
1.5*φ1m |
700 |
400 |
6mm |
KT1500-1200 |
1.5*φ1.2m |
850 |
500 |
6mm |
KT1500-1400 |
1.5*φ1.4m |
1000 |
700 |
6mm |
KT1500-1700 |
1.5*φ1.7m |
1600 |
1000 |
8mm |
KT2000-1700 |
2*φ1.7m |
2200 |
1300 |
8mm |
KT3000-1500 |
3*φ1.5m |
3100 |
2500 |
12mm |
KT3000-1700 |
3*φ1.7m |
4000 |
2700 |
12mm |
KT3000-1700 |
4.5*φ1.7m |
6300 |
3200 |
12mm |
KT4500-2000 |
4.5*φ2m |
9600 |
3700 |
12mm |
PACKING & SHIPPING
The plastic film bag wrapped machine, according to the size and weight to make wood case, put machine in and fixed the box after loading. (The box material can be made as your requirements) The carbonization machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
COMPANY PROFILE
Henan KUNTENG Machinery Manufacture Co.,Ltd is specilize in producing briquette machine, there are many useless material in the world, our machine can make these material recycling use, and make high profit for user. Our equipment can make charcoal or briquette from waste material. Since our company's inception, has high credibility. And we help customers design the best quality product line for different types machine. Our machine sold at home and abroad. We supply those certifications like CE ISO9001, CO, Form E, COC, CIQ, to help customers from different countries clearance.
KUNTENG Group Advantage:
1. Over 100 employees, 98% professional technical personnel;
2. Factory size over 10,000 square meters;
3. Exported over 80 countries, 300 global partners;
4. Customize Production Line;
5. More than 20 years experience for charcoal briquette machine production line.
KUNTENG Group Service Items:
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
