PRODUCTION DESCRIPTION

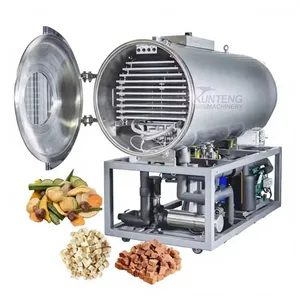

Industrial goat milk honey candy vegetable mangosteen vacuum freeze dryer machine
We focus on jackfruit freeze dryer,meat freeze drying machine,lyophilization machine for many years, provide customers with one-stop solution. this vacuum freeze dryer is a new type of freeze-drying equipment, using vacuum freeze drying technology, freezing operation is simple, low energy consumption, small floor area, easy to installation and transportation.for our customers to bring investment income.
Working principle:
Freeze drying machine is vacuum freeze-drying, the material moisture in the vacuum condition, directly sublimed into gas, maintain the original color, shape, nutrition, with good rehydration and good taste, is today's very popular freeze-dried snack food processing equipment,also widely used in various chemical and biological freeze-drying industries.
Track tray with wheels
Can quickly exchange in and out materials, saving time.
PLC control system
Automatic adjustment control,no need for manual duty.
Vacuum system
Oil-seal vaccum pump ensure excellent vaccum operation.
Freezing system
Up to -65℃,can quickly freeze materials maintain nutrition.
Freeze dryer Large application range
1.Fruit&Vegetable:strawberry,banana,durian, okra,carrot,mushroom.etc.
2.Fast food&Soup food:instant coffee,milk powder,freeze dried soup.etc3.Seafood&Meat:fish,seacucumber,chicken,beef.etc.4.Flower&Herbs:rose,chrysanthemum,cordyceps sinensis,lycium.etc.5.Snack&Nut:yogurt,milk,pistachio,sweet,candy.etc.6.Chemical&Biological:taxidermy,scorpion venom,bacterias,molecular.etc.
Cheap buy a jackfruit freeze dryer dehydration machine meat freeze drying machine dried food lyophilization machine
Good freeze drying effect
1.With complete and good-looking appearance. 2.The shape is unchanged and rehydrates quickly. 3.It can be stored for a long time without additives. 4.Locks in nutrients without loss.
Product parameters
jackfruit freeze dryer dehydration machine meat freeze drying machine dried food lyophilization machine |
|||
Model |
KT-700 |
KT-1200 |
KT2200 |
Freeze body size(mm) |
∅700×700 |
∅1200×1500 |
∅2200×5000 |
Temperature（℃） |
-50~+60 |
-50~+60 |
-50~+60 |
Temperature range（℃） |
±1 |
||
Condenser temperature（℃） |
-65±5 |
-65±5 |
-60±5 |
Condenser water capture(kg） |
12 |
120 |
550 |
Maximum vacuum inside（Pa） |
2 |
3 |
5 |
Cooling water flow rate（T/H） |
3 |
15 |
200 |
Power（kw） |
16 |
60 |
50 |
Installation area and height |
2×2.2 |
20×2.5 |
100×3 |
Own factory, small experimental machine, medium and larger models can all be customized |
CUSTOMER SITE
RELATED PRODUCTS
We can provide the whole freeze-dried food fruit vegetable freeze drying production line.
Fruit & vegetable slicer
Vegetable blanching machine
Fruit Pitting machine
Freeze Dryer
Hot air cold air integrated dryer
Small intelligent dryer
COMPANY PROFILE
KUNTENG company was founded in 1999. We have been engaged in manufacturing all kinds of fruit and vegetable Air drying machine,jackfruit freeze dryer,meat freeze drying machine,lyophilization machine, Mesh belt drying machine,and related products for many years.We got more patented technologies and honor. Our machine has passed ISO9001:2000CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.
Packing and shipping
Our service(jackfruit freeze dryer,meat freeze drying machine,lyophilization machine)
1. Three guarantee services ,
2. The equipment is well debugged before leaving the factory,
3. On-site installation and debugging of large-scale equipment technicians,
4. The technician will teach you the operating instructions of the equipment,
5. All the above are free.
FAQ
1. who are we?
We are a professional manufacturer in China
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
