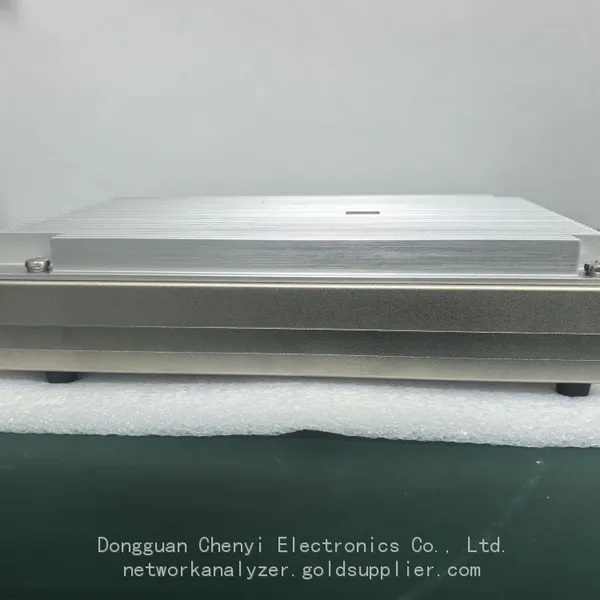

High Performance SM200C RF Spectrum Analyzer Spot Goods
The SM200C is a high-performance spectrum analyzer and monitoring receiver with a 10 Gigabit Ethernet SFP+ port,
enabling the SM200C to communicate with a PC over long distances using a fiber optic cable. Designed for
remotely-located accurate RF data analysis at the lowest cost possible.
The SM200C comes with a signed calibration certificate and a printed packet of calibration data.
Product Details
A 10GbE-connected spectrum analyzer unrivaled in value
The SM200C is a high-performance spectrum analyzer and monitoring receiver with a 10 Gigabit Ethernet SFP+ port,
enabling the SM200C to communicate with a PC over long distances using a fiber optic cable. Designed for
remotely-located accurate RF data analysis at the lowest cost possible, the SM200C features:
160 MHz instantaneous bandwidth I/Q streaming over 10GbE
SFP+ port for fast, long-distance communication with a PC using an optic cable
Device control and data transfer occurs via SFP+ connection, not USB
Tunes from 100 kHz to 20 GHz
Sweeps at 1 THz/sec at 30 kHz RBW
110 dB of dynamic range
Ultra-low phase noise
GPIO port antenna switching
It is important to note that the SM200C includes all required software for operation. As with other Signal Hound
devices, our Spike software provides the device controls, signal visualization display, and data export tools. Spike
offers a variety of analysis modes and provides specific tools for EMC precompliance testing, interference hunting,
and digital demodulation, among others.
For TSCM-specific applications, the SM200C is also compatible with the Kestrel and SCEPTRE software packages for
the ultimate in affordable and powerful countermeasure solutions.
Size & Weight
Device dimensions
Version： SM200C — 20 GHz Real-time Spectrum Analyzer with 10GbE - Standard,
Temperature Range: 0°C to +50°C
Weight： 7.77 lbs (3.52 kg)
Dimensions 10.2" x 7.2" x 2.15" (25.9 x 18.3 x 5.5 cm)
Version ： SM200C — 20 GHz Real-time Spectrum Analyzer with 10GbE - Option 1,
Temperature Range: -40°C to +65°C
Weight： 9.13 lbs. (4.14 kg)
Dimensions：10.2” x 7.2” x 2.80” (25.9 x 18.3 x 7.11 cm)
Product-in-packaging dimensions
Version： SM200C — 20 GHz Real-time Spectrum Analyzer with 10GbE - Standard,
Temperature Range: 0°C to +50°C
Weight： 12.50 lbs. (5.67 kg)
Dimensions： 16.5" x 11" x 8.44" (41.9 x 27.9 x 21.44 cm)
Version： SM200C — 20 GHz Real-time Spectrum Analyzer with 10GbE - Option 1,
Temperature Range: -40°C to +65°C
Weight： 12.50 lbs. (5.67 kg)
Dimensions：16.5" x 11" x 8.44" (41.9 x 27.9 x 21.44 cm)
