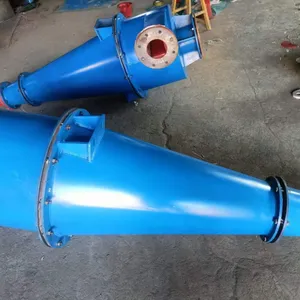

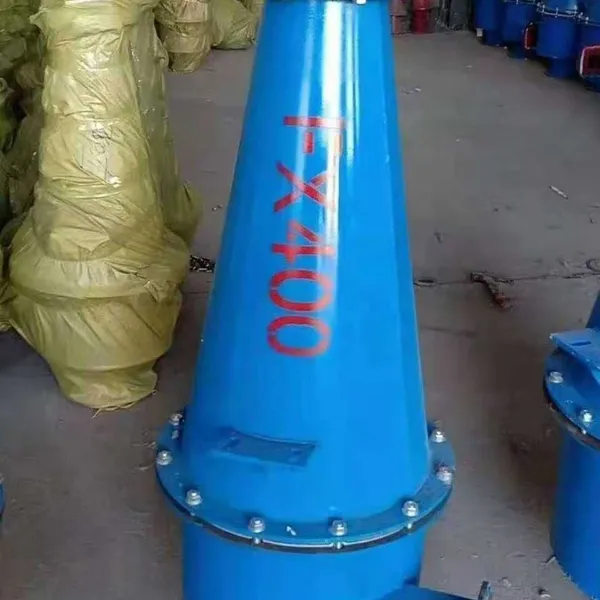

Hydrocyclone Detailed Product Description
Hydrocyclone is a static centrifugal separation device with no moving parts, widely applied in mineral processing, coal washing, sewage disposal and solid-liquid separation industries. It adopts centrifugal force principle to classify, concentrate, deslime and dehydrate slurry materials, featuring stable operation, high efficiency and low failure rate. Made of high wear-resistant materials, our products adapt to harsh abrasive working conditions, effectively cut operating costs and improve production benefits.
Working Principle
Slurry is pumped into the cyclone tangentially under stable pressure to form strong swirling flow. Dense coarse particles are pushed to the inner wall by centrifugal force, spiraling down along the cone section and discharging as concentrated underflow from the bottom outlet. Light fine particles and liquid gather at the center, forming upward inner vortex and flowing out from the upper overflow pipe. Continuous circulating flow realizes automatic grading and separation of materials, with high separation precision and small energy loss.
Structural Composition
The product adopts modular integrated structure, consisting of feeding chamber, vortex finder, cone body, discharging nozzle and wear-resistant lining. The involute feeding inlet reduces flow turbulence and ensures even material entering. The central vortex finder controls particle overflow and promotes separation accuracy. Tapered cone body accelerates flow speed and strengthens classification effect. Replaceable bottom spigot adjusts discharging volume and prevents blockage. Wear-resistant lining effectively resists material impact and abrasion, prolonging service life. Standard flange interface supports quick connection with on-site pipelines.
Core Advantages
This cyclone boasts outstanding comprehensive performance. It achieves high separation efficiency with clear material grading and low residue mixing rate. Excellent wear-resistant lining adapts to long-term impact of hard ore slurry, greatly reducing replacement frequency. Without transmission parts, the equipment needs little daily maintenance and lowers downtime loss. Compact overall structure occupies small installation space, convenient for layout in narrow workshops. Diversified specifications and customized designs meet different handling capacity and separation demands. Stable performance keeps consistent working effect even with slight changes of feeding concentration and pressure. Simple installation and easy operation save labor and time cost.
Material Selection & Technical Parameters
Multiple high-quality materials are optional for different working environments. Carbon steel and stainless steel serve as outer shell, suitable for conventional and corrosive medium respectively. Polyurethane, rubber and ceramic liners are mainstream wear-resistant accessories, applicable to high-abrasion mine slurry. Tungsten carbide and ceramic nozzles stand frequent scouring. The applicable feeding pressure ranges from 0.5 to 3.0 bar, processing particle size covers 5 to 200 microns. Single equipment handling capacity varies widely, adapting to small and large production lines. The product resists acid and alkali corrosion, and works steadily within normal temperature range.
Application Scope
It covers multiple industrial production fields. In mineral processing, it is used for ore grading, slime removal, mineral concentration and tailings dehydration, optimizing grinding and sorting procedures. In coal washing industry, it separates coal from gangue and recovers fine coal resources to upgrade product quality. In environmental protection wastewater treatment, it removes sediment and suspended solids to purify water body. It also serves sand classification, starch separation, drilling fluid treatment and aggregate processing, meeting diverse solid-liquid separation requirements of various industries.
Product Types & Customization
We supply diversified cyclone products. Standard type fits conventional grading work; high-efficiency type optimizes internal flow structure for finer separation. Dense medium type is specially designed for coal washing. Tailings dehydration type suits mine tailings treatment. Multi-cyclone combination unit satisfies large-flow centralized processing. Meanwhile, customized size, lining material and structural style are available according to actual working conditions, perfectly matching clients’ production equipment and technological process.
Installation Operation & Quality Guarantee
Install vertically on stable base and reserve maintenance space. Keep straight feeding pipelines to avoid violent flow impact. During operation, maintain stable feeding pressure and concentration, regularly check wear degree of vulnerable parts and replace damaged accessories timely. All products pass strict raw material inspection, fluid simulation optimization and factory pressure test, complying with standard quality system. Strict production control ensures stable product quality, reliable sealing and long service cycle.
Our hydrocyclone combines mature technology and optimized design, delivering high-efficiency and low-consumption separation solutions. With reliable quality, flexible collocation and thoughtful after-sales support, the product helps clients improve production efficiency and control running cost, being ideal separation equipment for industrial solid-liquid processing.
