Product Description

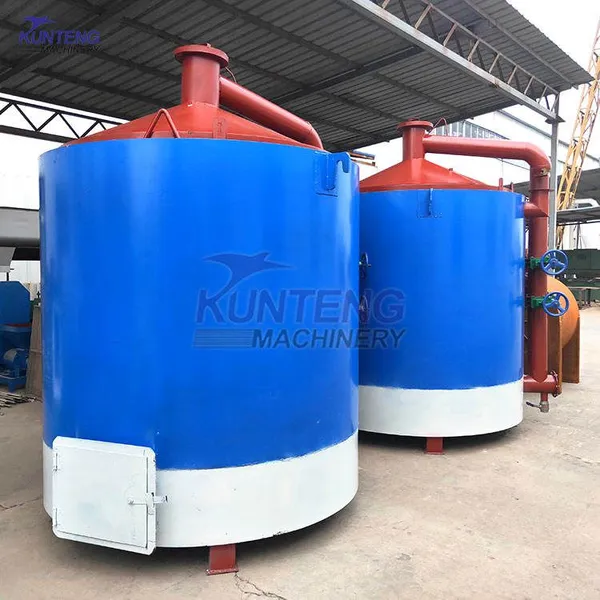

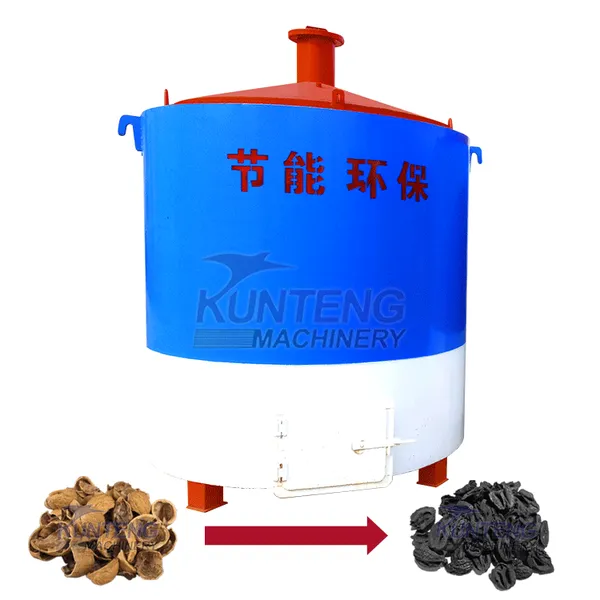

Automatic Eco-Friendly Vertical Hosting Carbonization Furnace Horizontal Sawdust Carbonizer Furnace

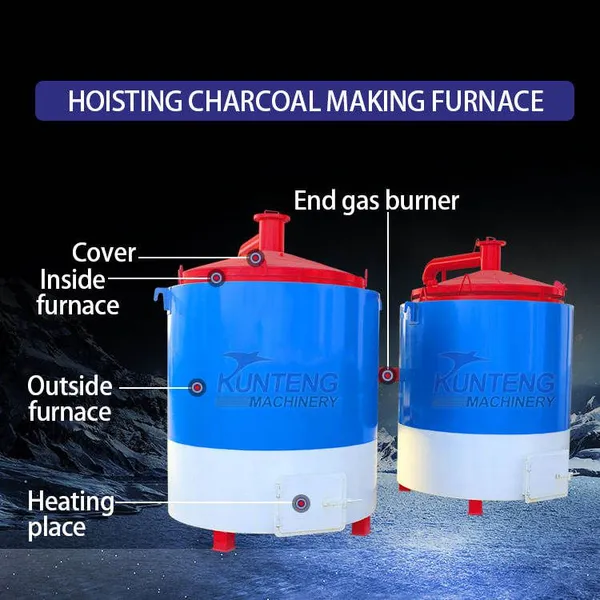

The composition of lifting carbonization furnace: Including furnace body, furnace cover, heating chamber, exhaust pipe, the furnace body is equipped with a carbonized inner tank, and the carbonized inner tank is installed with a sealing cap, the upper edge of the carbonized inner tank is fixed with a downward folding ring flange, the downward folding ring flange and the upper part of the furnace fixed ring sealing ring matching buckle installation. A lifting ear is fixed on the side wall of the carbonized inner liner, on the upper cover of the carbonized inner liner and on the furnace cover respectively.
The inner tank and combustion chamber of the lifting carbonization furnace are separated, because the movable installation of the carbonization inner tank can achieve continuous work, one furnace body can be equipped with three carbonization inner tank, no preheating treatment is required when replacing the carbonization inner tank, and the cooling of the carbonization inner tank is completely removed from the furnace body, which greatly improves the efficiency of carbonization work, shortens the carbonization time, and saves labor expenses. The sealing effect is good, the overall structure is simple and novel, the operation is simple and safe.
Carbonization Process
1, the drying stage: from the beginning of the ignition combustion furnace temperature up to 160 ° C, this stage is also a wet stage, mainly rely on the heat generated by the bottom of the fuel to heat the wet, this stage logs, rods or other raw material chemical composition almost no change.
2, the initial stage of carbonization: this stage mainly depends on the external heat value, the furnace temperature rises to between 160 and 280°C. In this case, the wood thermal decomposition reaction, the composition begins to change. Among the unstable substances are hemicellulose decomposition of carbon dioxide and a small amount of acetic acid and other substances.
3. Dongguan carbonization stage: temperature 300 ~ 650℃. At this stage, the raw materials are rapidly decomposed and a large number of combustible gases containing tar and other impurities are generated. The combustible gas is transported to the bottom of the furnace through the gas pipeline for circulation combustion, and the raw materials in the furnace are rapidly carbonized to generate carbon rods under high temperature conditions.
Machine Characteristic
Machine characteristics of Lifting Carbonization Furnace
1, carbonization rate of up to 80%, no smoke emission, no pollution, high efficiency
2. The raw materials are carbonized into carbon rods after 6-8 hours. Three internal Dan alternately carbonized continuous work, 24 hours a day can produce carbon 3 times
3. the gas recovery and recycling, their own heating, the recovery rate of up to 90%, saving 75% of energy
4. The lifting carbonization furnace is equipped with a flue gas recovery device, and the recovered flue gas can be ignited like liquefied gas, as a heat source for its own carbonization, and the production environment is smokeless and tasteless.
5. Continuity of production
6. Shut off coke
7.Controllable and adjustable carbonization temperature
8. High heat transfer, high wear resistance of the composite material to form a high-efficiency carbonization chamber
Production Line
We have a whole production line of barbecue carbon, whether your raw material is wood, bamboo, branches, wood sticks, coconut husk, sawdust, rice husk, peanut husk, corn cob, etc. Our production line can process and finally make barbecue carbon.we also accept customized production line, everything is based on customer needs.
Company Profile
KUNTENG Machinery Co., Ltd serves the Carbonizing Equipment,Briquetting Machines And Dryers industry and has mature experience in research & development, design, manufacturing and installation. Machinery has cooperated with many manufacturers in China and other countries to provide Carbonizing Equipment,Briquetting Machines And Dryers equipment for the production lines of many manufacturers. Machinery pays attention to customer applicability and product research and development, and the level of production skills is perfect. We undertake the design and manufacturing of various types of Continuous carbonization furnace, horizontal carbonization furnace , lifting carbonization furnace, briquetting machine and dryer,etc.

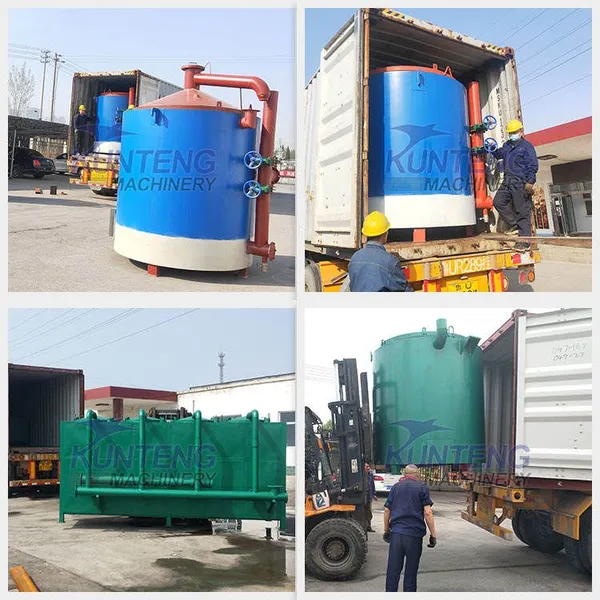

Packing for horizonta
l carbonization furnace, charcoal briquette machine manufacturing plant, barbecue charcoal machine:
1. Single machine will be packed in wooden case.
2. The machines for whole production line will be loaded into the container directly.
FAQ
Q1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
Q2. why should you buy from us not from other suppliers?
Our team has mature experience in research & development, design, manufacturing and installation. Every process is strictly controlled in order to provide you the best products.
Q3.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
