Help CenterPD3.0 Usb&Type Port Fast Charging Charger for Mobile Phone and Other Devices
Product Spotlights
Related Products
-
Foldable Portable Compatible Charger PD3.0 + QC3.0 Dual Type-C Mobile Travel Adapters Fast Charging Eu Plug AdapterUS$ 5.5 - 6MOQ: 100 Pieces -
High Quality Compatible Spare Adapter Charger; 9V2A Adapter With Flat Design for Wireless Charging Station, IPhone, SamsungUS$ 5.0 - 5.4MOQ: 250 Pieces
-
35W GaN Universal Folding Pin Power Adapter QC3.0 Slim Fast Charger Type C for Smart PhoneUS$ 5.5 - 6MOQ: 250 Pieces
-
GaN Tech 20W PD Universal for IPhone/Huawei/Xiaomi Smart Cooling Folding Plug Manufacturers of Original Mobile Phone ChargerUS$ 5.0 - 5.3MOQ: 250 Pieces
-
PD 3.0 Multi Port Foldable GaN 20W Fast Wall Charger for Mobile Phone and Other DevicesUS$ 5 - 5.3MOQ: 250 Pieces
Specifications
1. INPUT CHARACTERISTICS
Input Voltage:
Rated Voltage: 100-240Vac
Variation Range: 90-264Vac
Input Frequency:
Rated Frequency: 50/60 Hz
Variation Frequency: 47-63 Hz
Input Current:
1Amps max At any input voltage and rated, DC output rated load.
Inrush Current:
20 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.
Ac Leakage Current:
0.25mA Max.At240Vac input.
2.Output Characteristics
USB-A is for QC2.0 output, the output port supports the following protocols:
iPhone→5V 2.4A
BC 1.2→DCP 5V 1.5A
SAMSUNG AFC→9V 12V
QC2.0→ 5V 9V 12V
VOOC/DASH/WARP-3.3→5. 5V
SuperVOOC-10V
The range of each voltage and the maximum output current are as follows:
4.8V-5.35V Load output current 3A
8.85V-9.35V Load output current 2.22A
11.85V-12.35 V Load output current 1.67A
USB-C is for PD3.0 output, the output port supports the following protocols:
iPhone(15 and earlier versions)→5V 2.4A
BC1.2→DCP 5V 1.5A
SAMSUNG AFC→ 9V 12V 20V
QC2.0→5V 9V 12V 20V
PD3.0→5V 9V 12V 20V (iPhone16 and News)
VOOC/DASH/WARP-3.3→5. 5V
SuperVOOC-10V
The range of each voltage and the maximum output current are as follows:
4.8V-5.35V Load output current 3A
8.85V-9.35V Load output current 2.22A
11.85V-12.35V Load output current 1.67A
19.85V-20.35V Load output current 1.67A
3 Ripple and Noise
Test Conditions: Under nominal voltage and nominal load, the ripple and noise are as when measure with Max. Bandwidth of 20MHz and Parallel 47uF/0.1uF, crossed connected at testing point.
Turn on delay time:
3Second Max.at 115Vac input and output Max.load.
Rise time:
80 mS Max.at 115Vac input and output Max load.
Hold up time:
5 mS Min.at 115Vac input and output Max.Load.
Efficiency:
87.6%Min. at 90Vac input and output Max.Load.
89.8% Min. at 240Vac input and output Max.Load.
Overshoot:
15% Max.When power supply at turn or turn off.
Voltage Ripple and Noise(Max.)
12Vdc 120mV p-p
Core Positioning

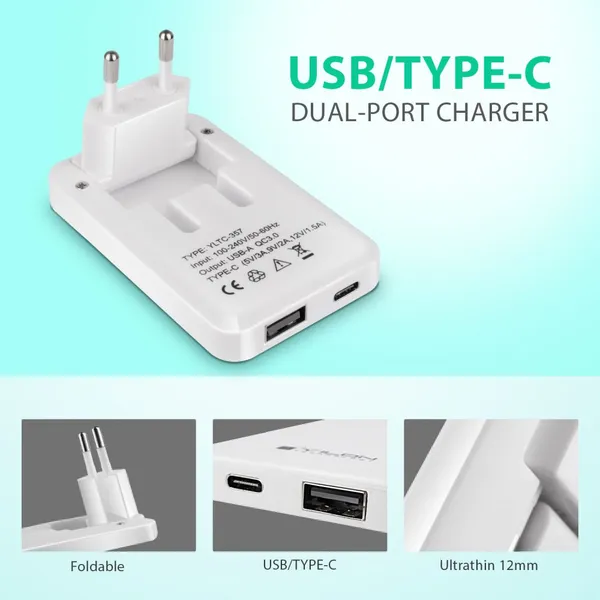

The design concept of the slim travel charger series products is portability, fast charging, and compatibility.

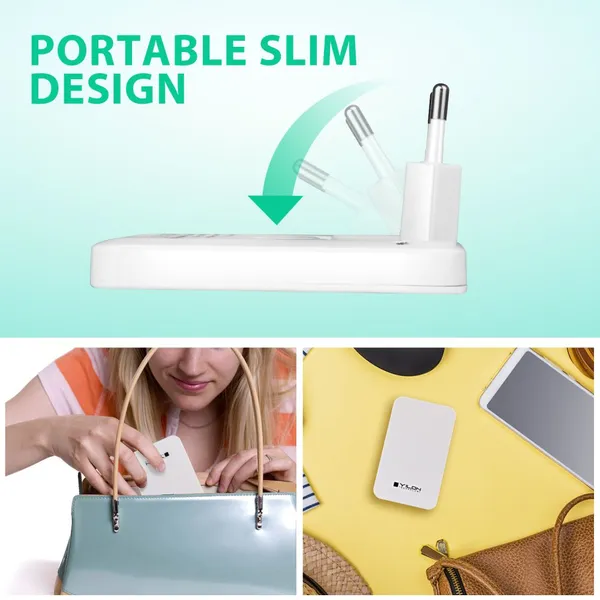

Portable: Slim flat design, pins folding, thickness than 12mm.
Fast charging: Gallium nitride material, SMPS technology, latest transformer model
Compatible: Wide voltage input, A C output, variety of fast charging protocols.
Technical Highlights

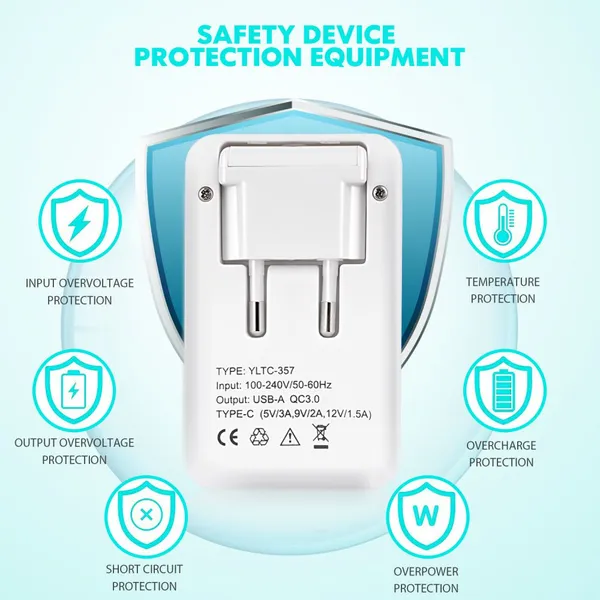

PROTECTION FUNCTION:
Short circuit test:
The power supply will be auto recovered when short circuit faults remove.4.2 Over current Protection:
USB-C: The power supply will be auto recovered when over current3.7A Max faults remove.
USB-A: The supply will be auto recovered when over current 4.1A Max faults remove.
ENVIRONMENTAL REQUIREMET:
Operating Temperature:0℃ to 40℃, Full load, Normal operation.
Storage Temperature:
-20℃ to 80℃
With package
Relative Humidity:
5%(0℃)~90%(40℃),72Hrs, Full load, Normal operating.
ibration:
1. Test standard: International Electrotechnical Commission
Operating: IEC 721-3-3 3M3
5~9, A=1.5mm
Acceleration (9~200Hz, Acceleration 5m/S2)
2. Transportation:
IEC 21-3-2 2M2
5-9Hz, A=3.5mm
9~200Hz, Acceleration=5m/S
200~500Hz, Acceleration=15m/S2
Certification qualifications
International certification: Complies with UL 62368-1 (USA), IEC 62368 (EU safety standards.
Environmental protection certification: Complies with RoHS 3, REACH, and the EU Battery Directive (2023/2230EU).
SAFETY AND EMI REQUIREMENT:
Safety:accord with GB4943-2001.6.2 High Voltage/DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary/Primary to secondary:3000VaC5mA/60S for type test.
High Voltage Test DIELECTRIC STRENGTH Hi-Pot:
Primary to product bodyPrimary to product body:3000VaC/5mA/60S for type test.
Creepage Distance≥6.5mm
EMI STANDARD
Meets the Limits of/Test Conforms to
.Fcc part15 class B rules.EN60950 class B rules
.GB9254-1998,17625.1-2003
.GB9706.1-2007,（Reference）
Package
Single size (without packaging) :86*49*12mm
Single gross weight (including packaging) :70g
Carton size :44*33*29cm
Packing quantity: 250 pieces/box
Gross weight.:17.5kg
Payment & Lead time
T/T, 30% deposit, other balance must be paid before delivery.
20-25 days after receiving the deposit and confirming the details.
Delivery
We provide efficient and cost-effective logistics solutions:
To China and Hong Kong, Macao, Taiwan: SF 1-3 days
To areas: You can consult us for the most perfect and economical transportation plan:
For air: 3-7 days | For quick purchasing
Multimodal : 7-12 days | Least cost, considering timeliness (most recommended)
Truck or rail: 15-30 days | For monthly purchase
Sea: 20-35 days | For quarterly purchase
