1-Ton High-Efficiency Mini Excavator (KOOP 192F Power)
Product Overview

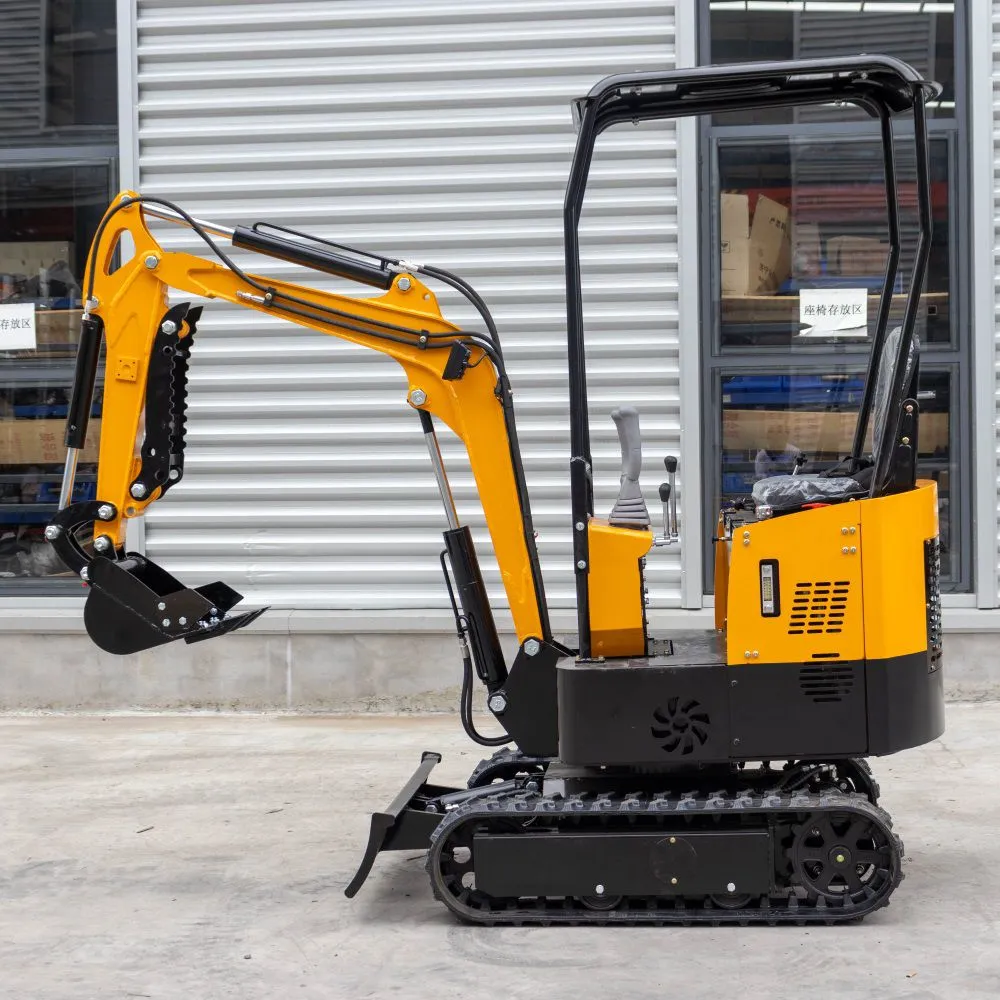

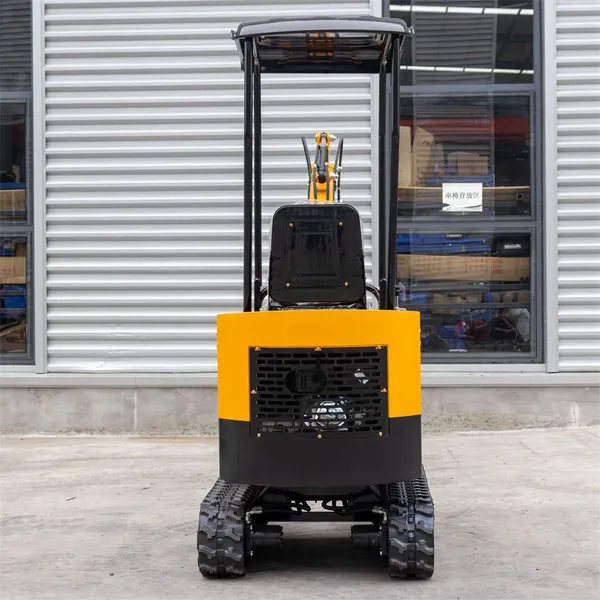

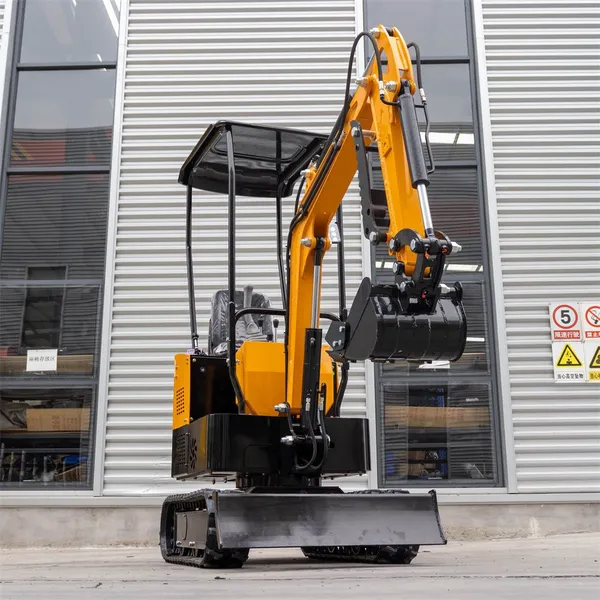

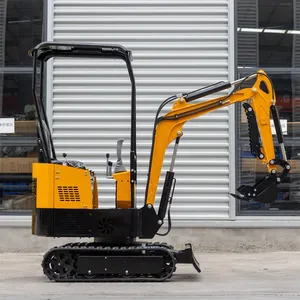

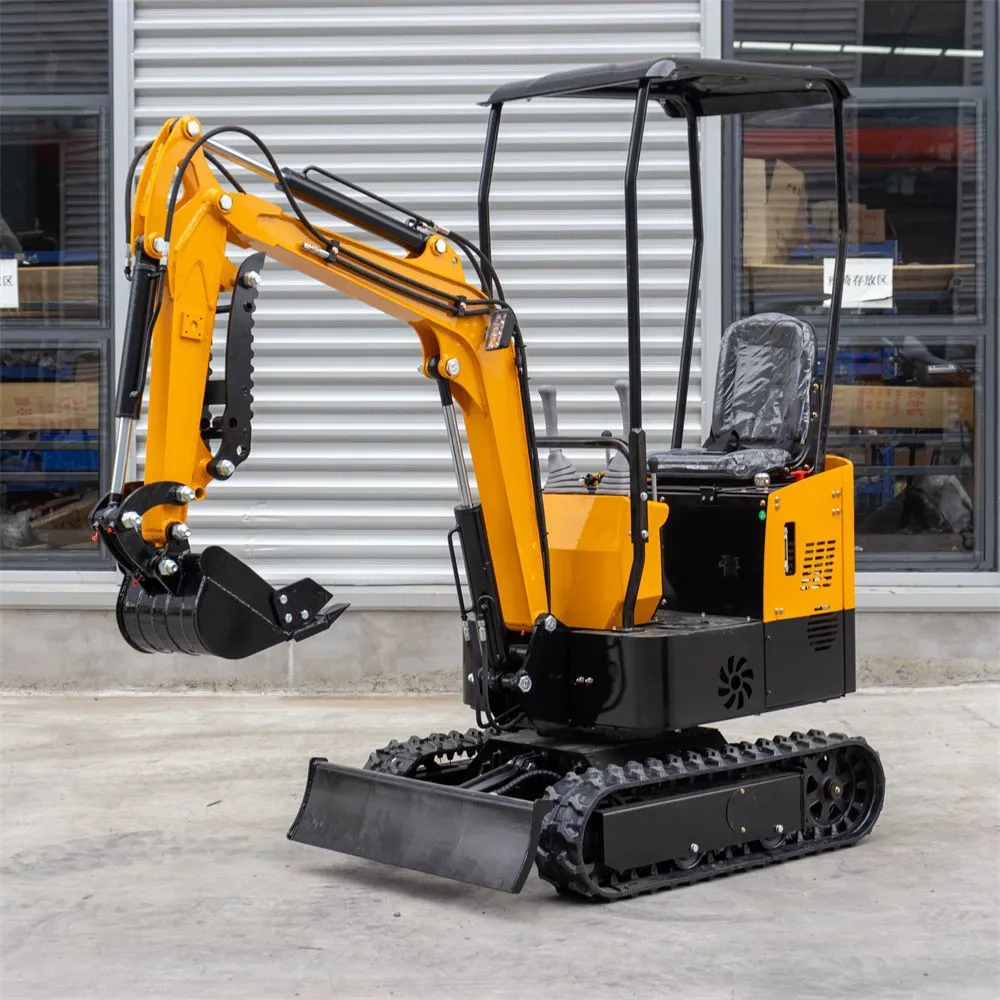

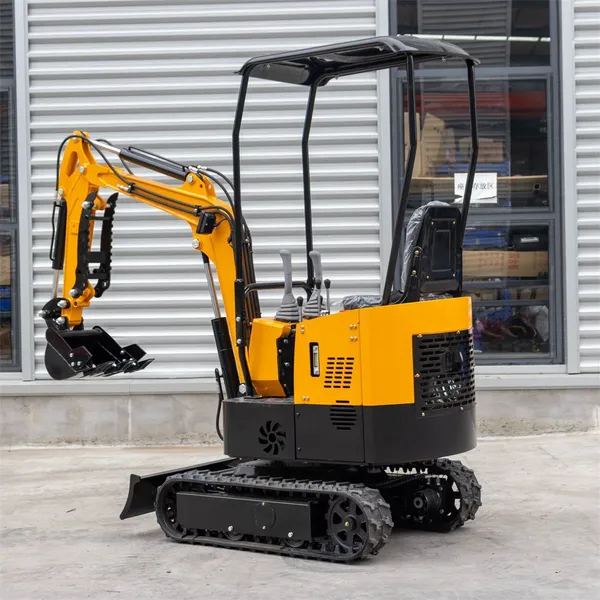

This 1-Ton (1000kg) Mini Crawler Excavator is the ultimate compact solution for narrow-space operations. Engineered for high efficiency and maximum agility, it features a highly reliable KOOP 192F single-cylinder fan-cooled engine, producing a rated power of 7kW @ 3000r/min.
With a slim chassis width of just 896mm and a tight 1330mm minimum rotation radius, this micro digger easily passes through standard garden gates, narrow alleys, and indoor doorways. It is an ideal investment for residential landscaping, backyard trenching, agricultural farm maintenance, and DIY projects.
Key Product Selling Points
Ultra-Compact & Flexible Design: With an overall width of only 896mm and a platform back turning radius of 784mm, this machine offers unmatched maneuverability in confined spaces, making it perfect for zero-clearance residential or indoor jobs.
Reliable & Cost-Effective Power: The standard KOOP 192F engine provides stable power output with minimal fuel consumption. For customers with specific regional requirements, premium optional engines are available, including Briggs & Stratton, Changchai, Rato, and Yoop.
Impressive Working Range: Despite its micro size, it boasts a generous maximum digging depth of 1750mm and a maximum digging height of 2610mm, delivering high productivity for trenching and material loading.
Excellent All-Terrain Stability: Equipped with a 180mm wide track system and 380mm high platform ground clearance, this excavator effortlessly navigates muddy farm terrains and rocky jobsites while protecting the undercarriage.
Heavy-Duty Bulldozer Blade: Features a robust front blade with a maximum upgrade height of 345mm and a digging depth of 255mm, excellent for backfilling trenches, grading, and leveling land.
Detailed Technical Specifications Table
| Category | Technical Feature / Parameter | Data Specification |
| Weight | Machine Operating Weight | 1000 kg (1 Ton) |
| Engine System | Standard Engine Model | KOOP 192F |
| Optional Engine Choices | Rato, Yoop, Koop, Changchai, Briggs & Stratton | |
| Bore Stroke / Cooling | Single cylinder, fan-cooled | |
| Rated Power | 7 kW / 3000 r/min | |
| Chassis & Dimensions | Overall Dimension (L×W×H) | 2900 × 930 × 2180 mm |
| Chassis Width | 896 mm | |
| Track Width / Height | 180 mm / 320 mm | |
| Wheelbase / Total Track Length | 910 mm / 1230 mm | |
| Ground Clearance (Platform / Chassis) | 380 mm / 132 mm | |
| Working Capacities | Digging Bucket Capacity / Load | 0.025 cbm / 120 kg |
| Bucket Width | 380 mm | |
| Travel Speed | 1.5 km/h | |
| Working Range | Max. Digging Depth | 1750 mm |
| Max. Vertical Digging Depth | 1550 mm | |
| Max. Digging Height | 2610 mm | |
| Max. Dumping Height | 1850 mm | |
| Max. Digging Radius on Ground | 3050 mm | |
| Min. Rotation Radius / Platform Back Radius | 1330 mm / 784 mm | |
| Dozer Blade | Max. Upgrade Height of Blade | 345 mm |
| Max. Digging Depth of Blade | 255 mm |
Versatile Applications (One Machine, Multiple Jobs)
Designed with auxiliary hydraulic piping, this 1-ton excavator can be paired with various attachments via a quick hitch to expand your business capabilities:
0.025m³ Digging Bucket (Standard): Ideal for soil excavation, trenching, and foundation digging.
Auger / Post-Hole Digger: Perfect for drilling fence posts and planting orchard trees.
Hydraulic Breaker: Easily breaks up indoor concrete floors, brick walls, and stones.
Rake & Ripper: Great for clearing roots, land management, and preparing garden beds.
