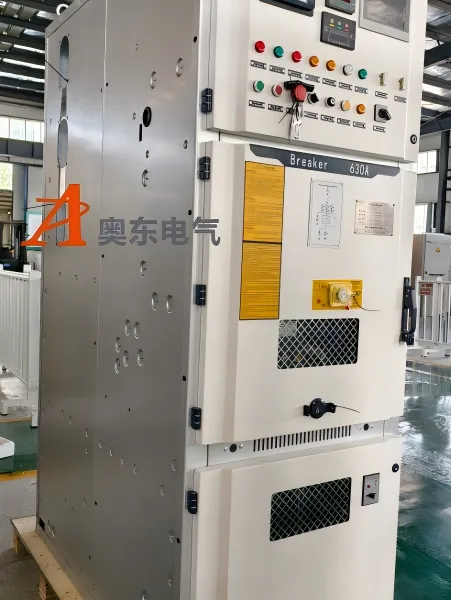

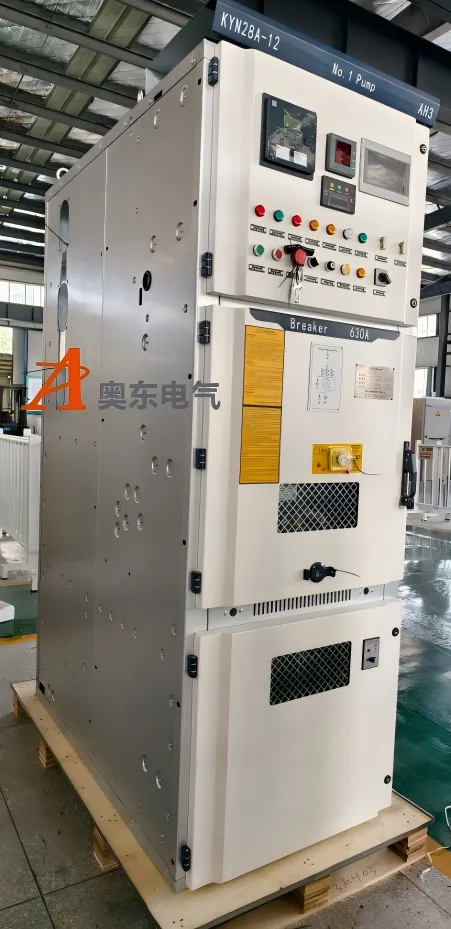

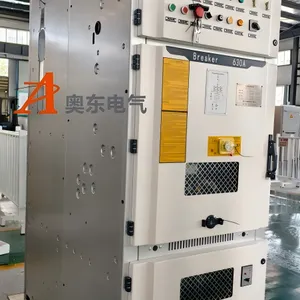

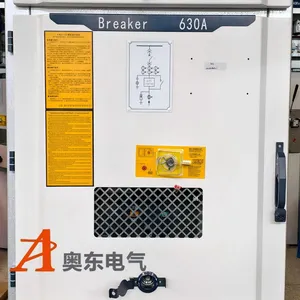

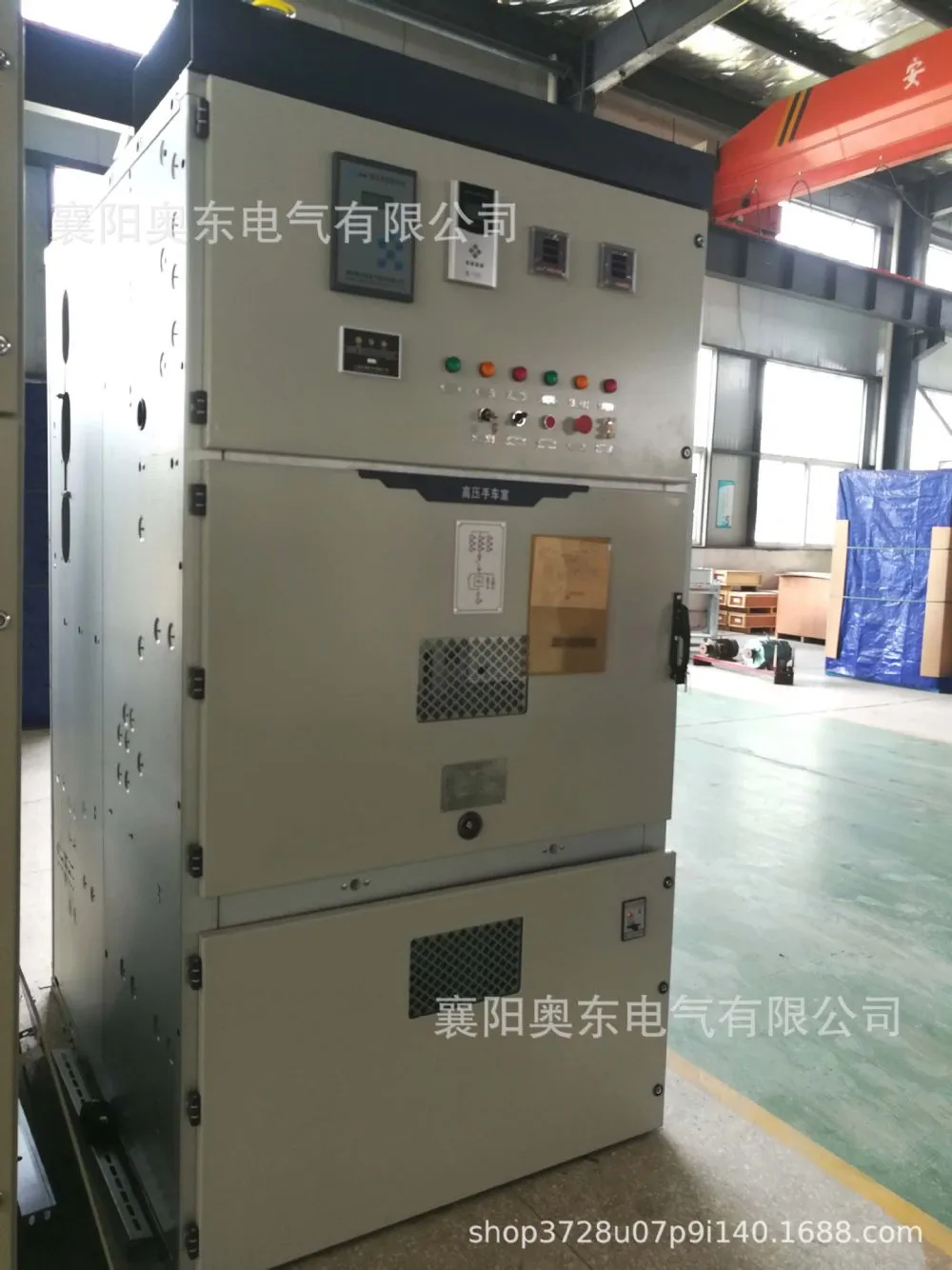

Integrated Soft Start Cabinet: A high-voltage solid-state soft start cabinet equipped with a switchgear circuit breaker. Aodong Electric's ADGY high-voltage integrated soft start cabinet is a leading manufacturer of motor-accompanying equipment, including high-voltage solid-state integrated soft start cabinets, Xiangyang soft start cabinets, high-voltage frequency converters, capacitor compensation cabinets, and water-resistance cabinets. Aodong Electric provides a comprehensive overview of the ADGY high-voltage integrated soft start cabinet, detailing its performance characteristics, applicable industries and loads, motor protection functions, model specifications, selection tables, primary system diagrams, reference prices, ordering guidelines, and on-site application cases.
I. Overview: Technical Consultation: 190-9280-3958, Engineer Xie
Aodong Electric's ADGY High-Voltage Integrated Soft Start Cabinet. This high-voltage solid-state integrated soft start cabinet combines a high-voltage switchgear, high-voltage bypass cabinet, and high-voltage soft start unit. In recent years, it has been widely adopted, particularly in the water conservancy and hydropower industries. Major design institutes typically begin incorporating this integrated soft start solution due to its user-friendly operation, cost-effectiveness, and space-saving advantages, delivering tangible benefits to customers. Aodong Electric offers a comprehensive range of integrated solid-state soft start cabinets, high-voltage solid-state soft start cabinets, and integrated soft start solutions.
II. Introduction to Performance Features:
The maintenance-free design eliminates additional upkeep costs once in operation, significantly reducing maintenance expenses and long-term operational expenditures.
It maintains the fundamental wave of the power grid without harmonic pollution and exhibits strong interference resistance.
High safety, strong overload capacity, and a wide adjustment range for control parameters and curves.
Unaffected by the temperature and geographical location of the operating environment, it is suitable for various heights and environmental conditions with varying temperatures and humidity levels.
The integrated control and metering unit combining a switchgear and a starting cabinet features a compact design—only 55% the size of equivalent high-voltage soft starters—facilitates easy installation, saves space, and eliminates the need for an additional high-voltage switchgear unit.
III. Applicable Industries and Compatible Loads for Integrated Soft-Start C cabinets:
IV. Municipal Water Supply: Water pumps, etc.; Wastewater Treatment: Wastewater pumps, purification pumps, clean water pumps, etc.;
Electricity: condensate pumps, dust extraction fans, supply fans, induced draft fans, blowdown pumps, boiler feed water pumps, etc.;
Mining industry: mine drainage pumps, medium pumps, exhaust fans, ball mills, crushers, conveyors, etc.;
Pharmaceutical: cleaning pumps, refrigeration compressors, etc.;
Fans, cooler exhaust fans, sorter fans, main dust collection fans, etc.
Petroleum gas: circulating water pump, main pipeline pump, electric submersible pump, injection pump, boiler feed water pump, brine pump, induced draft fan, descaling pump, compressor, etc.
Cement production: kiln induced draft fans, pressure supply fans, cooler dust removal fans, raw material grinding mills; Kiln gas supply systems: ventilation fans, slurry pumps, dust removal fans, induced draft fans, scale removal pumps, etc.
IV. Unique Protection Features: Technical Consultation: 190-9280-3958 (Mr.Xie)
1. The overload protection system features six protection levels, providing protection based on the predefined overload protection curve.
2. Overcurrent protection: Provides protection against overcurrent (20–500% Ie) by monitoring the operating current during operation.
3. Overvoltage protection: When the main grid voltage rises to 120% of the rated voltage, the protection trips after a delay of 1–10 seconds (adjustable).
4. Undervoltage protection: When the main grid voltage falls below 70% of the rated voltage, the protection trips with a delay time of 1–10 seconds (adjustable).
5. Phase loss protection: Tripping protection activates when any phase is absent.
6. Phase Sequence Protection: Phase sequence detection can be configured to trigger protection when a phase sequence error is detected.
7. Phase current imbalance: If the main circuit current imbalance exceeds the set value (adjustable from 0% to 100%), the trip protection will activate.
8. Ground current fault: The protection trips when the ground current exceeds the set value;
9. Start timeout protection: The protection trips if the motor fails to reach full speed within the preset extended start time (adjustable from 0 to 120 seconds).
10. Features a self-check procedure: performs a startup self-check.
V. Model Selection Table:
model |
nominal voltage （KV） |
nominal current （A） |
output power （KW） |
Dimensions W × H × D (mm) |
ADGY-1000/6 |
6 |
110 |
≤1000 |
1000×2300×1500 |
ADGY-2000/6 |
6 |
320 |
1000～2000 |
1000×2300×1500 |
ADGY-3000/6 |
6 |
600 |
2000～3000 |
1000×2300×1500 |
ADGY-4000/6 |
6 |
600 |
3000～4000 |
1000×2300×1500 |
ADGY-5000/6 |
6 |
600 |
4000～5000 |
1000×2300×1500 |
ADGY-1000/10 |
10 |
80 |
≤1000 |
1000×2300×1500 |
ADGY-2000/10 |
10 |
150 |
1000～2000 |
1000×2300×1500 |
ADGY-3000/10 |
10 |
200 |
2000～3000 |
1000×2300×1500 |
ADGY-5000/10 |
10 |
360 |
3000～5000 |
1000×2300×1500 |
ADGY-8000/10 |
10 |
800 |
5000～8000 |
1000×2300×1500 |
VI. Order Instructions:
1. To ensure optimal product performance, please provide the following information during ordering: motor model, rated power, stator voltage and current, rotor voltage and current, load type, and the motor's actual load.
2. If specific component requirements are needed—such as ABB thyristors, ABB contactors, Schneider Baoguang vacuum circuit breakers, or Siemens PLCs—we can provide customized quotations and solutions based on your specifications in advance.
3. If you have specific requirements for cabinet color, please contact us in advance. The standard cabinet color code from Aodong Electric is RAL 7032.
VII. After-sales Service Commitment:
1. Free guidance for installation, debugging, operation, and maintenance training.
2. Provide a clear response within half an hour regarding consultations and proposal development.
3. On-site service response time: 24 hours within the province, 48–72 hours outside the province, with continuous service during holidays.
4. The service attitude is warm and attentive, with prompt and thorough debugging and maintenance.
Friendly Reminder: The Aodong Electric ADGY High-Voltage Integrated Soft Start Cabinet is an intelligent soft start solution that integrates a high-voltage solid-state soft start cabinet, a high-voltage switchgear cabinet, and a high-voltage bypass cabinet. This model comes standard with grid-side vacuum circuit breakers and vacuum contactors, eliminating the need for a separate high-voltage switchgear cabinet—thereby reducing both costs and space requirements. For the same power output, its volume is approximately 55% smaller than that of conventional soft starters. Since 2016, the Aodong Electric ADGY High-Voltage Integrated Soft Start Cabinet has gained widespread trust across various industries, with exceptionally high demand. Below, the professional manufacturer Aodong Electric provides a detailed introduction.
