Product Spotlights

• Frequency range of DC to 120 GHz (sensor dependent) • Wide dynamic range of -70 to +44 dBm (sensor dependent) • Go beyond GPIB with LAN LXI-C and USB connectivity • Backward compatible with N1913/14A EPM Series single/dual-channel average power meters
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty:
1 year
After-sales Service:
Online technical support
Brand:
Keysight
Contact Supplier Request Quote Chat Now
Dongguan Chenyi Electronics Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
90 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty 1 year
After-sales Service Online technical support
Brand Keysight
Product Name Series Single-Channel Power Meter
Product Model N1913B
Frequency range DC to 120 GHz
Power supply method Power supply
Packaging method Cardboard packaging
Transport Package Outer packaging
Specification Standard specifications
Trademark Keysight
Origin United States

Keysight N1913B EPM Series Dual-Channel Power Meter Compatible power sensors E9300 E-Series

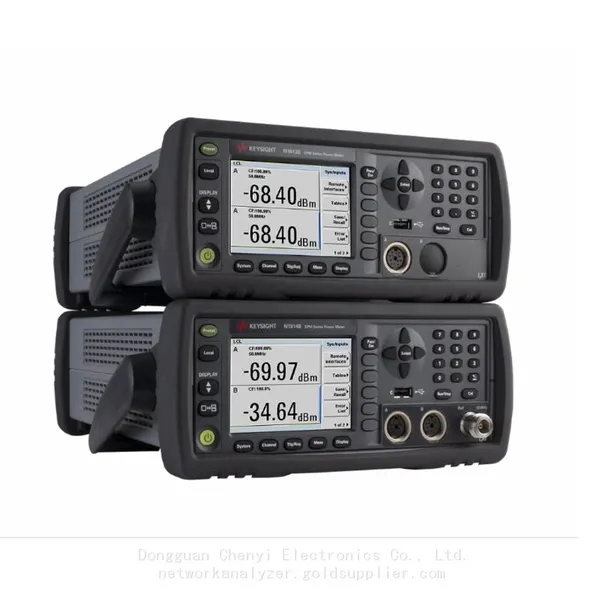

Keysight N1913B EPM Series Single-Channel Power Meter

Keysight N1914B EPM Series Dual-Channel Power Meter

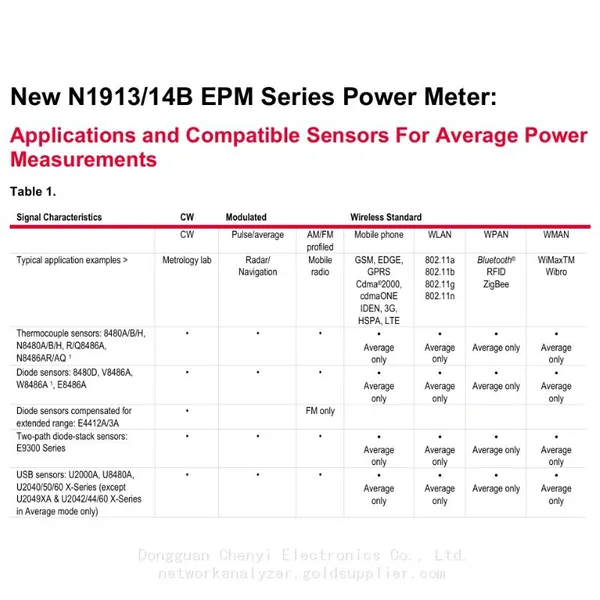

Compatible power sensors

• Keysight 8480 Series

• Keysight E9300 E-Series

• Keysight E4410 E-Series

• Keysight N8480 Series

• Keysight E8486A, V8486A, W8486A, N8486DD, N8486DG

• Keysight U2000 Series

• Keysight U8480A Series

• Keysight U2040/50/60 X-Series (except U2049XA & U2042/44/60 X-Series in Average mode only)


The N1913B EPM series single-channel average power meter provides repeatable and reliable results for

bench/rack and field applications.


Highlights

• Frequency range of DC to 120 GHz (sensor dependent)

• Wide dynamic range of -70 to +44 dBm (sensor dependent)

• Go beyond GPIB with LAN LXI-C and USB connectivity

• Backward compatible with N1913/14A EPM Series single/dual-channel average power meters

• Increased measurement channels: up to four channels with two additional U2000 Series, U8480 Series, or

   U2050/60 (except the peak power measurement) X-Series USB power sensors connected using the USB

    host connection

• Automated frequency/power sweep measurements with the optional external trigger in/out feature

• Your instrument can be controlled at no additional cost using the BenchVue Basic Power Meter/Sensor Control

   and Analysis App (BV0007B). This app simplifies instrument connection and control. Download the BenchVue Basic

   Power Meter/Sensor App (BV0007B). Note that the basic version does not include KeysightCare support and is

   one revision behind the licensed version. For access to the latest features and support, the licensed (paid) version

   of the BenchVue Power Meter/Sensor Control and Analysis App is available.


As signals become more complex, it becomes more difficult to make fast, accurate power measurements. For years, you’ve depended on

Keysight’s EPM Series power meters. Today, the Keysight N1913B and N1914B new EPM Series power meters are versatile, user-friendly

replacements for the discontinued N1913A and N1914A. Get consistent results and greater capability - with the new EPM Series power meters.


Using New EPM Series Power Meters with BenchVue Software

The new EPM power meters are supported by the Keysight BenchVue software’s BV0007B Power Meter/ Sensor Control and Analysis app.

Keysight BenchVue software for the PC accelerates testing by providing intuitive, multiple instrument measurement visibility and data capture

with no programming necessary. You can derive answers faster than ever by easily viewing, capturing, and exporting measurement data and

screen shots. BenchVue software license (BV0007B) is now included with your instrument.

N1913B (6).jpg.webpN1913B (7).jpg.webpN1913B (8).jpg.webpN1913B (9).jpg.webpN1913B (10).jpg.webp

Product Tags: N1913B , Keysight N1913B , E9300 E-Series
