Detailed Description of Angle Steel Products
1. Product Overview
Angle steel, commonly known as angle iron, is a long steel product with L-shaped cross-section and two sides perpendicular to each other at right angles. It belongs to carbon structural steel for construction and is a simple section profile steel.
2. Product Classification
2.1 Classification by Cross Section
Equal Angle Steel: Equal width on both sides, marked as side width × side thickness, numbered by centimeter of side width from No.2 to No.20. It features uniform stress and good symmetry with the largest consumption.
Unequal Angle Steel: Different widths of two sides, marked as long side width × short side width × side thickness. It is suitable for special load-bearing occasions.
2.2 Classification by Production Technology
Hot Rolled Angle Steel: Mainstream production process, formed by high-temperature rolling in accordance with GB/T 706-2016. It has stable size and high strength for general structural use.
Cold Formed Angle Steel: Formed by cold bending process complying with GB/T 6723-2017, featuring even wall thickness and high surface precision, widely used in light-duty structures.
2.3 Classification by Surface Treatment

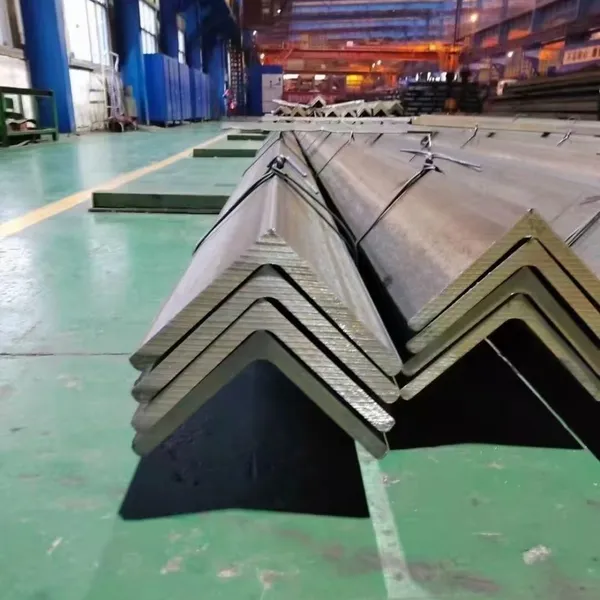

Black Angle Steel: Hot rolled original color with low cost, applied to dry indoor environments.

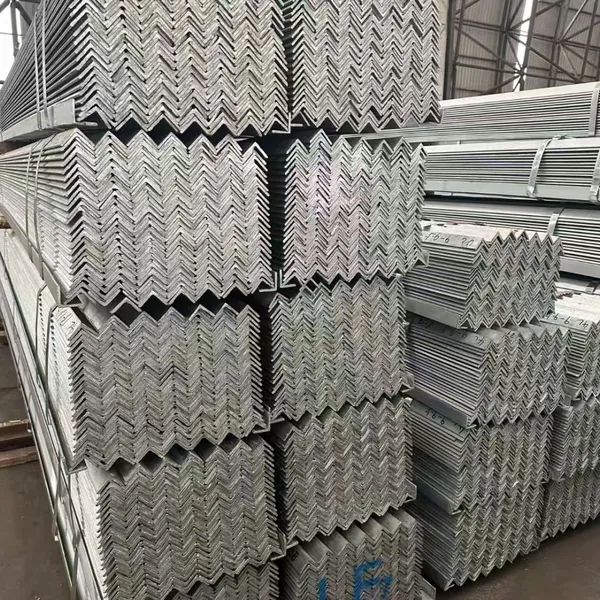

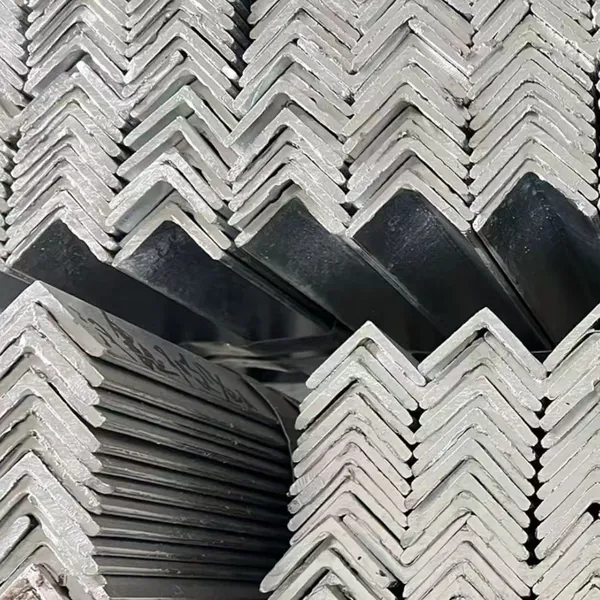

Galvanized Angle Steel: Hot-dip galvanized or cold galvanized with excellent anti-rust and anti-corrosion performance, suitable for outdoor, humid and corrosive environments.
3. Specifications and Models
3.1 Equal Angle Steel
Side width: 20mm-200mmSide thickness: 3mm-20mmCommon specifications: ∠20×3, ∠50×5, ∠63×6, ∠75×6, ∠100×8
3.2 Unequal Angle Steel
Long side width: 25mm-200mm, Short side width: 16mm-125mmSide thickness: 3mm-18mmCommon specifications: ∠32×20×3, ∠63×40×5, ∠100×80×8
3.3 Length
Standard length: 6m, 12mCustomized length: 4m-19m fixed length available
3.4 Theoretical Weight
Calculation formula for equal angle steel: W=0.00785×thickness×(2×width-thickness)
4. Material and Chemical Composition
4.1 Common Materials
Q235: Ordinary carbon steel with good ductility and weldability, high cost performance and most widely used.
Q355: High strength low alloy steel with excellent low temperature resistance, used for heavy load structures.
SS400, A36, S235JR: International standard equivalent steel grades.
4.2 Chemical Composition of Q235 (Max %)
Carbon: 0.22, Silicon: 0.35, Manganese: 1.40, Phosphorus: 0.045, Sulfur: 0.050
5. Mechanical Properties (Q235)
Yield Strength: ≥235MPaTensile Strength: 370-500MPaElongation: ≥26%180-degree cold bending test qualified
6. Execution Standards
Hot rolled angle steel: GB/T 706-2016Cold formed angle steel: GB/T 6723-2017Steel acceptance and packaging standard: GB/T 2101-2017
7. Product Advantages
Stable structure with good bending and torsion resistance and strong bearing capacity.
Easy processing including cutting, welding, drilling and bending.
Light weight, low cost and high economic efficiency.
Complete specifications to meet various installation and load requirements.
8. Application Fields
Building frames, factory structures, stair handrails, curtain wall supports, bridges, power transmission towers, mechanical equipment brackets, pipeline supports, warehouse shelves, ship components and other engineering construction projects.
9. Quality Standard
Strict size tolerance control, no cracks, folds, inclusions and other surface defects. Galvanized layer is uniform and firm. Products are bundled for delivery with complete product labels and factory certificates.
10. Selection Guide
Choose Q235 for light load projects, Q355 for heavy load and low temperature environments, and galvanized angle steel for outdoor anti-corrosion projects. Select appropriate specifications and fixed lengths according to actual construction demands.
Delivery Information
Delivery cycle: 5-7 working days
