Help CenterLong Thread Anchor Bolt 45mm Deep Foundation Fixing Anchor Bolt
Related Products
-
Supply of Small Conduits, Tunnel Small Conduit Lock Tips, Seamless Small Conduit Drilling ProcessingNegotiableMOQ: 1 Ton -
Supply of Pipe Sheds, Seamless Steel Pipes for Tunnel Pipe Sheds, Advanced Large Pipe Shed Support PipesNegotiableMOQ: 1 Ton
-
Building Foundation Pit Grouting Pipes, 108 High-pressure Grouting Pipes, Foundation Reinforcement Grouting PipesNegotiableMOQ: 1 Ton
-
Umbrella Pipe 2 Inch Carbon Steel Grouting Pipe 89 for Tunneling Construction and ForepolingNegotiableMOQ: 1 Ton
-
Geological Pipe Sheds 108 Exported Packaging Standard Manufacturer of Steel Smooth Industry Round Hot RolledNegotiableMOQ: 1 Ton
Product Display
PRODUCT SPECIFICATIONS
Self drilling anchor bar with R25, R32, R38, R51, T30, T40, T52, T73, T76 etc.
Plate Specification
Type |
Size(mm) |
Thickness(mm) |
Hole diameter(mm) |
Weight(kg) |
R25N |
150x150 |
8 |
30 |
1.4 |
R32L,R32N |
200x200 |
10 |
35 |
3 |
R32S, R32SS |
200x200 |
12 |
35 |
3.3 |
R38N |
200x200 |
12 |
41 |
3.6 |
R51L |
200x200 |
30 |
60 |
8.8 |
R51N |
250x250 |
40 |
60 |
18.5 |
T30 |
200x200 |
8 |
36 |
2.46 |
T40-20mm |
200x200 |
12 |
54 |
3.5 |
T40-16mm |
200x200 |
15 |
54 |
4.58 |
T52 |
220x220 |
35 |
65 |
12.1 |
T73 |
250x250 |
40 |
80 |
18 |
T76 |
250x250 |
40 |
80 |
18 |
T103 |
300x300 |
50 |
110 |
32.6 |
Coupler Specification
Type |
Outside Diameter(mm) |
Length(mm) |
Weight |
R25 |
36 |
150 |
0.6 |
R32L |
42 |
145 |
0.72 |
R32N |
42 |
160 |
0.8 |
R32S, R32SS |
42 |
190 |
0.96 |
R38 |
52 |
220 |
1.8 |
R51L |
63 |
140 |
1.26 |
R51N |
63 |
200 |
1.9 |
T30 |
38 |
105 |
0.42 |
T40-20mm |
54 |
140 |
1.15 |
T40-16mm |
57 |
140 |
1.54 |
T52 |
70 |
160 |
2.3 |
T73 |
95 |
235 |
4.3 |
T76N |
95 |
200 |
4.3 |
T76S |
9 |
220 |
5.35 |
T103 |
123 |
255 |
7.45 |
Self Drilling Hollow Grouting Anchor Bar specification
Type |
Inner diameter |
Ultimate load |
Yield load capacity |
Weight |
||||
(mm) |
capacity(KN) |
(KN) |
(KG) |
|||||
R Thread |
||||||||
R25N |
14 |
200 |
150 |
2.3 |
||||
R32N |
21 |
280 |
230 |
2,9 |
||||
18.5 |
280 |
230 |
3.4 |
|||||
R32S |
16 |
360 |
280 |
3.6 |
||||
R32SS |
15.5 |
405 |
350 |
3.8 |
||||
R38N |
21 |
500 |
400 |
4.8 |
||||
19 |
500 |
400 |
5.5 |
|||||
R51L |
36 |
550 |
450 |
7 |
||||
R51N |
33 |
800 |
630 |
8.4 |
||||
T Thread |
||||||||
T30 |
11 |
320 |
260 |
3.41 |
||||
14 |
275 |
220 |
2.87 |
|||||
16 |
245 |
190 |
2.7 |
|||||
T40 |
16 |
660 |
525 |
6.6 |
||||
20 |
540 |
425 |
5.6 |
|||||
T52 |
26 |
925 |
730 |
9.87 |
||||
T73 |
53 |
1160 |
970 |
14.2 |
||||
56 |
1035 |
830 |
10.75 |
|||||
45 |
1585 |
1270 |
17.8 |
|||||
35 |
1865 |
1430 |
21.2 |
|||||
T76S |
45 |
1900 |
1500 |
19.7 |
||||
T76N |
51 |
1600 |
1200 |
15 |
||||
T103 |
78 |
2270 |
1800 |
25.3 |
||||
51 |
3660 |
2670 |
44.6 |
|||||
T111L |
82 |
2640 |
2000 |
25 |
||||
T111N |
75 |
3650 |
2750 |
34.5 |
||||
T127 |
111 |
2320 |
2030 |
28.9 |
||||
T130 |
60 |
7940 |
5250 |
75 |
||||
Nut Specifications
Type |
Key size(mm) |
Length(mm) |
Weight(kg) |
R25N |
41 |
35 |
0.25 |
R32L, R32N |
46 |
45 |
0.35 |
R32S,R32SS |
46 |
65 |
0.53 |
R38N |
50 |
60 |
0.5 |
R51L, R51N |
75 |
70 |
1.5 |
T30 |
46 |
35 |
0.36 |
T40 |
65 |
50 |
0.85 |
T52 |
80 |
70 |
2.35 |
T73 |
95 |
70 |
2.2 |
T76 |
100 |
80 |
2.66 |
T103 |
125 |
80 |
3.42 |
Bit Specification
Type |
Specification |
Material |
Weight(kg) |
Height(mm) |
|
Steel Cross bit(EX) |
R25 / D42mm |
42CrMo |
0.28 |
56 |
|
R32 / D45mm |
42CrMo |
0.31 |
56 |
||
R32 /D51mm |
42CrMo |
0.36 |
56 |
||
R38/D76mm |
42CrMo |
12 |
80 |
||
R38 /D90mm |
42CrMo |
1.53 |
80 |
||
R51 /D115mm |
42CrMo |
3.61 |
100 |
||
T30/ D51mm |
42CrMo |
0.41 |
56 |
||
T40 / D76mm |
42CrMo |
1.21 |
80 |
||
T76/ D130mm |
42CrMo |
3.92 |
100 |
||
T76/ D150mm |
42CrMo |
6.1 |
110 |
||
Cross button bit(EXX) |
R25 /D42mm |
40CR |
0.3 |
58 |
|
R32/ D45mm |
40CR |
0.38 |
56 |
||
R32 / D51mm |
40CR |
0.42 |
56 |
||
R38 / D76mm |
40CR |
1.27 |
85 |
||
T30/ D51mm |
40CR |
0.42 |
56 |
||
T40/D76mm |
40CR |
1.27 |
80 |
||
T40/D90mm |
40CR |
21 |
90 |
||
R51 /D100mm |
40CR |
3.2 |
90 |
||
R51 /D115mm |
40CR |
3.5 |
100 |
||
T76/ D130mm |
40CR |
3.61 |
100 |
||
T76/ D150mm |
40CR |
6.27 |
125 |
||
Drill button bit(ESS) |
R25 / D42mm |
40CR |
0.33 |
60 |
|
R32/ D45mm |
40CR |
0.35 |
60 |
||
R32/ D51mm |
40CR |
0.49 |
60 |
||
R38/D76mm |
40CR |
1.447 |
82 |
||
R38/ D90mm |
40CR |
2.73 |
100 |
||
R51/D100mm |
40CR |
2.81 |
100 |
||
R51 /D115mm |
40CR |
3.72 |
110 |
||
T76/ D130mm |
40CR |
6.78 |
120 |
Note:We can produce other standard as the customers' requirement
Product spotlights
Feature highlights

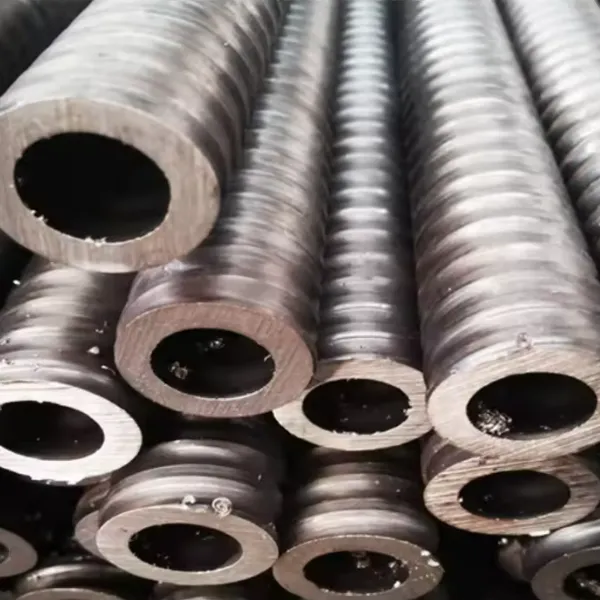

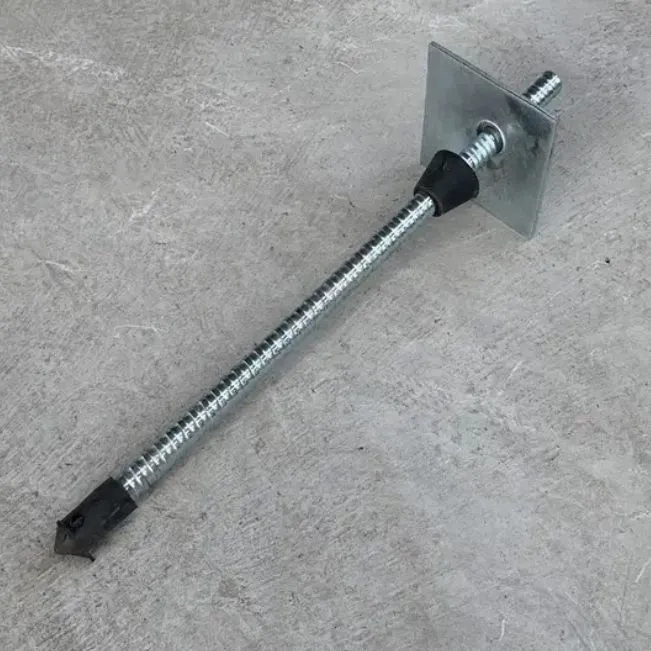

The self-drilling hollow anchor bar offers fast drilling and installation by combining drilling, anchoring, and grouting in one
step. Its hollow core allows for debris removal during drilling and immediate grout injection, ensuring efficient performance.
Made from robust Q235 carbon steel, it features continuous threads for customizable length adjustments and is suitable for tunnel pre-support, slope stabilization, and mining projects.
Our Advantages
1.Own Factory with 10+ years Industry Experience2.Advanced Manufacturing Equipment
3.Skilled Research &Development Department
4.Full-time Quality Control Department
5.Reliable Pre-sales&After-sales Service Department
6.Competitive Price,Superior Quality and On-time Deliery
Packaging & Shipping
1. Q: Are you manufacture or trade company?
A: We are manufacture specialized in steel casing pipes, we have 1 facotory in China, welcome to visit us at any time.And also we have own trading department to export goods.
2. Q: How can I get the samples?
A: If you need some samples to test, we can send small free pipe sampe.You should pay for the transportation freight fee only.
3. Q: How much the transportation freight of samples?
A: The freight depends on the weight and packing size and your area.
4. Q: How long can I expect to get the sample?
A: The samples will be ready for delivery within one week. The samples will be sent via express and arrive in 4-7 days.
5. Q: Can we have our Logo or company name to be printed on your products or package?
A: Sure. Your Logo can be print on your pipes when your quantity is reach our requirement.
