Product Overview

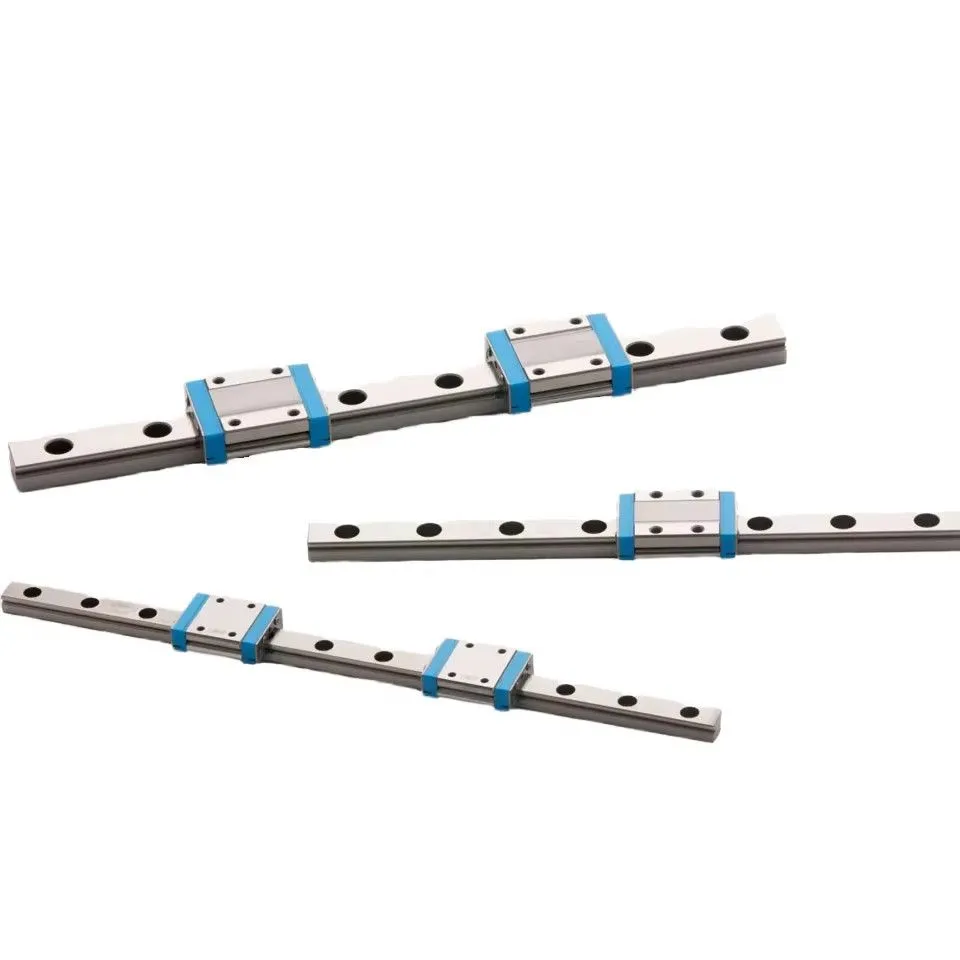

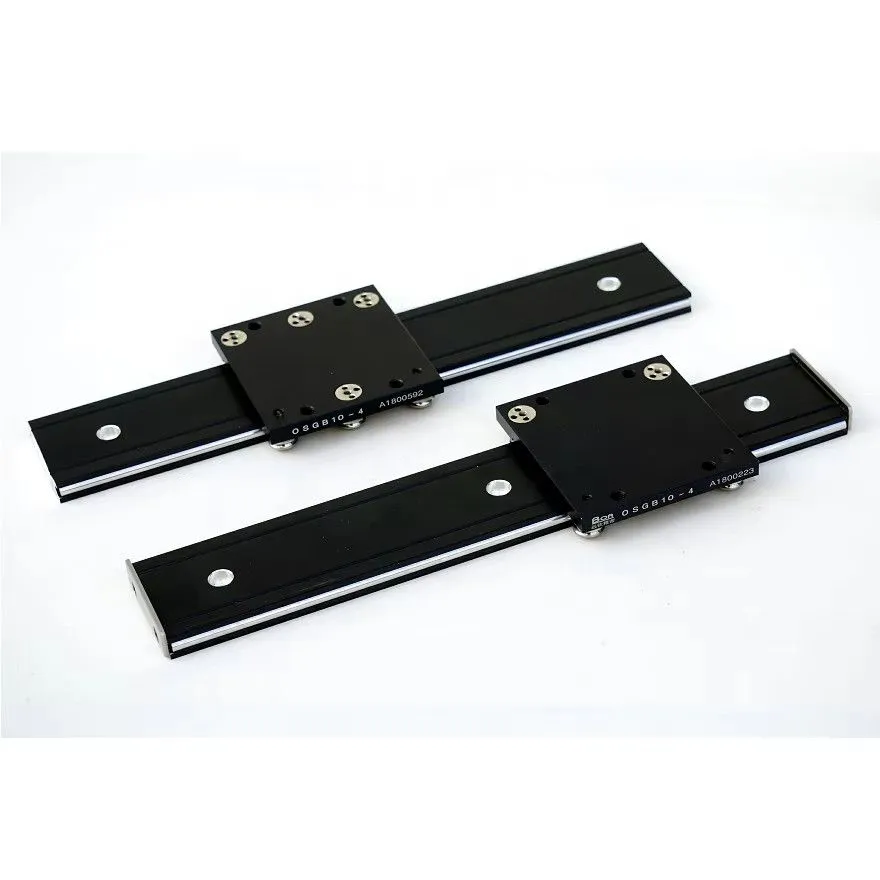

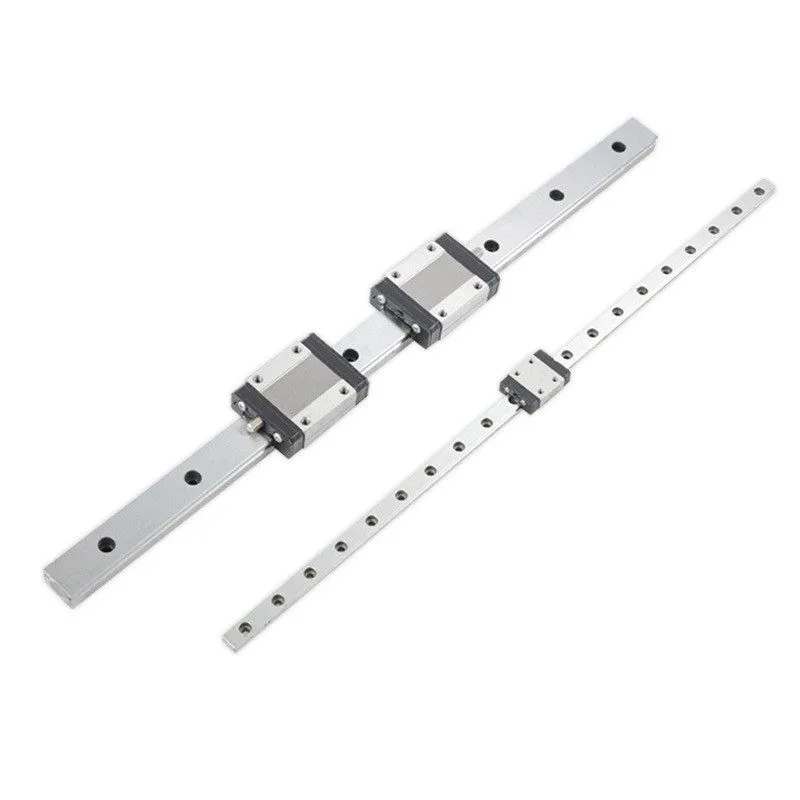

Linear Guide Rail (also called Linear Motion Guide) is a high-precision linear transmission component, composed of guide rail and slider. It provides smooth, stable and high-accuracy linear movement, with strong load-bearing capacity, low friction and long service life. Widely used in CNC machines, automation equipment, 3D printers, robotic arms and precision instruments, it is the core part to ensure the stability and precision of mechanical movement.
Technical Parameter Table
Model |
Rail Width (mm) |
Slider Width (mm) |
Height (mm) |
Length Range (mm) |
|---|---|---|---|---|
MGN12 |
12 |
20 |
8 |
100-2000 |
HGR20 |
20 |
45 |
25 |
200-4000 |
HGR25 |
25 |
55 |
30 |
200-4000 |
HGR30 |
30 |
68 |
38 |
300-6000 |
HGW20 |
20 |
45 |
28 |
200-4000 |
Key Features
High positioning accuracy, stable linear motion without deviation
High rigidity and heavy load-bearing capacity, suitable for heavy-duty work
Low friction coefficient, smooth operation, low noise
Dust-proof design, adaptable to harsh industrial environments
Easy installation, interchangeable with mainstream brands
Customizable length and preload level
Material & Processing
Rail: High-carbon bearing steel (GCr15) / Stainless steel
Slider: High-strength alloy steel
Hardness: HRC 58-62 (after heat treatment)
Surface: Precision grinding + Anti-rust plating
Cage: Steel or engineering plastic
Our Advantages:
1. World-Class Bearing: We provide our customers with all types of indigenous bearing with world-class quality.
2. OEM or Non-Stand Bearings: Any requirement for Nonstandard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
3. Genuine products With Excellent Quality: The company has always proved the 100% quality products it provides with genuine intent.
4. After Sales Service and Technical Assistance: The company provides after-sales service and technical assistance as per the customer's requirements and needs.
5. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
SAMPLES
1. Samples quantity: 1-10 PCS are available.
2. Free samples: It depends on the Model No., material and quantity. Some of the bearings samples need client to pay samples charge and shipping cost.
3. It's better to start your order with Trade Assurance to get full protection for your samples order.
CUSTOMIZED
The customized LOGO or drawing is acceptable for us.
MOQ
1. MOQ: 10 PCS standard bearings.
2. MOQ: 1000 PCS customized your brand bearings.
OEM POLICY
1. We can printing your brand (logo, artwork)on the shield or laser engraving your brand on the shield.
2. We can custom your packaging according to your design
3. All copyright own by clients and we promised don't disclose any info.
