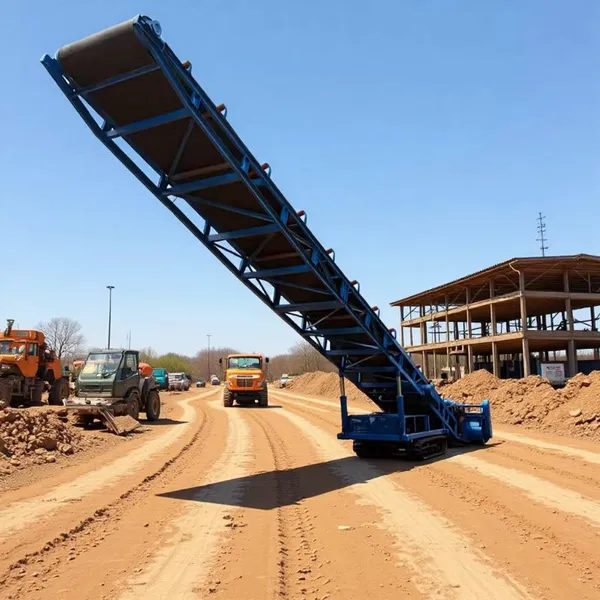

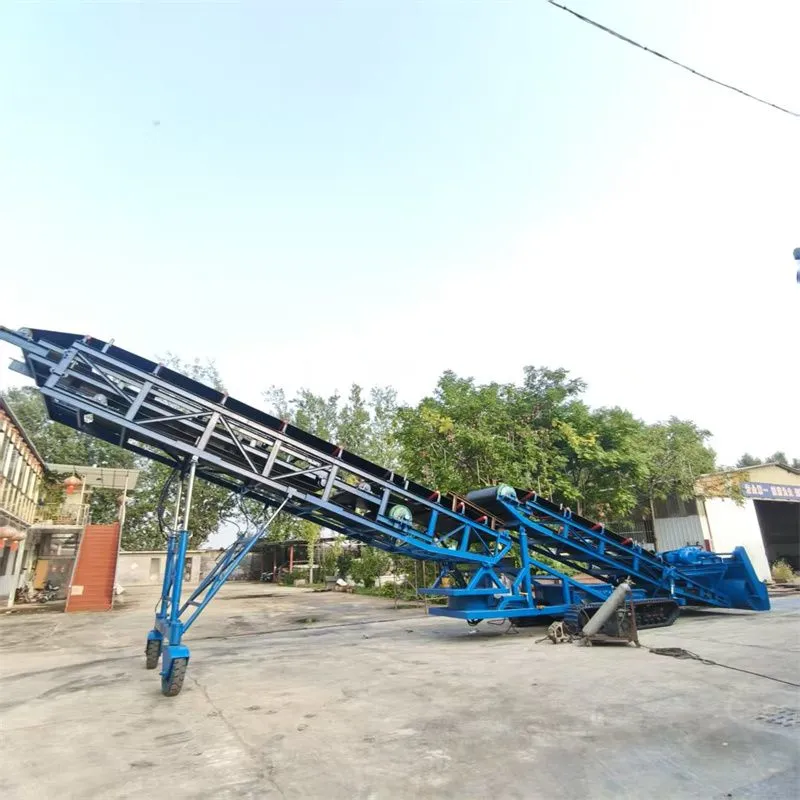

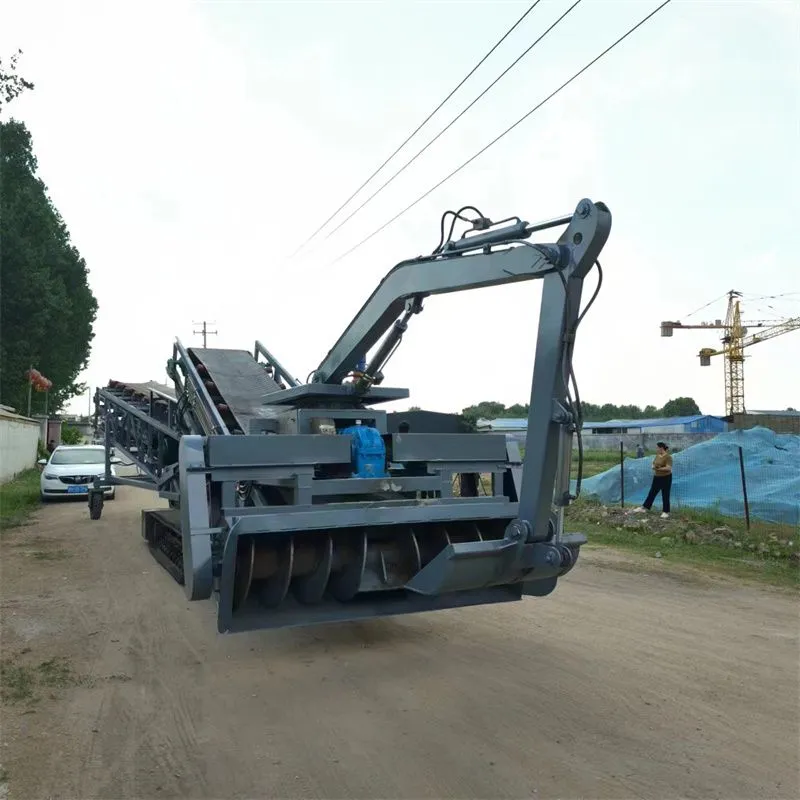

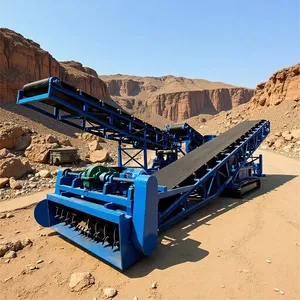

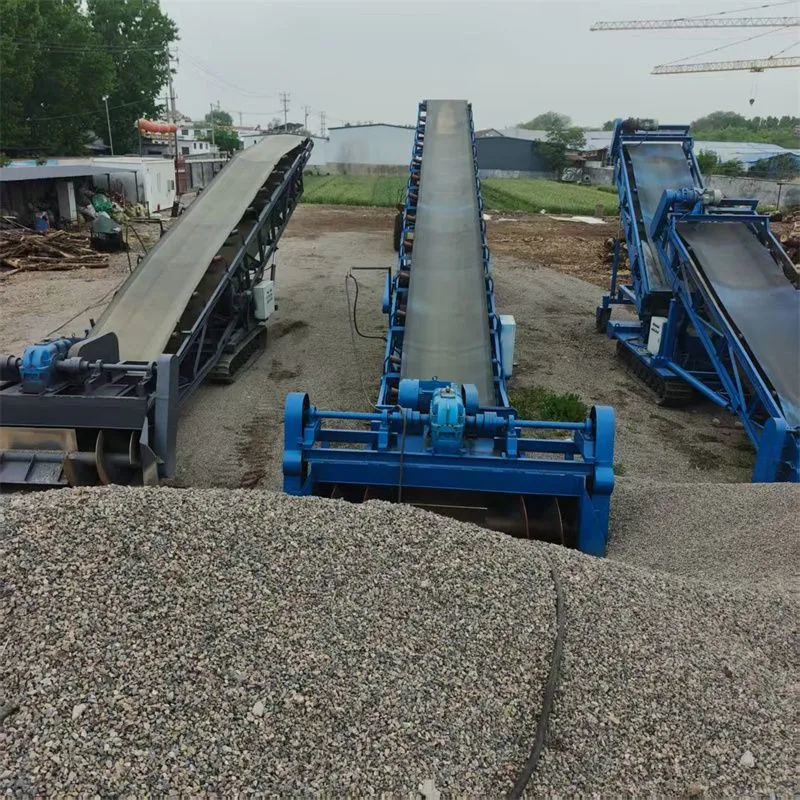

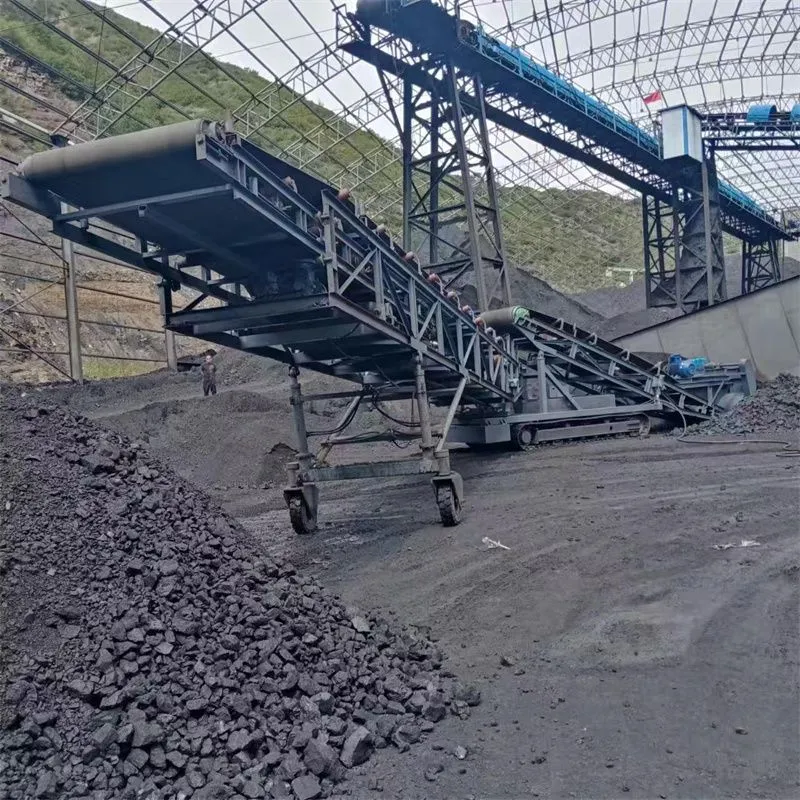

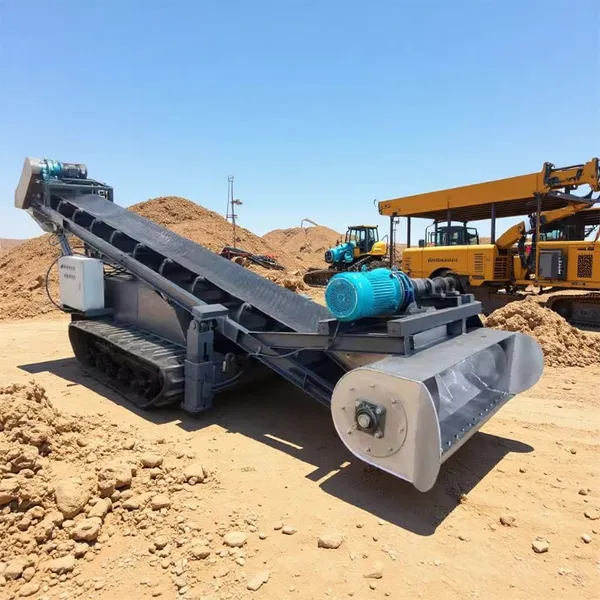

The (belt) scraper, also known as the scraper conveyor, is a traditional innovative and large-scale material conveying equipment formed by integrating screw machines (winches), belt conveyors, self-propelled chassis and other equipment. It has a wide range of applications, rich styles, and is suitable for various materials (especially hard materials). At the same time, it has rich and convenient scalability, high efficiency, and truly achieves the balance and unity of ease of use, practicality, and ease of use.

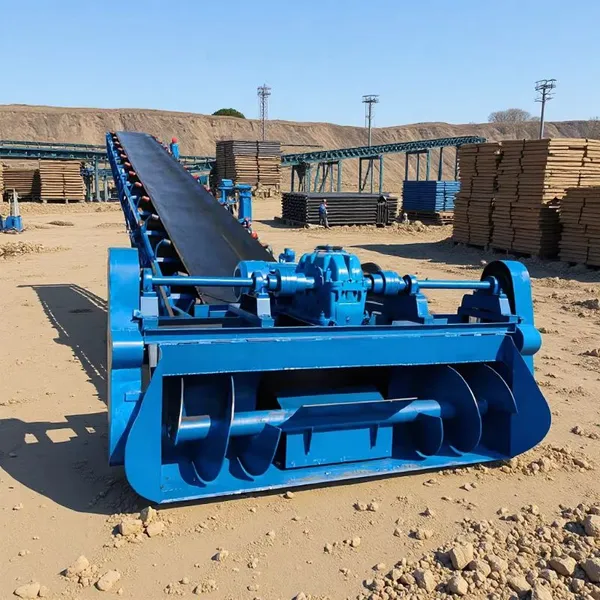

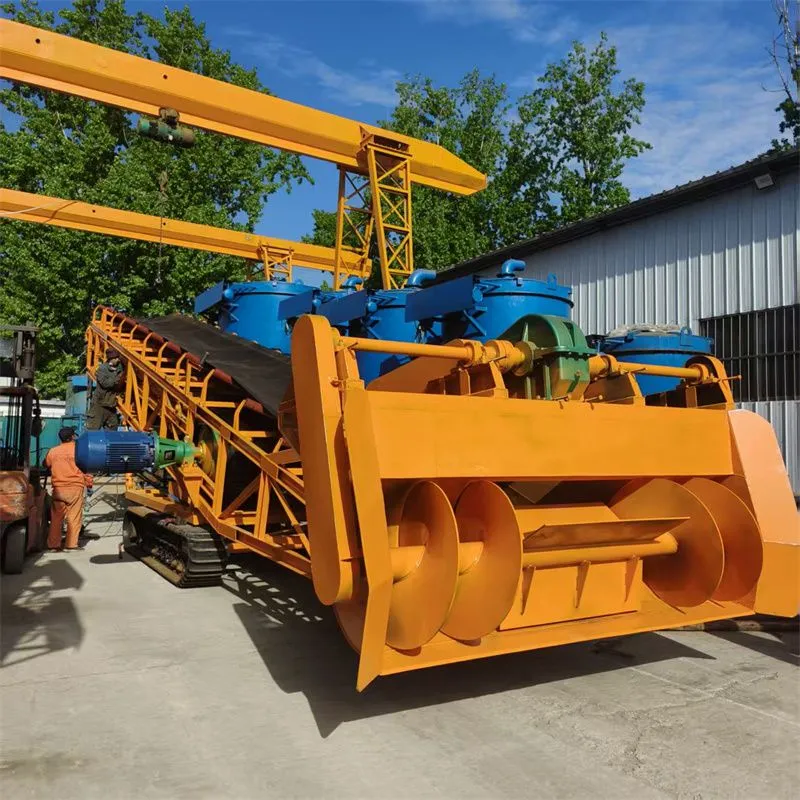

The machine is equipped with a scraping (feeding) system (horizontal semi open, large-diameter screw conveyor); Conveyor system (one or more belt conveyors, which can be equipped with functions such as extension, rotation, and lifting); Walking system (track chassis, walking wheels, etc.); It consists of auxiliary systems (integrated electrical control box, hydraulic station, etc.) and other components. Usually, each system is driven by independent motors and reducers, and various cables are collected in an integrated electrical control box. If necessary, wireless remote control devices can be optionally installed. According to different user needs, our company also provides supporting components such as cleaners, discharge hoppers, sealing plates, frequency converters, counters, etc. According to different classification standards, this machine has multiple types and specifications.
According to the width of the conveyor belt, this machine has models such as 500mm, 600, 650, 800, 1000, 1200, etc.

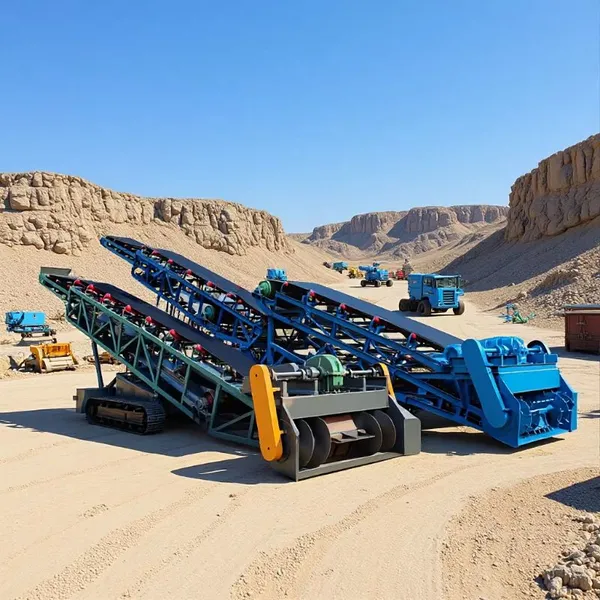

According to the type of movement, the machine can be divided into rubber track type, steel track type, wheeled walking type and other models.
According to the spiral diameter, this machine can be divided into models such as 325mm, 500, 700, etc.
