Help CenterNFC 17-102 Copper Clad Earth Rod 14mm 16mm 1.5m 2m French Standard Lightning Protection
Product Spotlights
Related Products
-
Copper Clad Steel Ground Rod 10mm x 1000mm 1200mm 1500mm Light Duty Earthing ElectrodeUS$ 8 - 25MOQ: 100 Kilograms -
Copper Bonded Earth Rod 12.5mm 1/2" x 1200mm 1500mm 1800mm Residential Earthing GradeUS$ 8 - 25MOQ: 100 Kilograms
-
Copper Clad Ground Rod 14.2mm 5/8" x 1200mm 1500mm 2400mm Standard Earthing ElectrodeUS$ 8 - 25MOQ: 100 Kilograms
-
Copper Bonded Steel Rod 17.2mm 3/4" x 1500mm 1800mm 2400mm 3000mm Heavy Duty EarthingUS$ 8 - 25MOQ: 100 Kilograms
-
Solid Copper Earth Rod 19mm 3/4" x 1500mm 2000mm 2400mm 3000mm Substation Grid GradeUS$ 8 - 25MOQ: 100 Kilograms
Product Description:

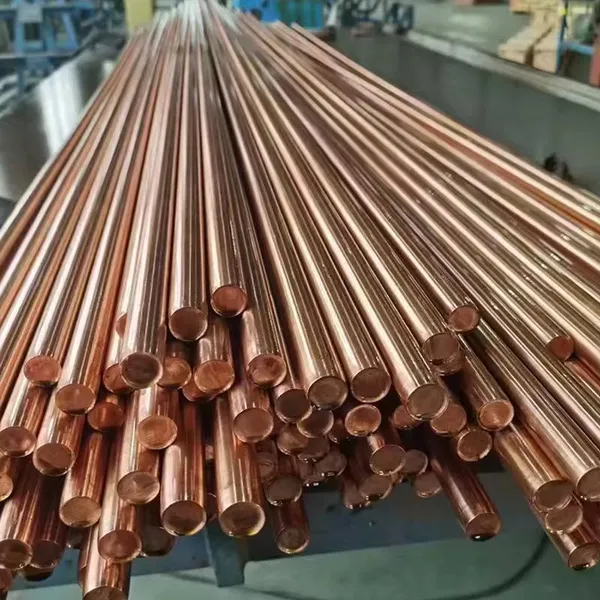

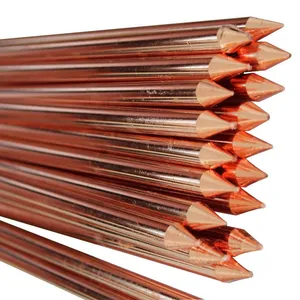

This NFC 17-102 copper clad earth rod is available in diameters 14mm and 16mm with lengths of 1.5 meters and 2 meters, manufactured to French Standard specifications for lightning protection systems. NFC 17-102 certification is specifically recognized for early streamer emission (ESE) lightning protection systems as well as conventional lightning protection installations in the French market. Typical applications include lightning protection for historic buildings in France, industrial facilities, airports, telecommunication towers, commercial buildings, and any French or French-standard project requiring NFC 17-102 certified copper clad earth rods.
Key Specifications (Copper Ground Rod)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM B2, B187, BS 7430, IEC 62561-2, UL 467 |
Others on request |
Material |
C11000 (ETP) / C10200 (OFC) |
Copper purity ≥99.9% |
Diameter |
1/2″, 5/8″, 3/4″, 1″ (12.7mm – 25.4mm) |
Custom on request |
Length |
1.5m, 2.4m, 3m, or custom |
Threaded / pointed ends |
Surface |
Bright, clean, smooth |
Also available tinned |
Tensile Strength |
≥200 MPa |
– |
Conductivity |
≥101% IACS |
– |
Testing |
PMI, tensile, straightness, conductivity |
Mill cert provided |
Packaging |
Bundled with plastic caps, steel strapped, wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
