Help Center17-4PH SS Round Bar for Aerospace Turbine Shaft Gear AMS 5643 H900 25mm 50mm 75mm
Product Spotlights
Related Products
-
316L SS Flat Bar for Food Processing Equipment Frame Structure ASTM A276 FDA HygienicUS$ 2.85 - 4.15MOQ: 100 Kilograms -
440C SS Round Bar for Bearing Ball Race Ring Mold ASTM A276 20mm 25mm 50mm 75mm GradeUS$ 1.35 - 4.25MOQ: 100 Kilograms
-
316 SS Threaded Rod for Marine Offshore Anchor Bolt M12 M16 M20 M24 ASTM F593 GradeUS$ 2.85 - 4.15MOQ: 100 Kilograms
-
304 SS Precision Ground Bar for Linear Shaft Guide Rail 6mm 8mm 10mm 12mm 16mm 20mmUS$ 1.85 - 4.55MOQ: 100 Kilograms
-
2507 SS Bar for Subsea Valve Body Pump Housing ASTM A276 UNS S32750 50mm 75mm 100mmUS$ 3.15 - 4.55MOQ: 100 Kilograms
Product Description:

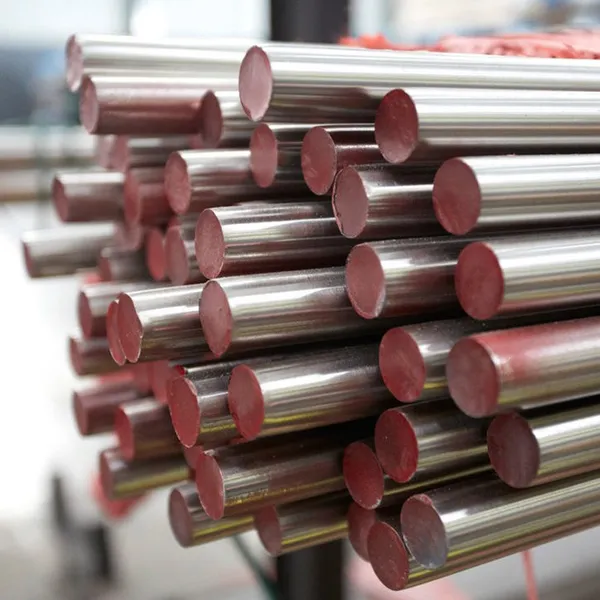

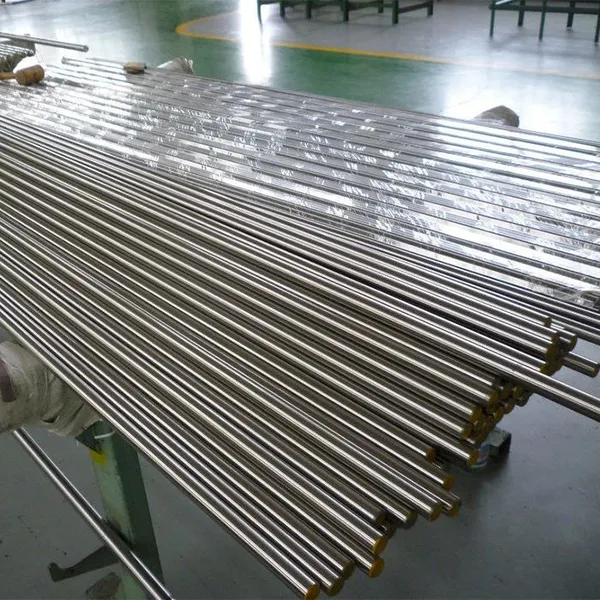

This 17-4PH precipitation hardened stainless steel round bar is available in diameters 25mm, 50mm, and 75mm, certified to AMS 5643 with H900 heat treatment for maximum strength. The alloy achieves yield strength up to 190 ksi (1310 MPa) with excellent fatigue resistance and good corrosion resistance comparable to 304. Typical applications include aerospace turbine shafts, high-performance gears, aircraft structural fittings, missile components, pump shafts for high-pressure systems, landing gear parts, and any aerospace or high-performance application requiring ultra-high strength with moderate corrosion resistance.
Key Product Specifications (Stainless Steel Bar)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A276, A479, EN 10088-3, JIS G4303 |
Others on request |
Grades |
304, 304L, 316L, 316Ti, 321, 310S, 2205, 904L |
Duplex & super austenitic available |
Product Forms |
Round, square, flat, hexagonal |
Angle & channel also available |
Size Range (Round) |
Diameter: 6 mm – 300 mm |
– |
Size Range (Flat) |
Thickness: 3–50 mm; Width: 10–200 mm |
– |
Size Range (Hex) |
Across flats: 8 mm – 100 mm |
– |
Length |
3m / 6m / 12m, or custom cut |
– |
Surface Finish |
Black, bright drawn, peeled, ground, polished |
– |
Tolerances |
Per ASTM A484 |
Precision tolerance available |
Testing |
PMI, Tensile, Hardness, UT (optional) |
Mill cert provided |
Packaging |
Bundled with steel straps, wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
