As a specialized manufacturer established in 2014, Henan San Kuang Machinery Technology leverages its 10,000-30,000 sqm facility to produce precision-engineered gantry CNC machining transmission accessories. Our custom solutions serve diverse industrial applications across North America, Europe, and Asia, with an annual export value of US$2.5-5 million. These transmission components enable seamless power transfer in automated systems while maintaining positioning accuracy under heavy loads.
Key technical specifications include:
- Precision Tolerance: Maintains ±0.02mm dimensional accuracy
- Load Capacity Range: 500kg to 20,000kg configurations
- Surface Hardness: 45-60 HRC through heat treatment
- Corrosion Resistance: Optional nickel plating or powder coating
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Module Size | 2-10 mm | Up to 20 mm |
| Transmission Ratio | 1:1 to 1:5 | 1:10 available |
| Operating Temperature | -20°C to 120°C | High-temp variants |

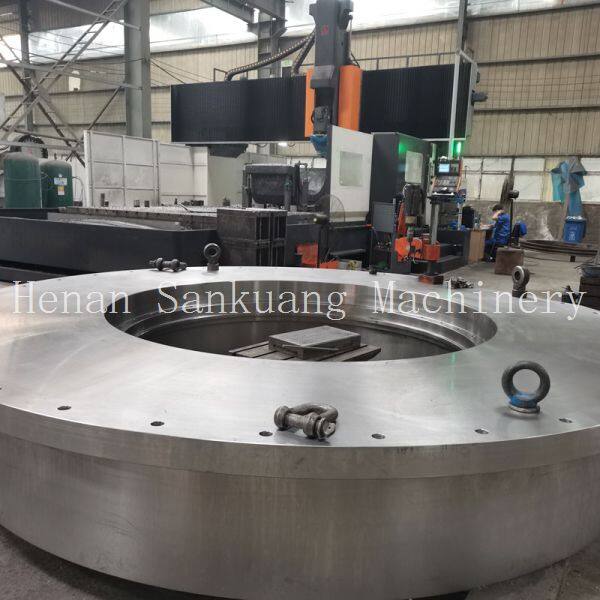

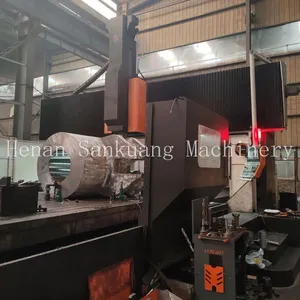

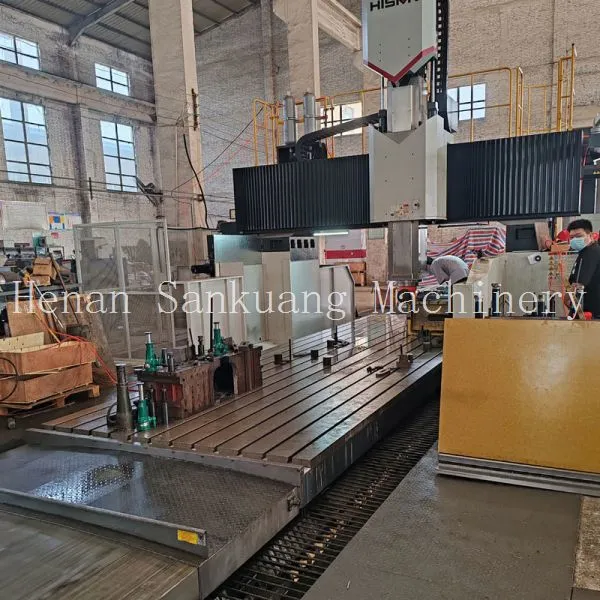

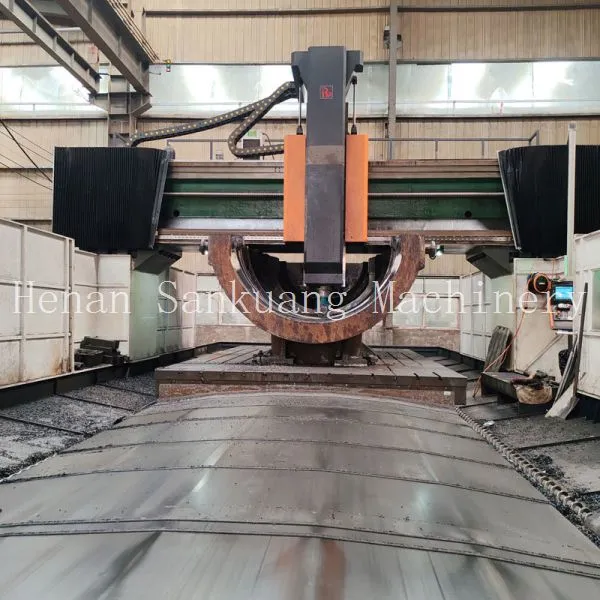

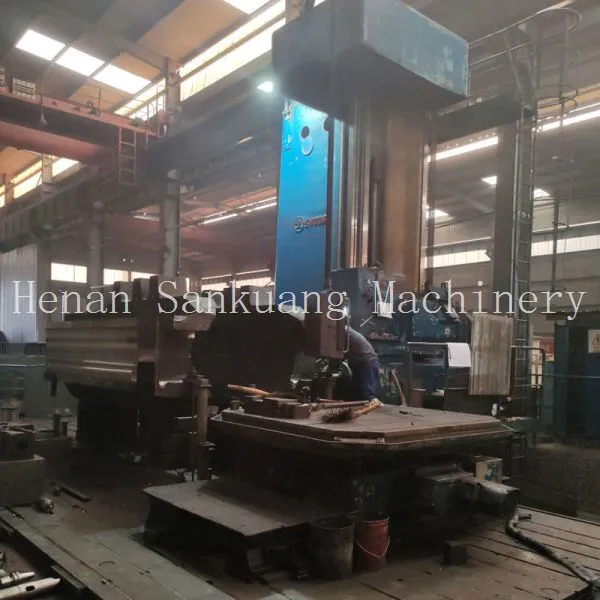

Our proprietary manufacturing process incorporates 5-axis CNC machining centers capable of producing complex geometries from customer-provided drawings. The components undergo rigorous quality checks including coordinate measuring machine (CMM) verification and dynamic balance testing. This ensures vibration levels remain below 4.5 mm/s during high-speed operation, significantly extending equipment service life.
With ISO 9001, ISO 14000, and OHSAS 18001 certifications, our 51-100 member engineering team delivers drawing-based solutions to clients in 14 global markets. Ports of Shanghai, Qingdao, and Tianjin facilitate efficient export logistics. The transmission accessories feature:
- Backlash minimization down to 5 arc-min
- Interchangeable mounting interfaces
- Modular design for maintenance efficiency
- Lubrication-free operation up to 10,000 hours
FAQ Section:
Q: What file formats do you accept for custom drawings?
A: We support .DWG, .DXF, .STEP, and .IGES formats with 3D model compatibility.
Q: What is your typical lead time for custom orders?
A: Standard lead times range from 25-40 days depending on complexity.
Q: Do you provide material certification?
A: Material test reports with traceability are included with shipments.
Q: Can you replicate existing worn components?
A: Yes, we offer reverse engineering services for legacy part replacement.
Q: What packaging standards do you use?
A: Components are vacuum-sealed and crated with desiccant for international shipping.
Q: How do you handle quality disputes?
A: Our quality team provides dimensional inspection reports prior to shipment.
Leveraging our 9-year manufacturing expertise and US$2.5-5 million annual export volume, we guarantee transmission solutions that enhance CNC equipment reliability. Our certifications including ISO 16949 demonstrate commitment to automotive-grade precision. Contact us today to discuss your specific gantry system requirements and benefit from our OEM-level engineering support.
