Description
Relife RL-014 RL-014A RL-014F UV Curing Lamp for Mobile Phone Motherboard Repair. Fast curing, suitable for shadowless glue, optical glue, green oil, resin glue, ink, UV oil, etc. Relife portable rechargeable UV curing lamp uses high-efficiency UV LED beads and a wireless design. It is lightweight and has an optimized heat dissipation structure.
Option:
1. RELIFE RL-014 UV curing lamp: USB interface.
2. RELIFE RL-014A UV curing lamp: USB interface.
3. RELIFE RL-014F UV curing lamp: built-in battery, type-C interface.
Features

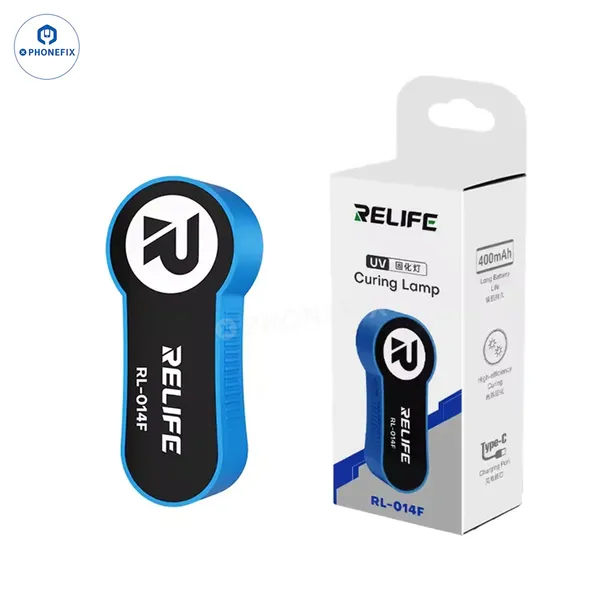

Model: RELIFE RL-014F UV curing lamp
1. Fast and efficient curing; built-in 400mAh battery; Type-C charging port.

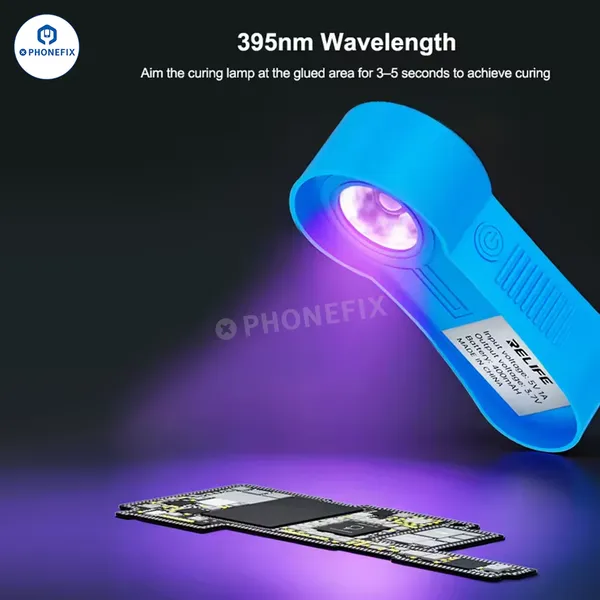

2. Equipped with dual 395nm LEDs; simply point the curing lamp at the bonding area for 3-5 seconds to cure.
3. Suitable for UV-cured adhesives, optical adhesives, photosensitive green oils, resin adhesives, inks, green oils, UV oils, etc.
Model: RELIFE RL-014A UV curing lamp
1. High-power, multi-functional light source, rapid curing, suitable for UV adhesive/shadowless adhesive/optical adhesive/ink/resin adhesive curing/banknote verification/fluorescent agent detection.
2. Adjustable brightness levels: 100%, 60%, and 30%; automatic timer shutdown.
3. Uses imported high-quality T6 LEDs, energy-efficient, not prone to overload, safe, stable, and durable.
4. USB power interface, compatible with various devices, easy to use (computers, power banks, etc.).
5. Press and hold for 5 seconds to enter green light mode, press once for 30 seconds, press twice for 30 seconds, and so on.
6. Lightweight and wear-resistant aluminum alloy material, mesh for rapid heat dissipation, durable. The round tail rubber switch is made of environmentally friendly materials, comfortable to hold, and allows switching of light source modes.
Model: RELIFE RL-014 UV curing lamp
1. 5W, dual lamps, three adjustable light levels (high beam/low beam/flash), 10-second fast curing. 395 band, LG lamp beads, 1400mA current.
2. Mainly suitable for UV adhesives, optical adhesives, photosensitive green oil, resin adhesives, inks, etc.
3. Gemstone-grade lens, multi-segment focusing ring, waterproof rubber ring, silicone switch.
4. Mesh-type rapid heat dissipation effectively reduces heat generation and extends product life.

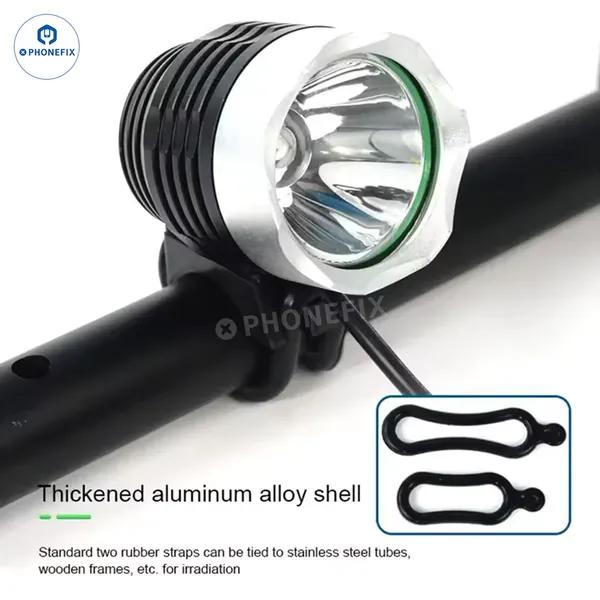

5. Standard configuration includes two rubber straps for attaching to stainless steel pipes, wooden frames, etc., for irradiation.
