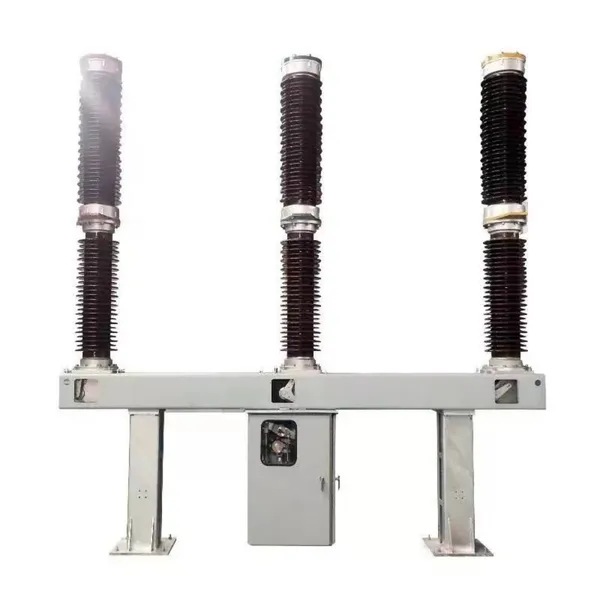

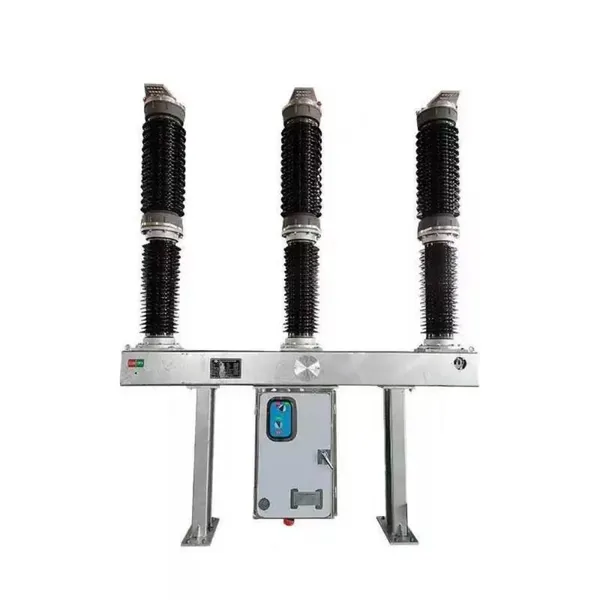

As a certified manufacturer with ISO9001 accreditation, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing SF6 Insulated High Voltage Equipment that meets rigorous international standards. Our annual export volume of US$1-1.5 million to diverse markets including North America, Europe, and Asia demonstrates our global reliability. Each unit includes a Factory Test Report and comprehensive Installation Guide, ensuring seamless deployment and operational excellence.
Core Advantages:
- SF6 gas insulation for superior dielectric strength and arc quenching
- Reduced maintenance requirements compared to air-insulated alternatives
- Compact design saving up to 70% space in substations
- Enhanced safety with fully enclosed live parts
Technical Specifications:
| Parameter | Standard Range |
| Rated Voltage | 72.5kV - 550kV |
| Rated Current | 2000A - 4000A |
| Short Circuit Withstand | 31.5kA - 63kA |
Our equipment undergoes rigorous quality control including partial discharge tests, dielectric tests, and mechanical operation checks documented in the provided test report. The installation guide contains:
- Step-by-step assembly diagrams
- SF6 gas handling procedures
- Commissioning checklist
- Troubleshooting matrix
With 11-50 skilled employees ensuring precision manufacturing and operations spanning four major Chinese ports, we deliver to over 15 global regions. This equipment has been deployed in:
- Urban substations requiring compact footprint
- Coastal areas with high salinity corrosion risks
- Mountainous regions with extreme temperature variations
FAQ:
Q: What environmental precautions are needed for SF6 equipment?
A: Our units feature hermetic sealing and pressure monitoring systems. Installation guides include EPA-compliant gas handling protocols.
Q: How does the factory test report benefit buyers?
A: It provides traceable verification of performance metrics, reducing commissioning time by approximately 40%.
Q: Are custom voltage ratings available?
A: Yes, our design team can develop solutions for 24kV to 800kV systems upon request.
Q: What after-sales support is provided?
A: We offer remote technical assistance and optional maintenance contracts with global response teams.
Q: How long is the typical delivery lead time?
A: Standard configurations ship in 8-10 weeks from Shanghai, Tianjin, Guangzhou, or Ningbo ports.
Q: Can existing air-insulated switchgear be retrofitted?
A: Site-specific feasibility studies are available through our engineering team.
Backed by ISO9001 certification and serving clients across six continents, Jinhua Dika delivers high-voltage solutions with uncompromised reliability. Our installation documentation has reduced customer deployment errors by 65% based on field data. Contact us today to discuss your project specifications and benefit from our 12-year manufacturing expertise.
