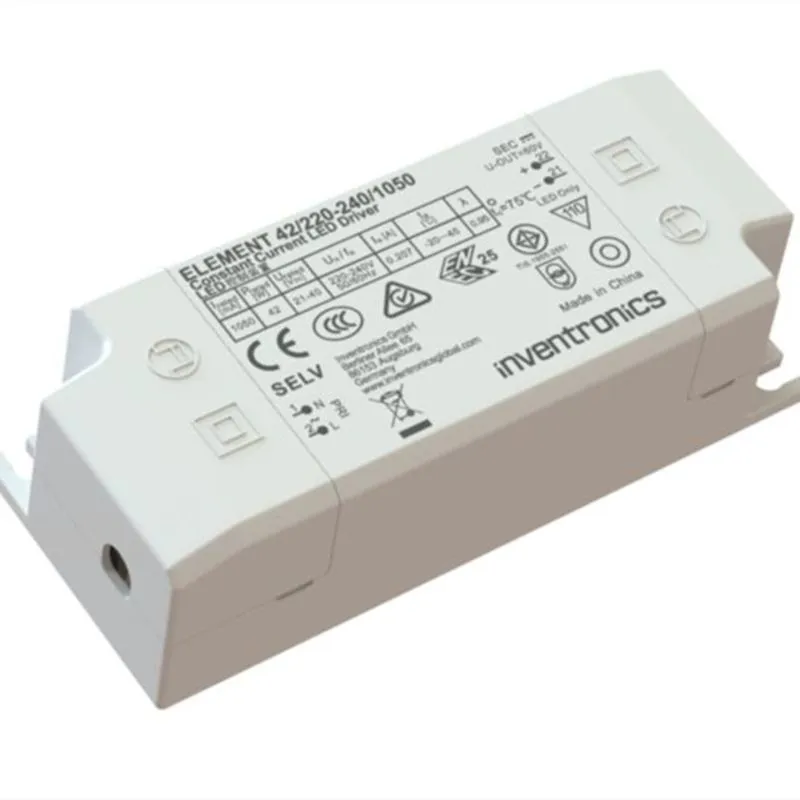

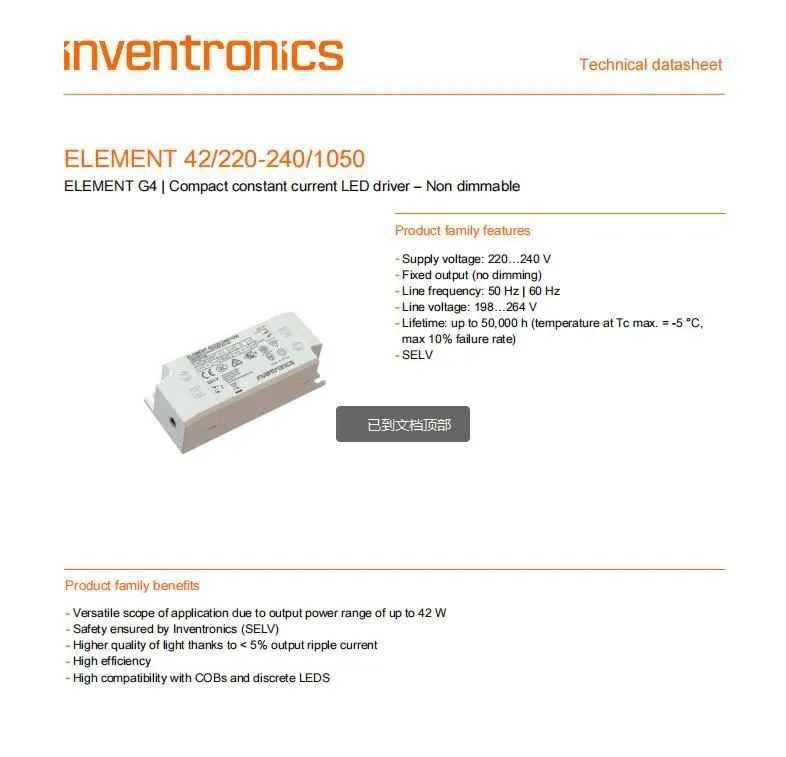

OSRAM LED Driver ELEMENT 42/220-240/1050
Product family features

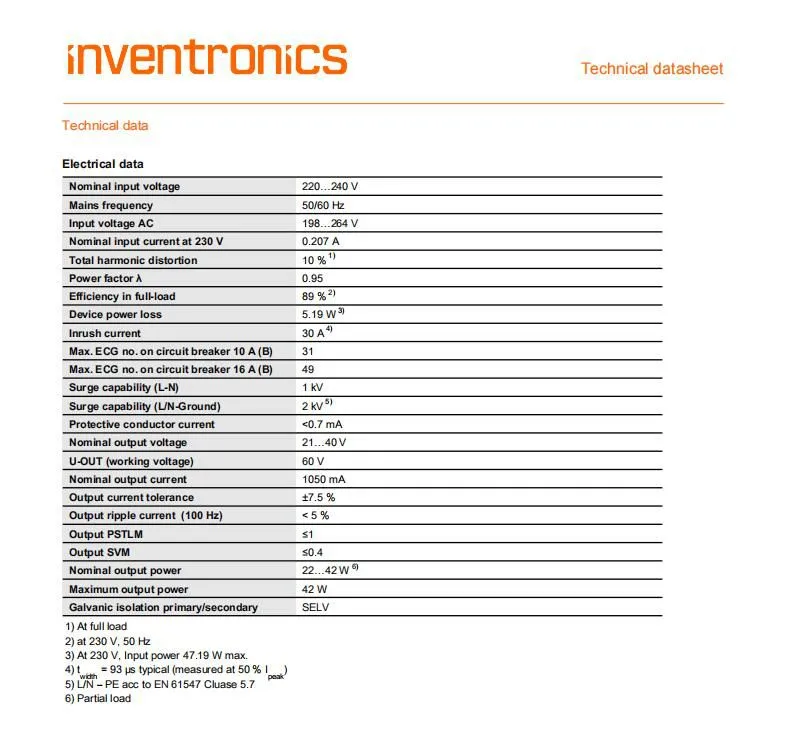

Supply voltage: 220…240 V
Fixed output (no dimming)
Line frequency: 50 Hz | 60 Hz
Line voltage: 198…264 V

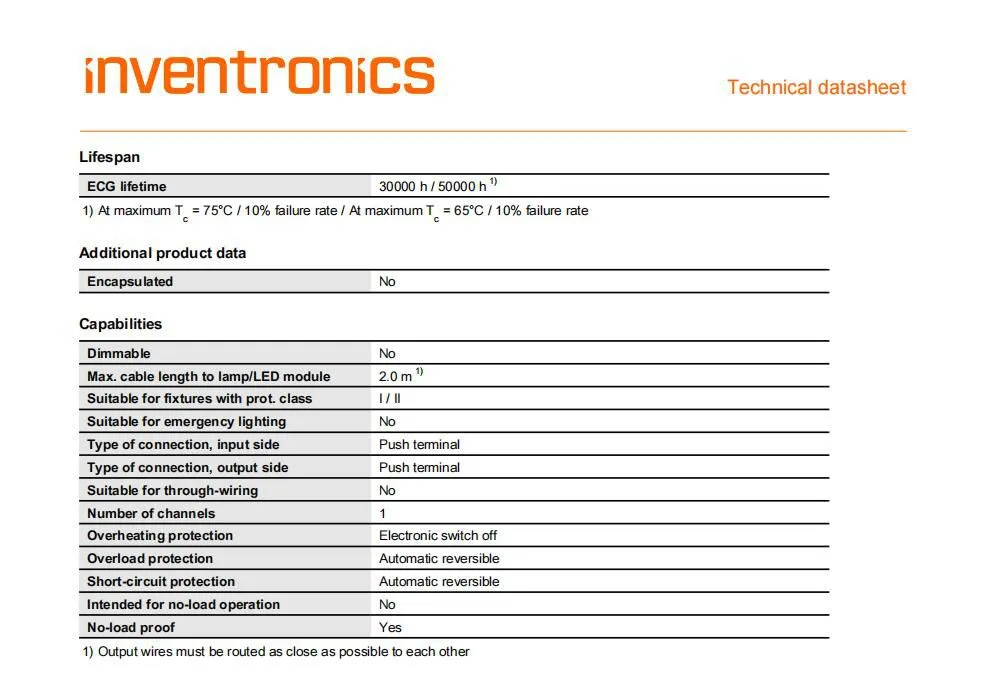

Lifetime: up to 50,000 h (temperature at Tc max. = -5 °C, max 10% failure rate)
SELV
Product family benefits
Versatile scope of application due to output power range of up to 42 W
Safety ensured by Inventronics (SELV)
Higher quality of light thanks to
High efficiency
High compatibility with COBs and discrete LEDS
Areas of application
Spot light and down light
Panels
Other Indoor LED luminaries
Suitable for downlights, spotlights and LED panels
Suitable for indoor SELV installations
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
OSRAM LED Driver order model：
ELEMENT 4/220-240/100 LPF
ELEMENT 6/220-240/150 LPF
ELEMENT 8/220-240/200 LPF
ELEMENT 10/220-240/250 LPF
ELEMENT 12/220-240/300 LPF
ELEMENT 15/220-240/350 LPF
ELEMENT 18/220-240/450 LPF
ELEMENT 6/220-240/150
ELEMENT 8/220-240/200
ELEMENT 10/220-240/250
ELEMENT 12/220-240/300
ELEMENT 15/220-240/350
ELEMENT 20/220-240/500
ELEMENT 25/220-240/600
ELEMENT 30/220-240/700
ELEMENT 33/220-240/800
ELEMENT 35/220-240/900
ELEMENT 38/220-240/950
ELEMENT 42/220-240/1050
