Help CenterVertical Peeler Centrifuge PLC Control Coal Sludge Treatment Centrifuge 50Hz/60Hz
Product Spotlights
Related Products
-
Vertical Scraper Centrifuge Fine Coal Dewatering Machine 30-50T/H Coal Washing PlantNegotiableMOQ: 1 Combo -
Vertical Scraper Centrifuge Mining Plant Dewatering Centrifuge 2000kg Load CapacityNegotiableMOQ: 1 Combo
-
Vertical Peeler Centrifuge Automatic Fine Coal Centrifuge 1600RPM for Coal PreparationNegotiableMOQ: 1 Combo
-
Vertical Peeler Centrifuge Coal Slurry Dewatering Centrifuge 0.5-2mm Particle SizeNegotiableMOQ: 1 Combo
-
Vertical Scraper Centrifuge Mining Slurry Dewatering Equipment 15-20% Moisture ContentNegotiableMOQ: 1 Combo
Founded in 2014, Henan San Kuang Machinery Technology Co., Ltd. operates from a 10,000-30,000 square meter facility in Luoyang, China, bringing over eight years of specialized engineering expertise to the industrial separation equipment market. Our Vertical Peeler Centrifuge with PLC Control represents cutting-edge technology for coal sludge treatment applications, designed to deliver exceptional moisture reduction and operational efficiency. Engineered for continuous heavy-duty operation, this centrifuge addresses critical dewatering challenges in coal processing plants while minimizing energy consumption and maintenance requirements.
Core Technical Specifications:
| Parameter | Specification |
|---|---|
| Bowl Diameter | 800-1500mm (customizable) |
| Motor Power | 15-75kW (model dependent) |
| Speed Range | 800-1800 rpm |
| Capacity | 5-30 tons/hour coal slurry |
| Residual Moisture | 8-15% (material dependent) |
Key Operational Advantages:
- Precision Control: Advanced PLC system with HMI interface enables programmable acceleration/deceleration curves, automated cake discharge sequencing, and real-time performance monitoring
- Robust Construction: Critical components manufactured from duplex stainless steel with hardened scraper blades for extended service life in abrasive coal slurry applications
- Energy Efficient Design: Regenerative braking system recovers kinetic energy during deceleration phases, reducing power consumption by up to 30% compared to conventional units
- Maintenance Optimization: Modular design with quick-disconnect bowls and cartridge-style bearing assemblies enables component replacement in under 4 hours
- Adaptive Dewatering: Automatic differential speed adjustment between bowl and conveyor maintains optimal G-force and residence time for varying feed concentrations
Global Compliance & Support:
With an annual export value of US$2.5-5 million and shipments from Shanghai, Lianyungang, Qingdao, and Tianjin ports, our centrifuges serve clients across 15 global markets including North America, Europe, and Southeast Asia. Certified to ISO9001, ISO14000, and OHSAS18001 standards, each unit undergoes rigorous factory acceptance testing before shipment. Our technical support team provides comprehensive commissioning assistance and maintains multilingual operation manuals along with critical spare parts inventory for worldwide distribution.
Frequently Asked Questions:
-
Q: What maintenance intervals are required?
A: Routine inspection every 500 operating hours with major service at 8,000-hour intervals -
Q: Can it handle variable feed concentrations?
A: Yes, the PLC system automatically adjusts parameters for feed solids between 15-45% -
Q: Are explosion-proof versions available?
A: ATEX-compliant models can be provided for hazardous area installations -
Q: What is the installation footprint?
A: Requires approximately 4m x 3m floor space with 2.5m clearance height -

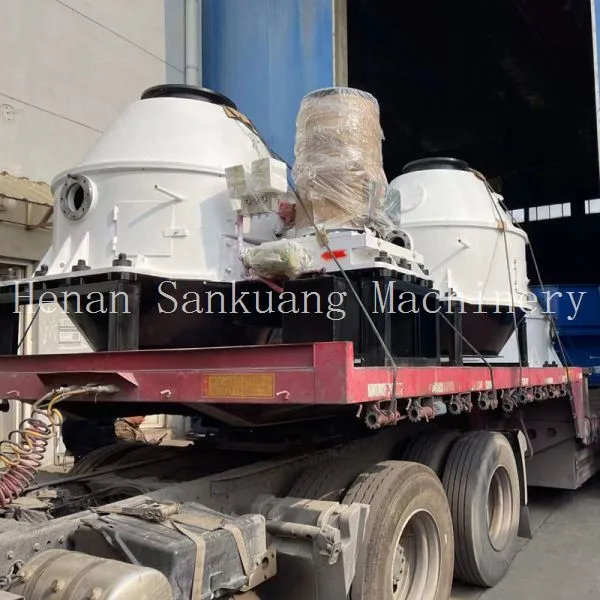

Q: How is the centrifuge shipped?
A: Disassembled into major subassemblies in weatherproof crates -
Q: What consumable parts require regular replacement?
A: Scraper blades typically last 3,000-5,000 hours depending on abrasiveness
