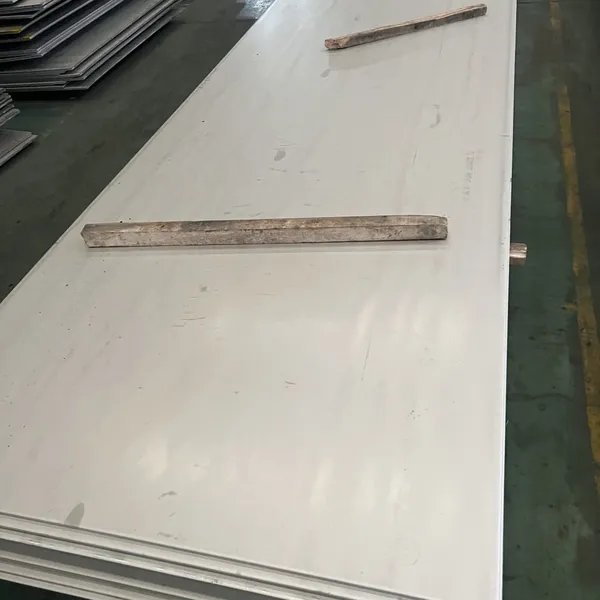

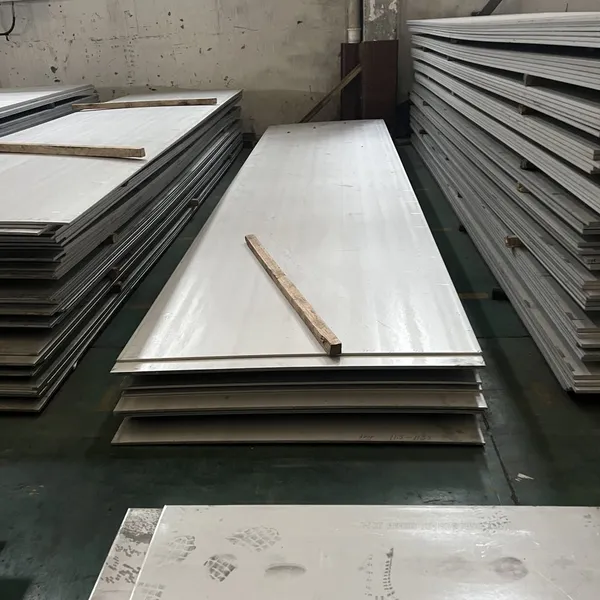

Help CenterStainless Steel Sheet 2205 Duplex Stainless Alloy 2-12mm High Corrosion Resistance
Product Spotlights
Related Products
-
304 Stainless Steel Sheet Mirror Polished 0.5-6mm Construction and Equipment PlateUS$ 1.85 - 2.55MOQ: 100 Kilograms -
316L Stainless Steel Sheet Heat and Corrosion-Resistant 1-25mm PlateUS$ 2.85 - 4.35MOQ: 100 Kilograms
-
Stainless Steel Sheet 321 Annealed 0.8-12mm for High-Temperature ProjectsUS$ 2.85 - 4.15MOQ: 100 Kilograms
-
SUS304 Stainless Steel Sheet Cold Rolled 1-10mm ASTM & JIS PlateUS$ 1.85 - 2.55MOQ: 100 Kilograms
-
Stainless Steel Sheet 316 Industrial Grade 2-20mm Corrosion Resistant MetalUS$ 2.65 - 4.05MOQ: 100 Kilograms
2205 duplex stainless steel sheet is composed of austenite and ferrite dual-phase structure. With thickness from 2mm to 12mm, this alloy plate provides extremely high mechanical strength and outstanding pitting, crevice and stress corrosion resistance.Compared with ordinary 304 and 316 steel, 2205 performs far better in chloride and salty corrosive conditions. Smooth cold rolled surface, precise tolerance, easy for cutting, bending and welding. It maintains long service life under severe humid and corrosive working environments.
Application & Function
Chemical Industry: Chemical reactors, acid storage tanks, pipeline fittings and processing equipment;
Marine & Coastal Engineering: Seawater desalination equipment, offshore platform components, seaside anti-corrosion structures;
Environmental Protection: Wastewater treatment tanks, desulfurization equipment and sewage disposal parts;
Industrial Manufacturing: High-pressure vessels, heat exchangers and heavy-duty corrosion-resistant structural plates.
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A240, A480, EN 100882, JIS G4304/4305, GB/T 3280 |
Others (e.g. DIN, BS) on request |
Common Grades |
304, 304L, 316, 316L, 321, 309S, 310S, 430, 201, 202, 904L, 2205, 2507 |
Duplex & super austenitic available |
Thickness range |
Cold rolled: 0.3mm – 6.0mm; Hot rolled: 3.0mm – 120mm |
Custom on request |
Width range |
Cold rolled: 1000 / 1219 / 1500 mm (max 2000mm); Hot rolled: 1500 – 3000 mm |
Slitting / trimming available |
Length range |
Cold rolled: 2000 – 6000 mm; Hot rolled: 3000 – 12000 mm |
Custom cut to length |
Surface finish |
2B, BA, No.1, HL (hairline), No.4, mirror (8K), embossed, colored |
Pickled & annealed for hot rolled |
Tolerances – thickness |
Cold rolled: ±0.03mm to ±0.08mm (depending on thickness) |
Per ASTM A480 |
Tolerances – width/length |
±2mm (sheared), ±1mm (slit) |
Laser/plasma ±0.5mm |
Flatness |
≤3mm/m for cold rolled; ≤5mm/m for hot rolled (standard) |
Leveling service available |
Mechanical properties (typical – 304) |
Tensile strength ≥515 MPa; Yield ≥205 MPa; Elongation ≥40% |
Varies by grade & temper |
Hardness (304/316) |
≤200 HB; ≤92 HRB |
Annealed condition |
Density |
7.93 g/cm³ (304/316); 7.70 g/cm³ (430) |
– |
Surface protection |
Interleaving paper + PE film on one or both sides |
Optional |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
