1. Product Overview

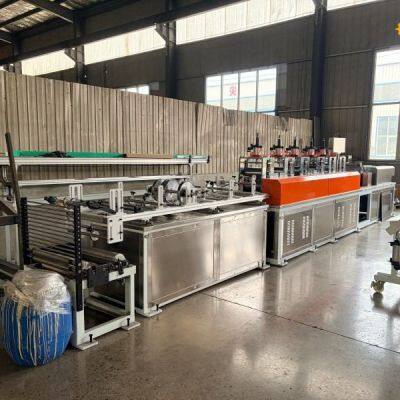

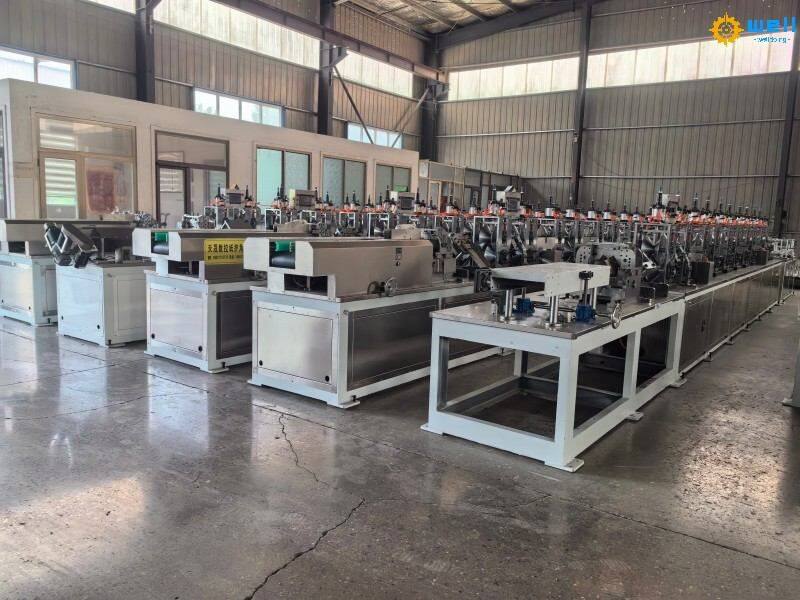

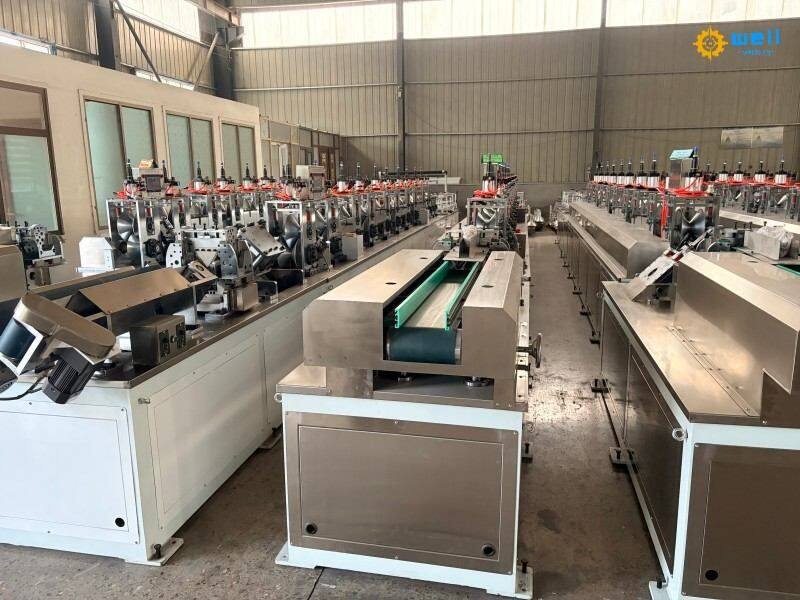

This Heavy Duty Kraft Paper Edge Board Making Line is a fully automated, high-efficiency industrial system for manufacturing high-strength kraft paper edge protectors, also known as paper angle boards or L-shaped pallet corner guards. It integrates unwinding, gluing, lamination, forming, pressing, fixed-length cutting and automatic output to deliver one-stop continuous production of heavy-duty paper edge boards.
Featuring an upgraded servo control system and high-pressure forming structure, the machine supports thick kraft paper lamination and high-hardness edge board production. Finished products offer high compression resistance, standard 90° right angles, uniform thickness and excellent durability. As core green packaging equipment, it serves industrial packaging, logistics palletizing and warehouse stacking, replacing plastic and foam materials to meet global eco-packaging standards.
2. Core Advantages
2.1 Heavy-Duty Production & Stable Performance
Built with a reinforced frame and high-pressure pressing system, the line supports 5-15 layers of heavy kraft paper lamination to produce 1.5-10mm thick, high-hardness edge boards, solving deformation and poor compression issues of ordinary products. It supports stable 24-hour continuous operation with low failure rates and strong load capacity, ideal for large-scale mass production.
2.2 Full Automatic Operation & Labor Saving
The entire line achieves full automatic operation from unwinding, gluing and forming to cutting and output. Equipped with a servo fixed-length cutting system, it ensures a cutting tolerance of ±1mm. A single worker can manage multiple lines, drastically cutting labor costs and boosting production efficiency.
2.3 High Precision & Custom Flexibility
It supports custom L-shaped edge boards with 25-100mm leg width and 50-3000mm adjustable length. Precisely calibrated forming rollers guarantee standard 90° right angles, smooth surfaces and even gluing, effectively avoiding degumming, warping and inconsistent thickness.
2.4 Eco-Friendly & Cost-Effective
Made of pure kraft paper and eco-friendly adhesive, the finished edge boards are 100% recyclable and meet international green packaging standards. Compared with plastic and wooden corner protectors, they feature light weight, lower production and logistics costs, and superior stacking strength, reducing enterprise packaging loss expenses.
2.5 Durable Structure & Low Maintenance
Key components adopt thickened steel and wear-resistant, rust-proof materials. The modular structure simplifies daily maintenance and part replacement. A built-in intelligent fault alarm system detects abnormalities in real time, minimizing downtime and ensuring long-term stable operation.
3. Complete Equipment Configuration
This full production line adopts modular design with complete configurations and seamless collaborative operation:
Multi-layer Paper Reel Unwinding Stand: Supports 1-15 layers of simultaneous kraft paper unwinding with automatic tension control to prevent deviation and breakage, compatible with 160-300g/㎡ heavy kraft paper.
Automatic Gluing Unit: Optional single/double-sided uniform gluing with adjustable glue volume, no leakage or uneven coating, ensuring tight lamination and high structural strength.

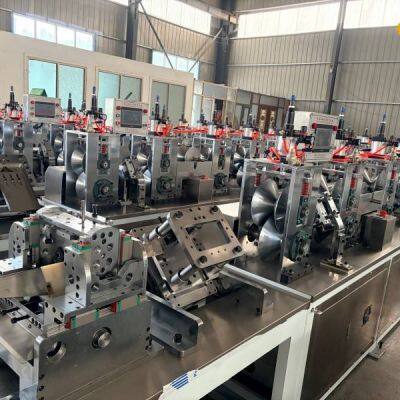

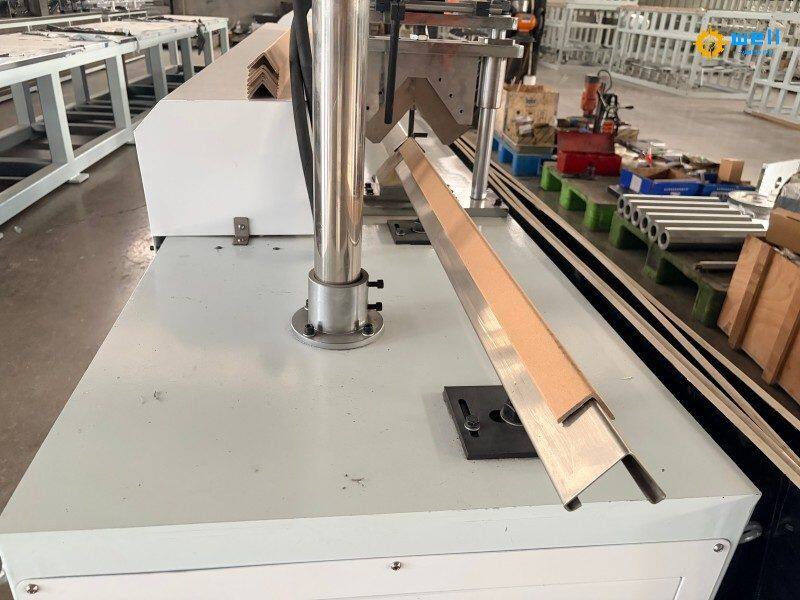

Edge Forming & Wrapping Unit: Precision profiling molds enable fast standard 90° right-angle forming without edge collapse.
High-Pressure Pressing Unit: Synchronized multi-roller pressing ensures uniform stress, tight lamination and no hollow layers, enhancing product compression resistance and toughness.
Servo Precision Cutting Unit: High-speed servo fixed-length cutting delivers accurate dimensions and burr-free smooth sections.
Automatic Output Conveyor: Automatically conveys and stacks finished products for easy collection and packaging, improving overall efficiency.
4. Technical Parameters
Item |
Technical Specifications |
|---|---|
Applicable Paper |
160-300g/㎡ Kraft Paper |
Max Paper Layers |
15 Layers |
Edge Board Type |
L-Shaped Standard Edge Board |
Leg Width |
25mm - 100mm (Customizable) |
Board Thickness |
1.5mm - 10mm (Customizable) |
Product Length |
50mm - 3000mm (Adjustable) |
Cutting Accuracy |
±1mm |
Gluing Mode |
Single-sided / Double-sided Gluing Optional |
Total Power |
9KW (Customizable) |
Driving Mode |
Full Servo Drive |
Operation Mode |
Fully Automatic Intelligent Control |
5. Production Process
Raw Paper Unwinding → Automatic Tension Control → Uniform Gluing → Multi-layer Paper Lamination → 90° Right-angle Forming → High-pressure Compression Shaping → Servo Fixed-length Cutting → Automatic Conveying & Finished Product Output
The fully synchronized automated process eliminates manual errors, ensuring consistent and stable batch product quality.
6. Product Applications
Edge boards produced by this line feature excellent compression, impact and anti-collision resistance, widely used in diverse industries:
Logistics & Pallet Packaging: Secures pallet goods edges, prevents strapping damage and enhances stacking stability;
Home Appliance & Electronics: Provides reliable edge protection for household and electronic equipment packaging;
Building Materials & Hardware: Offers anti-collision and compression protection for plates, profiles and hardware products;
Warehouse Storage: Improves vertical stacking strength and reduces packaging extrusion deformation;
General Industrial Packaging: Replaces foam and plastic protectors to achieve eco-friendly packaging upgrades.
7. After-sales Service & Support
We provide full lifecycle one-stop services, including customized pre-sales solutions, on-site installation & commissioning, operator training, 24/7 online technical support and long-term spare parts supply. Reliable equipment warranty ensures fast production launch and stable benefits for clients.
