As a trusted manufacturer since 2016, Shanghai Zhibang Valve Manufacture Co., Ltd. specializes in producing high-quality Bronze Flanged Stop Valves compliant with the GB/T587-2008 standard. With an annual export value of US$1-1.5 million and ISO9001 certification, our valves serve clients across North America, Europe, Asia, and other global markets through major ports like Shanghai and Hong Kong.

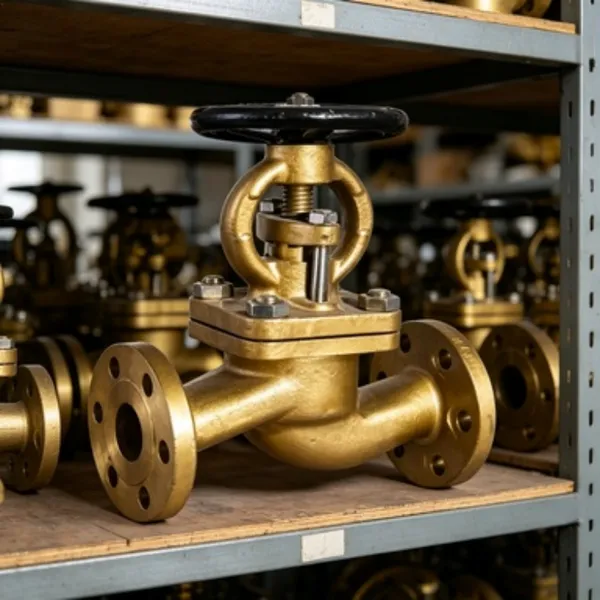

This DN80 valve features dual connection options for versatile installations:
- Flanged ends for high-pressure systems
- Threaded ends for compact spaces
- 150LB pressure rating for demanding applications
Technical specifications include:
| Parameter | Value |
|---|---|
| Material | Bronze (C95800) |
| Pressure Rating | 150LB (PN20) |
| Temperature Range | -20°C to 120°C |
| Flow Design | Full Port |
Key operational benefits:
- Corrosion resistance in marine and chemical environments
- Bi-directional flow control for flexible installation
- Low maintenance design with replaceable stem packing
Backed by our ISO9001 quality management system and presence in 15+ global markets including North America and Southeast Asia, we ensure consistent performance in:
- Water treatment plants
- HVAC systems
- Marine applications
- Industrial process lines
FAQ Section
Q: What is the advantage of bronze material?
A: Bronze offers superior corrosion resistance compared to iron valves, especially in seawater and steam applications.
Q: Can this valve handle high-temperature fluids?
A: Yes, it operates effectively in environments up to 120°C (248°F).
Q: Is the flange pattern compatible with ANSI standards?
A: The GB/T587-2008 standard maintains dimensional compatibility with ANSI B16.5 flanges.
Q: What maintenance is required?
A: Periodic lubrication of the stem and gland packing inspection are recommended.
Q: Do you offer customization?
A: Customized lengths, special coatings, and alternative materials are available upon request.
Q: What is the lead time for orders?
A: Standard products ship within 15 working days from Shanghai port.
