Help CenterCE Certified 30KW 3 Phase Online UPS With LCD Display and SNMP Monitoring
Product Spotlights
Related Products
-
200KW 3 Phase UPS System With CE Certificate for Industrial Power BackupUS$ 1452MOQ: 1 Unit -
20KW-200KW Rack Mount UPS With 2-Year Warranty and Remote Monitoring CapabilityUS$ 1452MOQ: 1 Unit
-
LCD Modular UPS 90k/120k/180k/200k/300kVA Power Supply With Voltage StabilizationUS$ 400MOQ: 1 Unit
-
Reliable 90kVA-300kVA Modular UPS With LCD Interface and Hot-Swappable DesignUS$ 400MOQ: 1 Unit
-
Modular UPS Power System 90kVA 120kVA 180kVA 200kVA 300kVA for Critical LoadsUS$ 400MOQ: 1 Unit
As a trusted ISO9001-certified manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. delivers premium power protection solutions engineered for mission-critical applications. Our CE Certified 30KW 3 Phase Online UPS represents cutting-edge reliability with its advanced LCD interface and SNMP monitoring capabilities, ensuring uninterrupted operations for industrial facilities, data centers, and telecommunications infrastructure across global markets.
This industrial-grade UPS system features:
- True Online Double Conversion Technology providing zero transfer time during outages

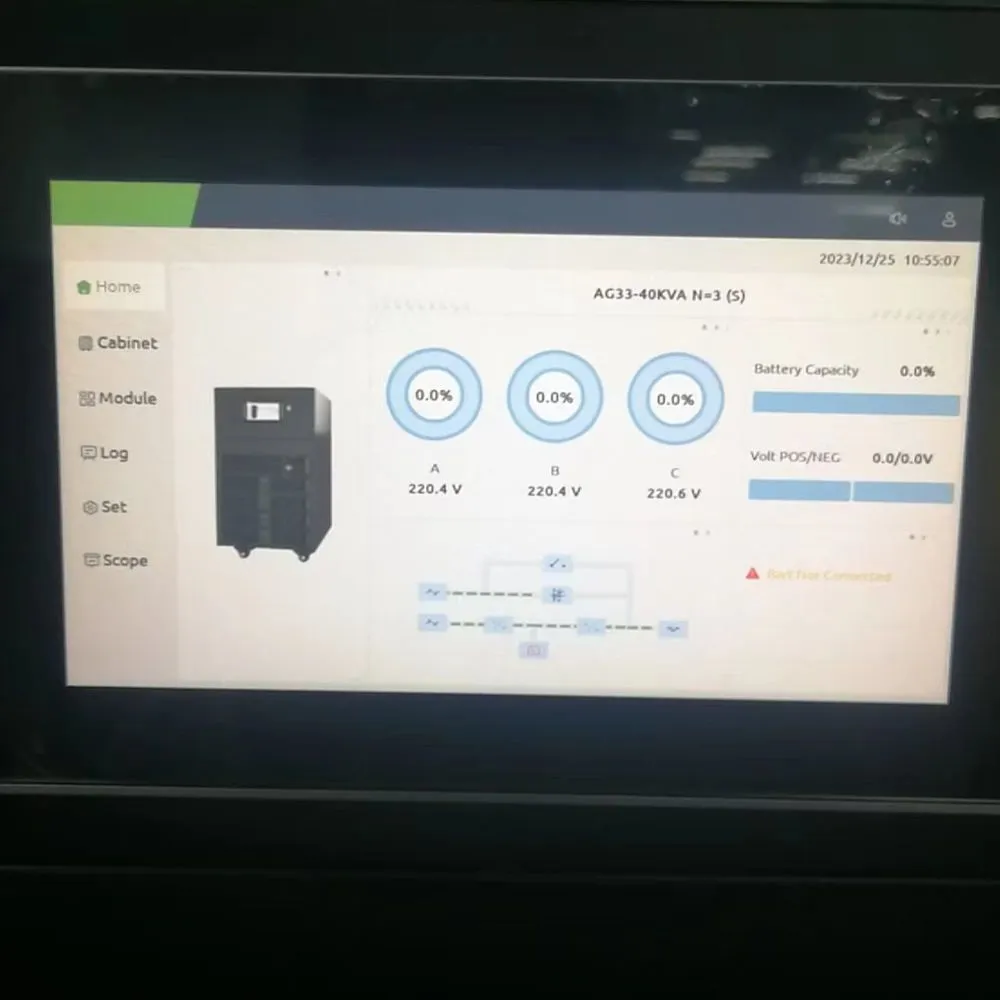

- Real-Time Power Management through intuitive LCD display showing load percentage, battery status, and voltage parameters
- Remote Monitoring Capabilities via SNMP for proactive system management
- Wide Input Voltage Window (304-478V AC) for unstable grid conditions

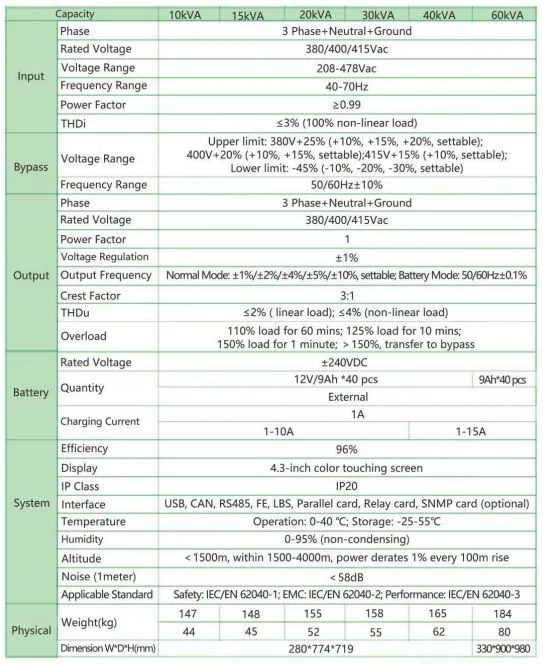

Technical Specifications:
| Parameter | Specification |
|---|---|
| Rated Power | 30kVA/30kW |
| Input Voltage | 3PH 380V±25% |
| Output Voltage | 380/400/415V AC |
| Frequency | 50/60Hz ± 3Hz (Auto Sensing) |
| Waveform | Pure Sine Wave |
| Efficiency | >93% |
With shipments processed through major Chinese ports including Shanghai and Ningbo, we serve clients across 6 continents. Our established presence in North American manufacturing plants and European data centers demonstrates our solution's adaptability to diverse power infrastructure requirements.
Frequently Asked Questions:
-
Q: What environmental conditions does this UPS support?
A: Designed for industrial environments, it operates at 0-40°C with 0-95% relative humidity (non-condensing). -
Q: Can I integrate this with existing power distribution systems?
A: Yes, the unit features standard terminal connections compatible with industrial switchgear and accepts external battery cabinets. -
Q: How does SNMP monitoring enhance system reliability?
A: SNMP enables remote notification for over 20 event types including utility failure, battery replacement alerts, and overload warnings. -
Q: What maintenance is required?
A: Our systems include automatic battery testing and require only annual preventive maintenance checks for optimal performance. -
Q: Are parallel configurations possible?
A: Parallel operation is available through optional expansion modules for N+1 redundancy configurations. -
Q: What warranty terms apply?
A: We provide 2-year comprehensive coverage with optional extended service plans.
Backed by our US$1.5 million export capacity and technical support network spanning Eastern Europe to Oceania, this UPS solution delivers enterprise-grade power protection with manufacturer-direct value. Contact our Zhejiang-based engineering team today for customized power assessments.
