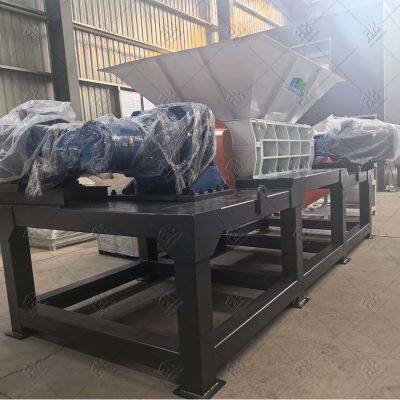

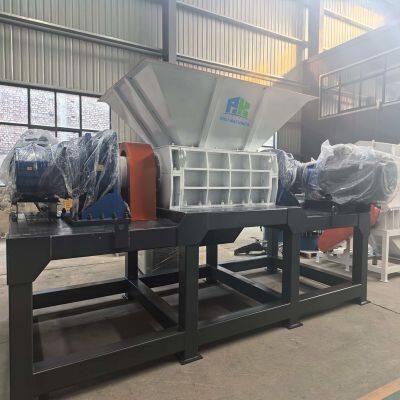

Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder

Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder thumbnail-1
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder thumbnail-2
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder thumbnail-3
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder thumbnail-4
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder thumbnail-5
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder photo-1
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder photo-2
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder photo-3
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder photo-4
Industrial Car Engine Blocks Shredding Machine Twin Shaft Metal Shredder photo-5

Product Spotlights

high torque, blade is made of H13. planetary type of reducer, detachable cutter. the hydraulic cylinder feeding is opitional .auto greasing device.
US$ 18800 - 27900 MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Alloy Steel
Certification:
CE, ISO
Drive:
Electric
Contact Supplier Request Quote Chat Now
Henan Riku Machinery Equipment Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port,China
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Alloy Steel
Certification CE, ISO
Drive Electric
Usage Industrial, Metal
power 45kw*2PCS
reducer #12
blade Qty 24 PCS
Thickness 50 mm
blade materail H13 DC53
Capacity 2-3 Tons hourly
Transport Package wood box
Trademark Riku machines
Origin China

Twin-Shaft Metal Shredder

A twin-shaft metal shredder, also known as a dual-shear shredder, is a heavy-duty industrial machine designed primarily for the initial size reduction of bulky, hard-to-process scrap metal and other solid waste materials. It is a cornerstone machine in modern recycling facilities.

Technical parameters


Type power  Cutter Qty PCS reducer chamber mm feeding port overall size mm weight T capacity (T/h)
RK-800 15kw*2 30 400 600*388 1000*766 1820*800*1930 2.1 0.5-0.8
RK-1000 22kw*2 20 500 640*588 1170*990 3260*1300*2370 3.5 1-1.5
RK-1200 37kw*2 30 355 1200*788 1600*1200 4700*2000*2700 8 2.5-3
RK-1500 55kw*2 30 400 1500*1188 1900*1450 5000*2200*2900 18 8-10.
RK-1800 75KW*2 36 400 1800*1188 2300*1450 5300*2150*3000 20 12-15.
RK-2000 90kw*2 24 450 2000*1188 2300*1500 5400*2150*3000 25 20-25.
RK-2200 110kw*2 28 240 2200*1578 3100*2500 6200*2700*3500 33 26-30
RK-2400 132kw*2 24 240 2400*1678 3200*2600 7300*2800*3800 38 30-35.
RK-2800 185kw*2 28 260 2800*2000 3700*3000 7800*2800*3800 45 35-40

Working Principle

The core mechanism involves two parallel, counter-rotating shafts equipped with a series of cutting discs or "rotors." As material is fed into the hopper, the intermeshing cutters on the two shafts grab, shear, tear, and crush the material between them. The low rotational speed (typically 6-25 RPM) combined with extremely high torque allows it to handle tough, dense objects. Advanced models feature an automatic sensor system that reverses the shafts if an overload is detected, preventing jams and damage.

tss3

Key Features

Low-Speed, High-Torque: Optimized for maximum cutting force and energy efficiency, rather than high-speed impact.

Robust Construction: Built with heavy-duty steel plate frames. Cutting rotors are typically made from high-grade, wear-resistant alloy steel (e.g., Cr12MoV, 42CrMo, D2) and are often reversible or replaceable to extend service life.

High Reliability & Stability: Engineered for continuous operation with minimal vibration and noise.

Intelligent Control: Usually equipped with a PLC control system for automated operation, including start/stop, reversal, and overload protection.

Versatility: Can process a wide range of materials beyond metals, making it a flexible asset.

tss3

Applications & Materials

It is exceptionally effective in shredding:

Scrap Metal: Car bodies, appliances (white goods), light gauge metal, drums, non-ferrous scrap, and production waste.

Hazardous Waste: Preparation of items like electronic waste (e-waste) for further processing.

Bulky Waste: Tires, plastics, wood, municipal solid waste (MSW), and industrial waste.

HJN7byzoD9-x8uQdXM9IOBAB8vASCaGHW8riwqUP4aF_GUCXhABtK8C4xgkM_8tdax1U5Zb-6XARABj_4applianceShredded materials



Product Tags: Twin shaft metal shredder , car engine shredder , car engine block shredding machine
