1. Product Overview
This corrugated carton partition assembler machine is specially designed for dairy and beverage carton inner partitions. It automatically cross-assembles slotted corrugated boards into grid dividers, which effectively prevent collision and damage of milk bottles, beverage cans and other products inside the carton.
Fully replacing manual partition inserting, it greatly improves production efficiency, standardizes partition forming quality, and perfectly matches high-speed packaging production lines in the food and beverage industry.
2. Key Features
Fully automatic cross assembly: Realizes automatic feeding, positioning and cross splicing of horizontal and vertical corrugated boards with firm forming and neat structure.
High production capacity: Dual-station design, stable output, suitable for mass production of milk carton dividers.
Intelligent PLC control: Equipped with touch human-machine interface, one-key parameter setting, self-diagnosis and fault alarm function.
Wide compatibility: Adaptable to different sizes, thicknesses of single/double corrugated boards, flexible adjustment of grid spacing for various dairy carton specifications.
Stable & durable: Thickened steel frame, high-quality pneumatic and electrical components, long service life and low failure rate.
Easy operation & quick changeover: Electric adjustment for different sizes, model replacement finished in short time, low daily maintenance cost.
3. Technical Specifications
Model: 900X500-6N (Standard Type)
Overall Dimension: 7300×2200×1500mm
Total Power: 10kW
Power Supply: 380V / 50Hz / 3 Phase
Production Capacity: 40–60 sets per minute
Applicable Board Size: 120–500mm (L) × 120–450mm (W) × 70–250mm (H)
Board Thickness: 1.5–7mm (Single / Double Corrugated)
Adjustable Grid Spacing: Horizontal 50–150mm, Vertical 30–150mm
Control System: PLC + Touch Screen
Air Pressure Requirement: 6bar, 0.6m³/min
Machine Weight: About 3000kg
4. Working Process
Automatic feeding: Vacuum sucker separates and transports horizontal & vertical corrugated boards steadily.
Precise positioning: Servo positioning ensures accurate board feeding with tiny error.

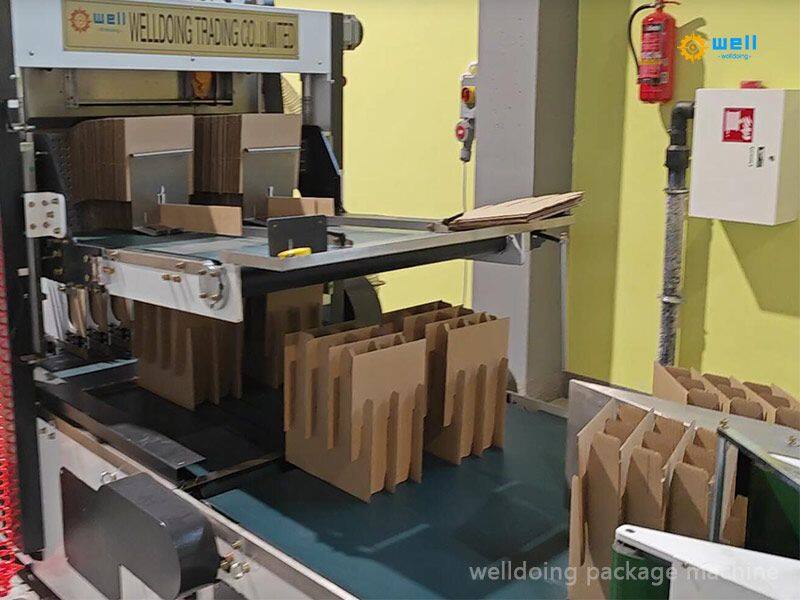

Cross inserting & forming: Pneumatic pushing structure completes cross locking and assembly.

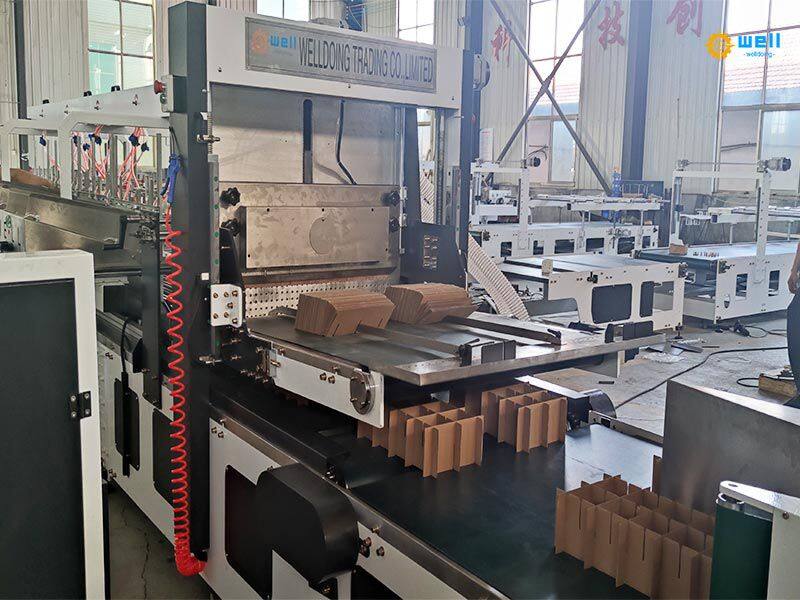

Finished output & stacking: Assembled partitions are automatically delivered and stacked.
Safety protection: Automatic stop and alarm for paper shortage, jamming and other abnormal conditions.
5. Application Scope
Mainly used for automatic assembly of inner partitions for milk cartons, yogurt boxes, fruit juice cartons and other dairy packaging.It is also widely applicable to grid partitions for beer, canned food, daily chemicals, fragile goods and other carton packaging.
6. Product Advantages
High efficiency: Greatly boost output and solve the problem of labor shortage.
Uniform quality: Standard forming, tight structure, no loose partitions.
Cost saving: Reduce long-term labor cost and lower production loss.
High adaptability: Meet diversified packaging customization demands.
