Help CenterIncremental Encoder
Product Spotlights
Design features：

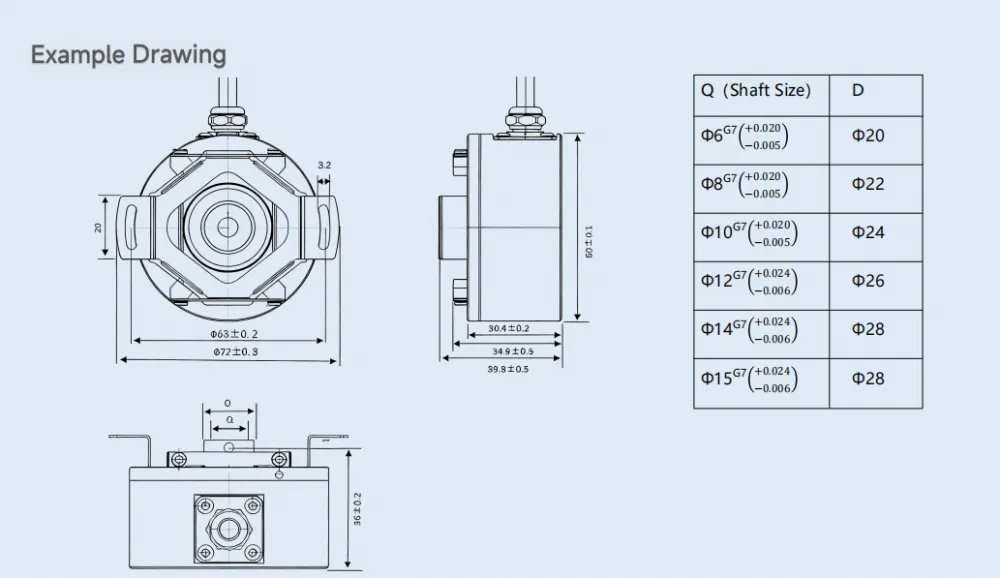

- The outer cover of the encoder has a diameter of Φ60mm, a thickness of 40mm,
and a maximum aperture of Φ15mm.
- Adopts non-contact photoelectric principle.
- Polarity reverse protection. - The maximum resolution can reach 65536 PPR
- The outer cover of the encoder has a diameter of Φ60mm, a thickness of 40mm,
and a maximum aperture of Φ15mm.
- Adopts non-contact photoelectric principle.
- Polarity reverse protection. - The maximum resolution can reach 65536 PPR
US$ 365 - 585
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Rotary Encoder
Brand:
Other, DELBURG
Working Principle:
Incremental
Payment & Shipping
Payment Methods:
Port of Shipment:
zhuhai
Delivery Detail:
7 days
Related Products
Type
Rotary Encoder
Brand
Other, DELBURG
Working Principle
Incremental
Readout Mode
Non-Contact
Signal Output
Long Drive Output
Axle Sleeve Type
Empty Type
Installation Form
Other
Axonia
Other
Operating System
Photoelectric Type
This product features a through-shaft design with a robust structure.The mounting shaft adopts a clamp-type clamping method,offering a variety of electrical interfaces and resolution options.It has an IP65 protection rating,with a compact structure and high safety,making it suitable for high-intensity mechanical motion applications.
