Product Overview

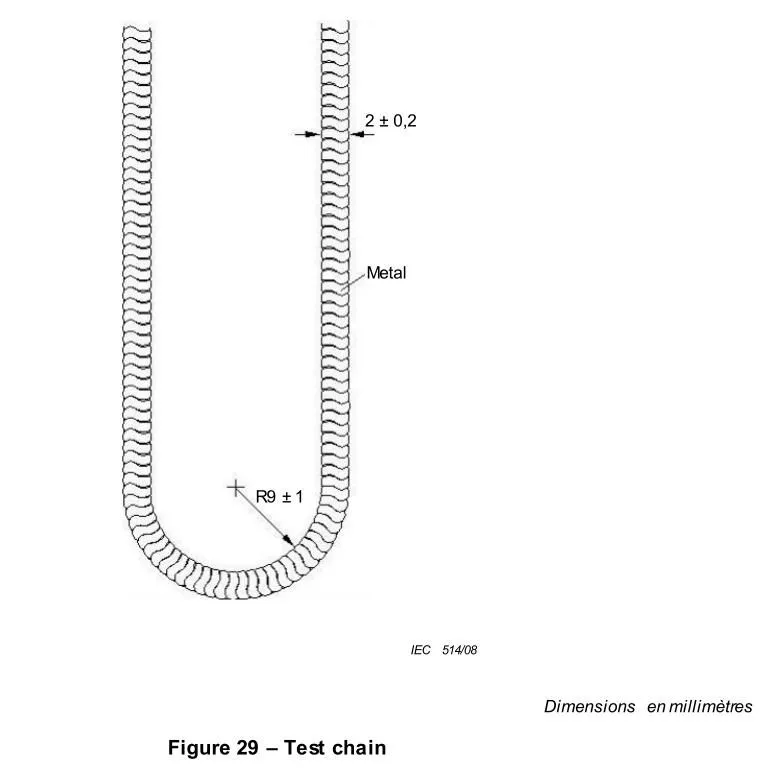

This test chain is specially designed for lighting safety test, fully compliant with IEC60598-1 clause 4.26.3 and IEC60598 Figure 29. It is used for accidental short circuit protection test of non-insulated, accessible and opposite SELV parts in luminaires.
Key Specifications
• Standard: IEC60598-1 clause 4.26.3
• Length: 1.30 meters
• Diameter: 2 mm
• Material: 63% Cu / 37% Zn (uncoated metal)
• Resistance: 2.5Ω/m ±20% (under 200g/m load)
• Application: Lighting short circuit protection test
Product Features
1. Standard Compliant: Strictly made according to IEC60598-1 standard, ensure accurate and reliable test results.
2. Stable Resistance: 2.5Ω/m resistance with ±20% tolerance, calibrated under 200g/m tension.
3. Premium Material: 63% copper + 37% zinc uncoated metal chain, durable for long-term testing.
4. Ready to Use: 1.3m standard length, suitable for most luminaire safety test requirements.
5. Widely Used: For accidental short circuit protection test of accessible SELV parts.
Note
Resistance value of the test chain should be checked before each measurement to ensure test accuracy.
Applications
• Luminaire safety laboratory testing
• Lighting manufacturer quality control
• Certification body performance testing
• Electrical safety short circuit verification
