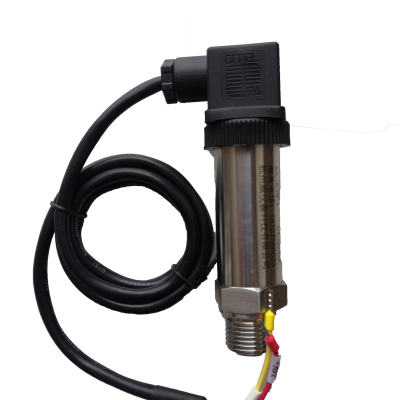

Help CenterHigh Stability 4-20mA 5V 10V Water Cooling System Pressure Transmitter for Industrial Applications
Product Spotlights
Related Products
-
Smart Digital Differential Pressure Transmitter With Display 4-20mA Output for Process ControlNegotiableMOQ: 50 Pieces -
Static Pressure Technology Radar Level Transmitter for Remote Manhole MonitoringNegotiableMOQ: 100 Pieces
-
316L Stainless Steel Submersible Level Transmitter With 0.5%Fs AccuracyNegotiableMOQ: 100 Pieces
-
Differential Pressure Transmitter for Water, Oil and Air Level MeasurementNegotiableMOQ: 100 Pieces
-
Radar Liquid Level Transmitter With Integrated Temperature and Depth MeasurementNegotiableMOQ: 100 Pieces
As a specialized agent of industrial measurement solutions, Shanghai CAMP Environmental Protection Technology brings you this high-precision pressure transmitter engineered specifically for water cooling systems. Established in 2015, we serve global clients across North America, Europe, Asia, and other major industrial regions with reliable monitoring equipment.
This transmitter delivers exceptional stability in demanding industrial environments, featuring multiple output options (4-20mA/5V/10V) to integrate seamlessly with your control systems. The corrosion-resistant construction ensures longevity in water cooling applications where consistent pressure monitoring is critical for operational efficiency.
Core Technical Features:
- Advanced Sensing Technology: Utilizes MEMS-based piezoresistive sensing for superior accuracy
- Signal Integrity: Built-in EMI/RFI protection against industrial interference
- Thermal Compensation: Automatic temperature drift correction (0~60°C medium range)
- Mechanical Protection: Stainless steel housing with IP65-rated environmental sealing
- Configuration Flexibility: Zero and span adjustment via potentiometers
Performance Specifications:
| Parameter | Specification |
|---|---|
| Pressure Range | -0.1 to 10 MPa (custom ranges available) |
| Overall Accuracy | ±0.5% FS (full scale) |
| Long-term Stability | <0.2% FS/year |
| Response Time | <5 ms |
| Power Supply | 12-36 VDC (24V typical) |
Operational Benefits:
- Reduces system downtime through early pressure anomaly detection
- Minimizes calibration requirements with excellent long-term stability
- Simplifies integration with PLC/DCS systems through multiple output options
- Extends service life with corrosion-resistant 316L stainless steel wetted parts
- Enables predictive maintenance through consistent performance monitoring
With our presence across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, and other global markets, we've supported over 500 industrial facilities since 2015. Our technical team provides application-specific guidance to ensure optimal transmitter selection and configuration for your water cooling systems.
This pressure transmitter represents a cost-effective solution for maintaining precise thermal management in critical processes. Contact our Shanghai-based engineering support today to discuss how this instrument can enhance your system's reliability and efficiency.
Frequently Asked Questions:
-
Q: Where should I install this transmitter in a cooling circuit?
A: Optimal placement is on the return line before the reservoir for stable readings. -
Q: Which output signal type should I choose?
A: 4-20mA is recommended for long-distance transmission (>50m), while voltage outputs suit control cabinet installations. -
Q: What is the typical calibration interval?
A: Annual calibration is recommended for critical applications under normal operating conditions. -
Q: Is this suitable for glycol mixtures?
A: Yes, compatible with common coolant mixtures up to 50% glycol concentration. -
Q: Can it withstand water hammer effects?
A: Designed with 2x overpressure protection for transient pressure spikes. -
Q: Are explosion-proof versions available?
A: Hazardous area certifications can be specified upon request.
