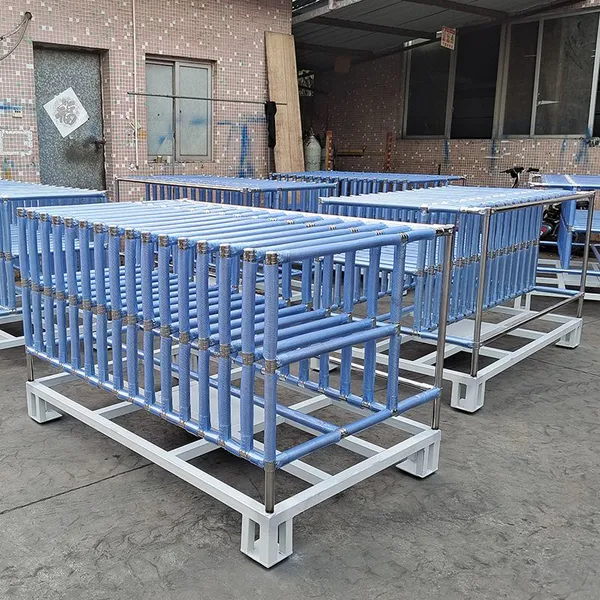

As a leading manufacturer from Dongguan, Guangdong, Jinchuan Logistics Equipment specializes in innovative storage solutions trusted by clients across North America, South America, Eastern Europe, and 35+ other global markets. Our Modular Lean Pipe Storage System revolutionizes workspace organization through its patented 360° rotation mechanism, delivering unprecedented accessibility and space optimization for industrial environments.
Core Engineering Features:
- Dynamic Rotation Design: Each module rotates smoothly on industrial-grade bearings, reducing retrieval time by 40% compared to static racks
- Modular Architecture: Expandable vertical/horizontal configurations with tool-free assembly
- Heavy-Duty Construction: 1.5mm thickness galvanized steel pipes with 150kg load capacity per unit
| Component | Specification | Performance Metric |
|---|---|---|
| Rotation Mechanism | Precision ball bearings | 100,000+ rotation cycles |
| Frame Material | Q235 steel | Tensile strength: 375-500 MPa |
| Surface Treatment | Electrostatic powder coating | Salt spray resistance: 500+ hours |
Operational Benefits:
- ⮞ 60% space reduction through vertical stacking capability
- ⮞ Ergonomic access eliminates bending/stretching motions
- ⮞ Visual management enabled by transparent component design
With installations in 78 countries spanning Oceania to Northern Europe, our systems have demonstrated reliability in automotive manufacturing facilities, electronics assembly plants, and MRO warehouses. The modular architecture allows seamless integration with existing lean manufacturing workflows while providing:
- Reduced inventory handling time by 30-45%
- Reconfigurable layouts adapting to seasonal demand changes
- Future expansion without complete system replacement
FAQ Section
Q: What floor space is required for installation?
A: Base footprint starts at 0.25m² with vertical expansion capability
Q: Can the system handle irregularly shaped components?
A: Customizable pipe configurations accommodate parts from 5cm to 2m length
Q: What maintenance does the rotation mechanism require?
A: Sealed bearings operate maintenance-free for 3+ years under normal conditions
Q: Are earthquake-resistant configurations available?
A: Seismic stabilization kits are available upon request
Q: How does this compare to traditional static racking?
A: 360° access reduces picking time by 7 seconds per operation on average
Q: What industry certifications are available?
A: Custom compliance packages tailored to regional requirements
Experience why global manufacturers from Eastern Asia to Western Europe trust Jinchuan's storage solutions. Contact our engineering team today for a facility-specific optimization proposal.
