Help CenterPink XPS Energy-Saving Waterproof Board for Exhibition Booths
Product Spotlights
Related Products
-
XPS Insulation Panel for Cold Storage Waterproof FlooringNegotiableMOQ: 50 Square Meters -
XPS Waterproof Board 10mm Thickness for Roofing InsulationNegotiableMOQ: 50 Square Meters
-
Extruded Polystyrene XPS Board 1200x600mm Waterproof GradeNegotiableMOQ: 50 Square Meters
-
XPS Waterproof Board for Underground Garage Moisture BarrierNegotiableMOQ: 50 Square Meters
-
XPS Foam Board 50mm Waterproof With Fire-resistant CoatingNegotiableMOQ: 50 Square Meters
Established in 1984, DaCheng BangMei Home Building Materials Department leverages over 35 years of manufacturing expertise to deliver innovative construction solutions. Our Pink XPS Energy-Saving Waterproof Board is engineered specifically for exhibition booth applications, combining superior insulation properties with exceptional moisture resistance. Operating from a 100,000+ sqm facility in Langfang, China, we implement rigorous ISO9001-certified quality control processes to ensure consistent performance across all products.
Core Advantages:
- ❖ Thermal Efficiency: 0.028-0.032 W/m·K thermal conductivity reduces HVAC costs
- ❖ Hydrostatic Resistance: 500kPa compressive strength prevents water penetration
- ❖ Lightweight Construction: 28-45kg/m³ density enables easy handling
- ❖ Fire Safety: B1 flame-retardant grade (GB8624 standard)
- ❖ Eco-Friendly: Zero CFCs/HCFCs and 100% recyclable
| Parameter | Value |
|---|---|
| Density Range | 28-45 kg/m³ |
| Thermal Conductivity | 0.028-0.032 W/m·K |
| Compressive Strength | ≥150 kPa (up to 500kPa) |
| Water Absorption | ≤1.0% by volume |
| Operating Temperature | -50°C to +75°C |
Installation Benefits:

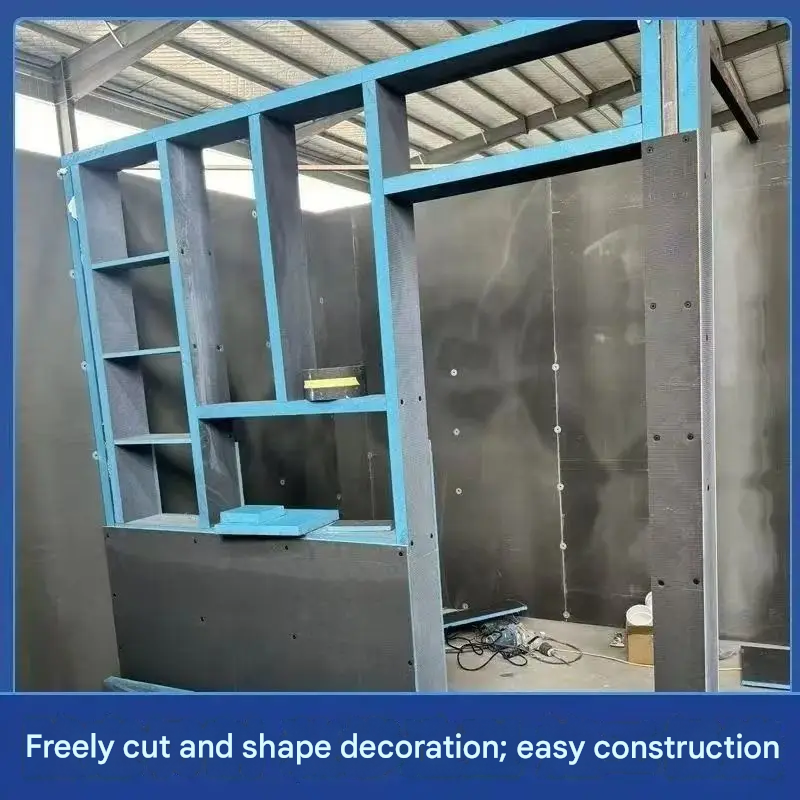

- ✓ Modular design allows rapid booth assembly/disassembly
- ✓ Pre-cut slots for seamless joint integration
- ✓ Compatible with standard adhesives and fasteners
- ✓ UV-resistant surface maintains color vibrancy
With distribution networks across 6 continents including North America, Western Europe, and Southeast Asia, our products meet diverse international requirements. The distinct pink coloration facilitates quick visual identification during installation while the closed-cell structure provides:
• 10% higher R-value vs standard EPS boards
• 75% reduced moisture absorption compared to mineral wool
• 40% lighter weight than equivalent plywood solutions
Frequently Asked Questions:
-
Can these boards support graphic printing?
Yes - The smooth surface accepts direct UV printing without primers. -
What joint sealing methods are recommended?
TESA acrylic tape or silicone-based sealants ensure airtight seams. -
Is on-site cutting possible?
Absolutely - Standard utility knives easily cut through the material. -
How does pink coloration affect thermal performance?
The pigment doesn't impact insulation properties but enhances brand recognition. -
Are custom thicknesses available?
We provide 20mm-100mm thicknesses with ±0.5mm tolerance. -
What's the expected lifespan in mobile exhibitions?
Minimum 5-year durability under frequent assembly/disassembly cycles.
As an ISO9001-certified manufacturer serving global clients since 1984, we guarantee material consistency through automated production lines. Our factory's vertical integration enables strict control over:
• Raw material sourcing
• Extrusion precision (±0.2mm dimensional accuracy)
• Post-production QC testing
Contact us today for samples or project-specific technical consultations.
Send Inquiry to This Supplier
