In the global packaging industry, corrugated boxes are irreplaceable for logistics, product protection, and brand promotion. With the rising demand for sustainable, high-quality, and customized packaging, the Corrugated Box Printing Die Cutter has become a core equipment for packaging converters, integrating printing, die-cutting, scoring, and creasing into one seamless process. Our machine is engineered to balance efficiency, precision, and environmental friendliness, addressing the pain points of traditional production and empowering businesses to achieve green development while enhancing market competitiveness.
Designed for versatility and reliability, our Corrugated Box Printing Die Cutter is suitable for a wide range of corrugated materials, from single-wall E-flute to triple-wall heavy-duty boards, and adaptable to various box styles—including Regular Slotted Containers (RSC), Full Overlap (FOL) boxes, and custom die-cut display cartons. Whether you are a small packaging workshop or a large-scale converter serving e-commerce, food & beverage, electronics, or logistics industries, this machine delivers consistent performance to meet your diverse production needs.

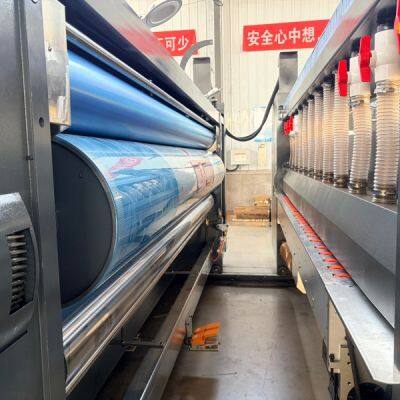

The integration of high-precision printing and die-cutting technology is the core advantage of our machine. Equipped with advanced flexographic printing systems, it ensures sharp, vivid printing with accurate color registration, supporting up to 4-color printing for clear reproduction of logos, barcodes, and product information. The wear-resistant anilox rollers and high-quality printing plates minimize ink waste, while the integrated design eliminates material transfer between separate processes, reducing errors and cutting production time by 30% compared to traditional operations.

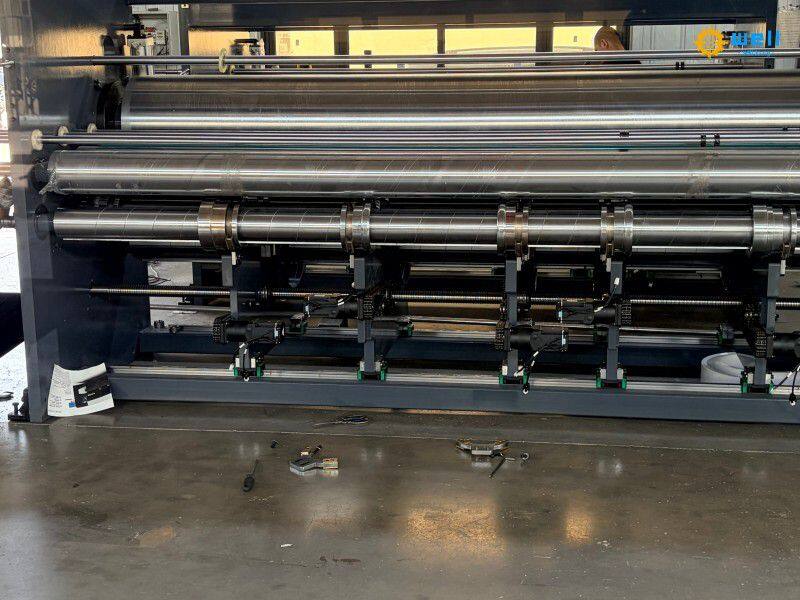

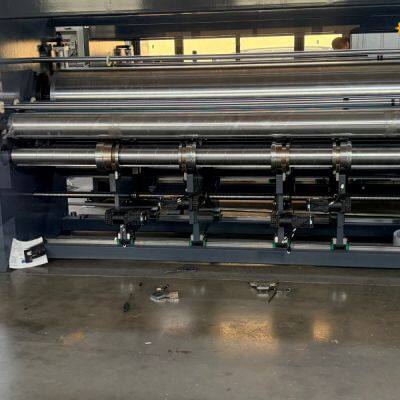

Precision die-cutting is another standout feature, thanks to the advanced rotary die-cutting mechanism. The coordinated operation of the rotating die and anvil cylinder ensures clean, smooth cuts and precise creases, with a cutting tolerance of ±0.5mm, guaranteeing consistent box blank size and shape for easy assembly. Quick die change design allows fast switching between different box designs, making it ideal for small-batch, customized orders in today’s market. Additionally, the soft cut method preserves the structural integrity of corrugated boards, maintaining their load-bearing capacity.
Environmental friendliness is embedded in every detail of the machine’s design, aligning with global “double carbon” goals and eco-friendly packaging trends. It adopts an energy-saving drive system that reduces power consumption by 20% compared to traditional models, while the optimized material feeding structure minimizes paper waste to less than 1%. The machine supports water-based, non-toxic inks, complying with global environmental standards and eliminating harmful emissions, making it suitable for food and pharmaceutical packaging.
To help you better understand the machine’s capabilities, the following table details its key technical parameters:
Technical Parameters |
Specifications |
|---|---|
Maximum Feeding Size |
900×2000mm - 2600×5300mm (customizable) |
Printing Speed |
8,000 - 12,000 sheets/hour (depending on material and job complexity) |
Printing Color |
1-4 colors (flexographic printing) |
Cutting Tolerance |
±0.5mm |
Suitable Material Thickness |
1.5mm - 15mm (corrugated board) |
Power Consumption |
30KW - 80KW (energy-saving type) |
Ink Type |
Water-based, eco-friendly ink (compatible with food-grade standards) |
Control System |
PLC touchscreen control (user-friendly, real-time monitoring) |

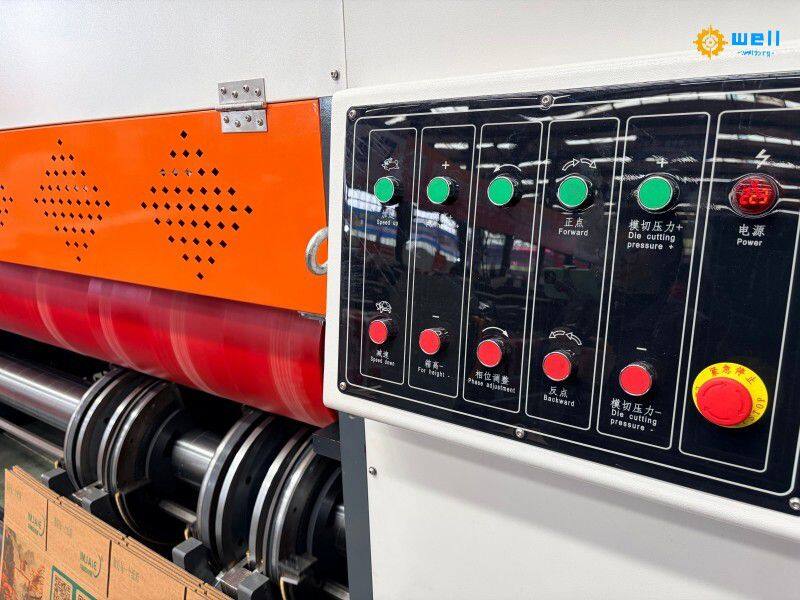

Efficiency and automation are further enhanced by the fully automatic feeding system, which uses multi-sucker non-stop feeders to ensure stable, scratch-free material feeding. The PLC touchscreen interface allows operators to easily set parameters, monitor machine status, and diagnose malfunctions in real time, reducing the need for skilled labor and lowering operational costs. The machine’s durable construction—with hardened transmission gears and chrome-plated cylinders—ensures long-term stable operation, minimizing maintenance costs and extending service life.
We offer customizable specifications to meet your unique production needs, from adjusting feeding size to optimizing printing speed. Our comprehensive after-sales service includes on-site installation, operator training, regular maintenance, and 24/7 technical support, ensuring your machine operates at peak performance. As a strategic investment, our Corrugated Box Printing Die Cutter not only boosts productivity and quality but also helps you achieve environmental compliance, making it the ideal partner for sustainable packaging production.
