OE3001 High Precision Optical Chopper
Product Description
OE3001 is a high‑performance optical chopper designed for precision optical modulation, testing, and scientific research. It features a wide frequency range of 1 Hz to 10 kHz, high frequency accuracy up to 0.5% with advanced PID control and phase‑locked loop (PLL) technology, ensuring stable and reliable operation for long‑term laboratory use.

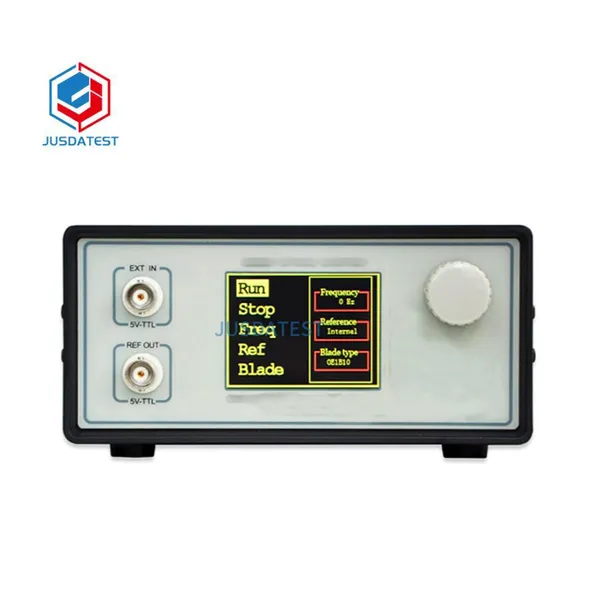

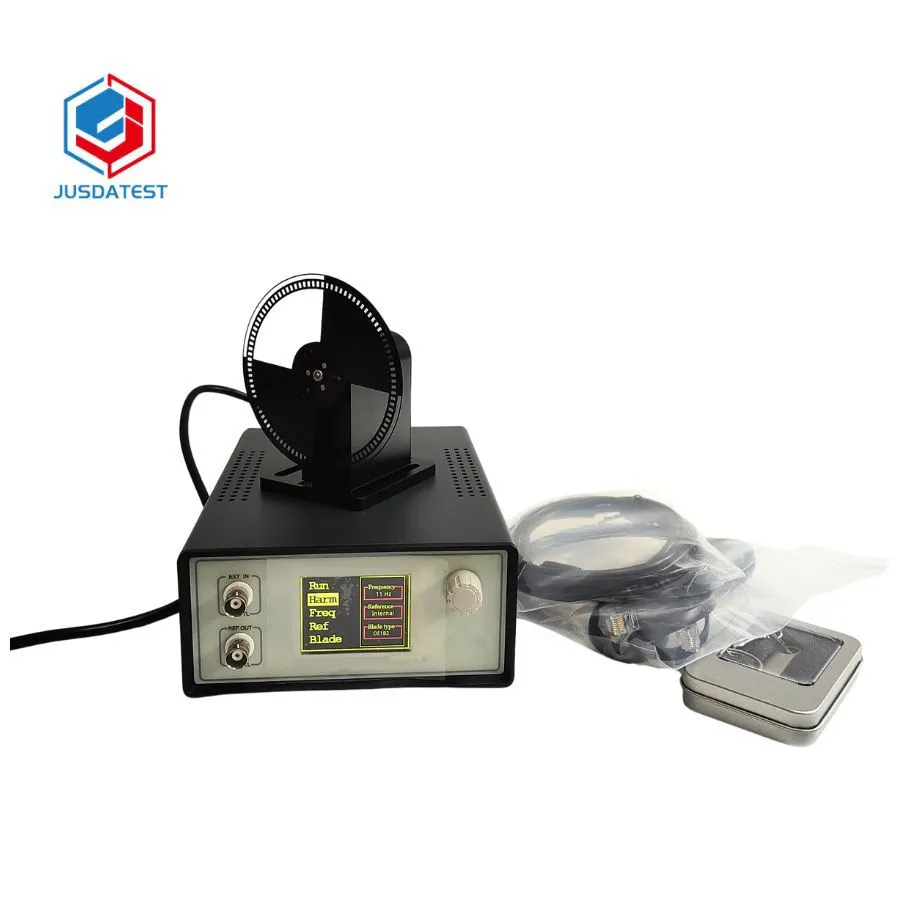

This optical chopper system includes a control console, chopper head, and connection cable. The user‑friendly front panel is equipped with a 320×240 color LCD display and a multifunction control knob, supporting easy parameter setting via rotation and press operations. It supports USB remote control and TTL/CMOS level input & output for flexible system integration and automated testing.
Key Features
Wide chopping frequency: 1 Hz – 10 kHz
High frequency accuracy: 0.5% with PID & PLL control
7 types of replaceable chopper blades (2‑slot to 100‑slot)
320×240 color LCD display & one‑knob operation

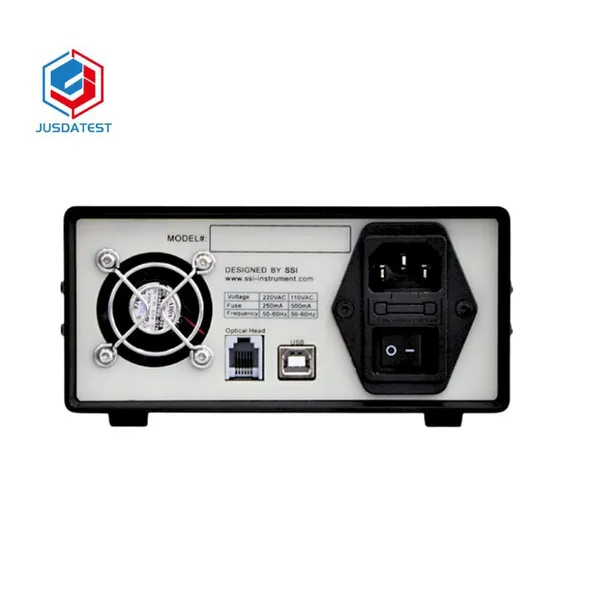

USB remote control & TTL/CMOS I/O
Compact, durable design for laboratory and industrial use
Chopper Blades & Frequency Ranges
OE1B2 (2‑slot): 1 Hz – 200 Hz
OE1B10 (10‑slot): 20 Hz – 1 kHz
OE1B15 (15‑slot): 30 Hz – 1.5 kHz
OE1B30 (30‑slot): 60 Hz – 3 kHz
OE1B60 (60‑slot): 120 Hz – 6 kHz
OE1B100 (100‑slot): 200 Hz – 10 kHz
OE1B57 (inner 5 / outer 7‑slot): inner 10–500 Hz; outer 14–700 Hz
All blades provide a standard 50% duty cycle and are designed for various beam diameters to meet different experimental requirements.
Applications
Precision optical measurement
Laser testing & modulation
Spectroscopy experiments
Optical signal detection
Scientific research laboratories
Industrial optical inspection
Why Choose Us
Factory direct supply with competitive price
Stable quality and strict performance testing
Professional technical support
Fast worldwide shipping
Customizable blade and interface options
