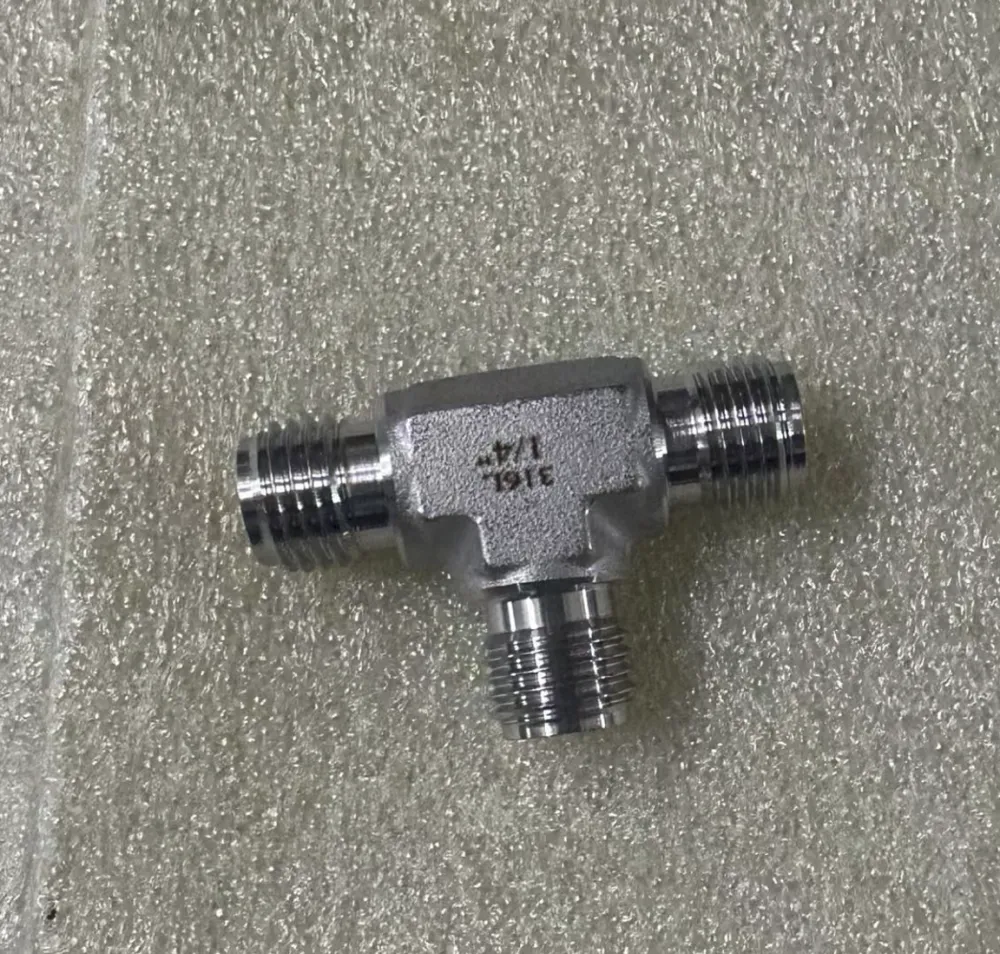

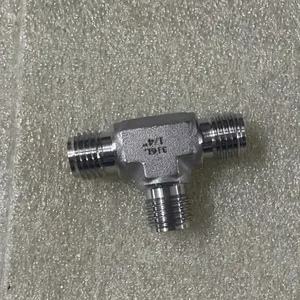

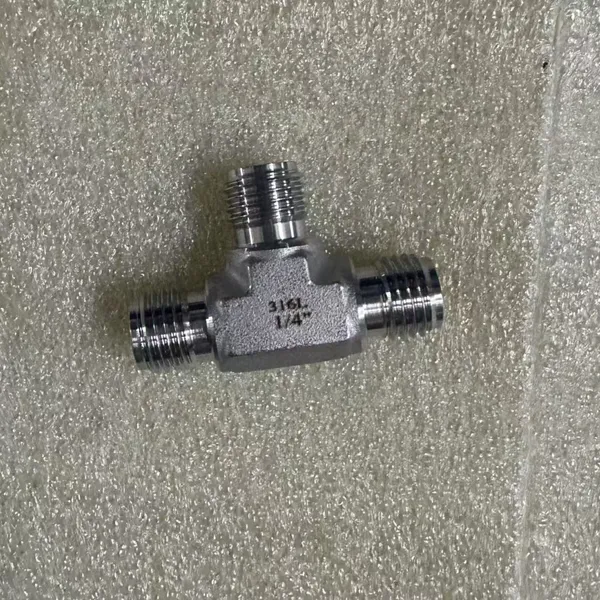

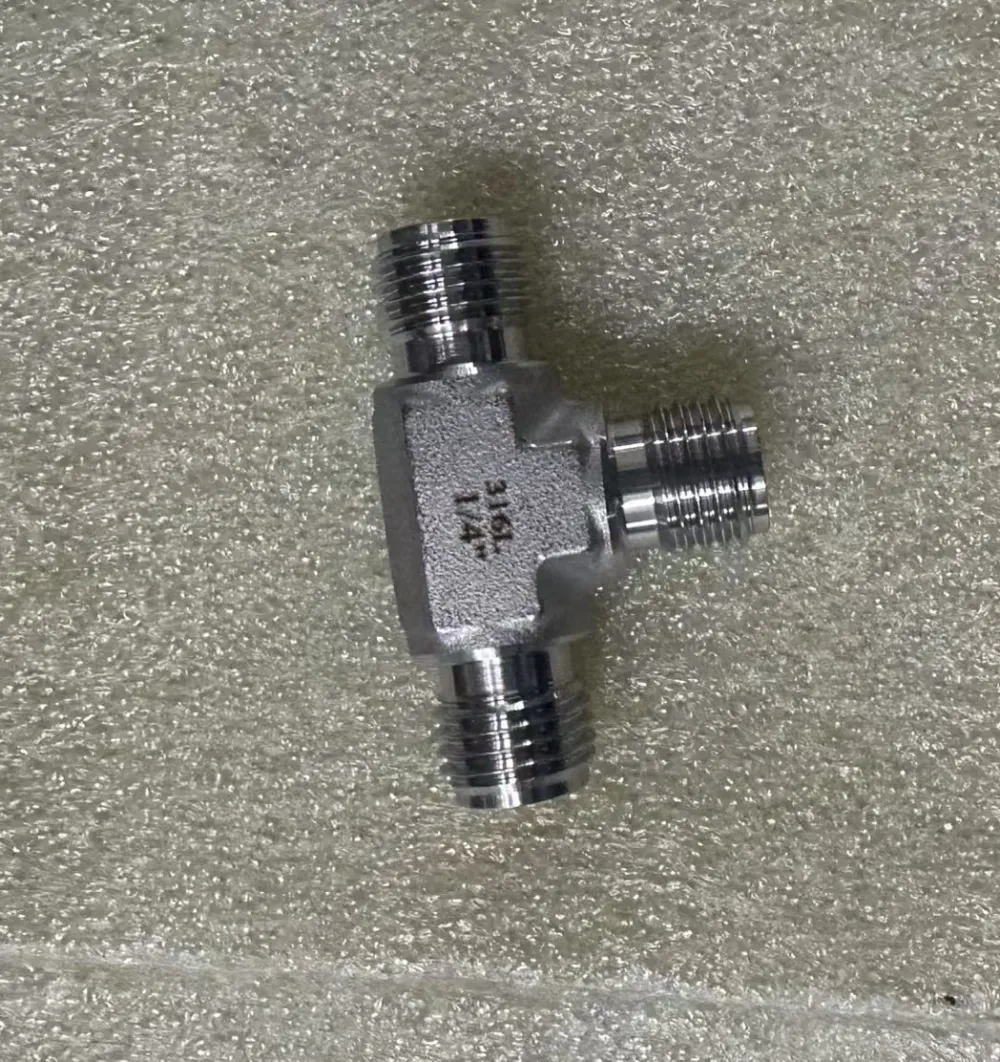

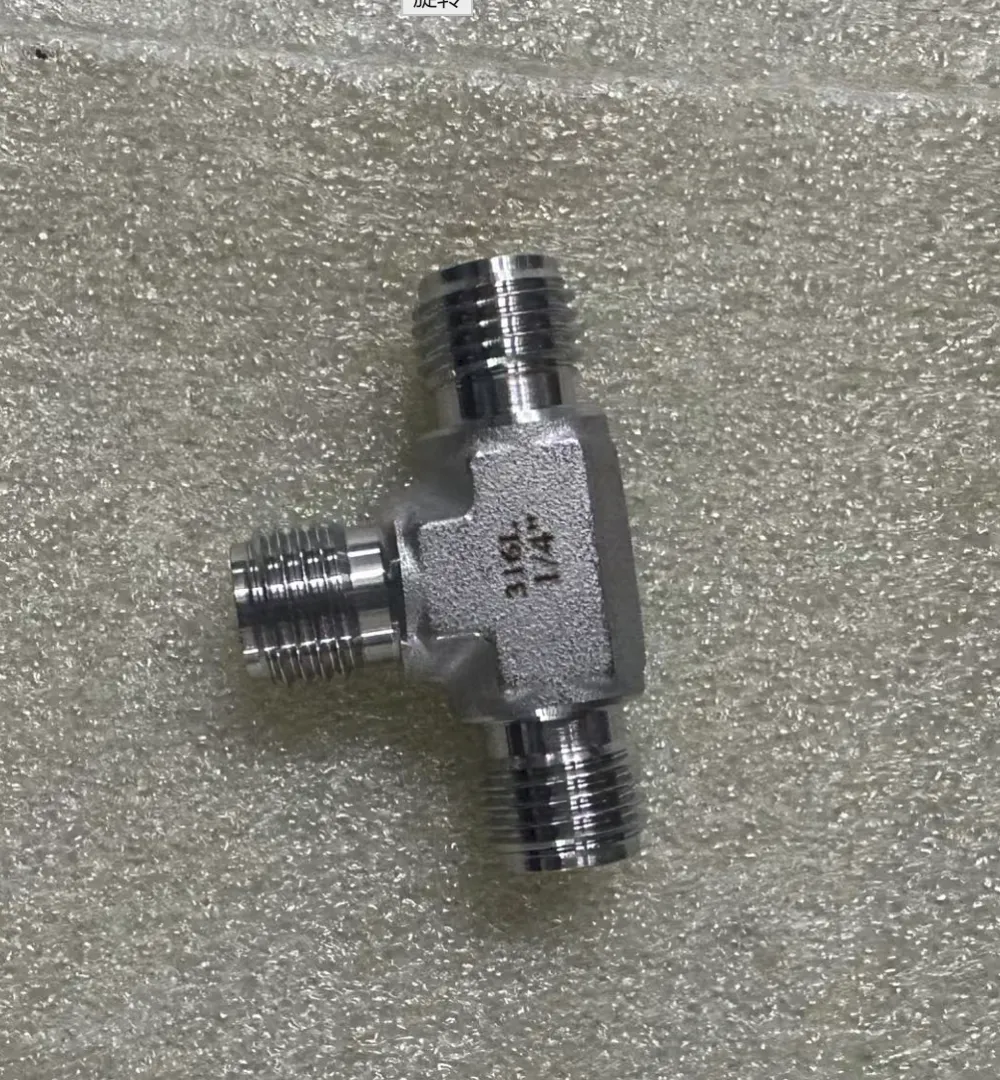

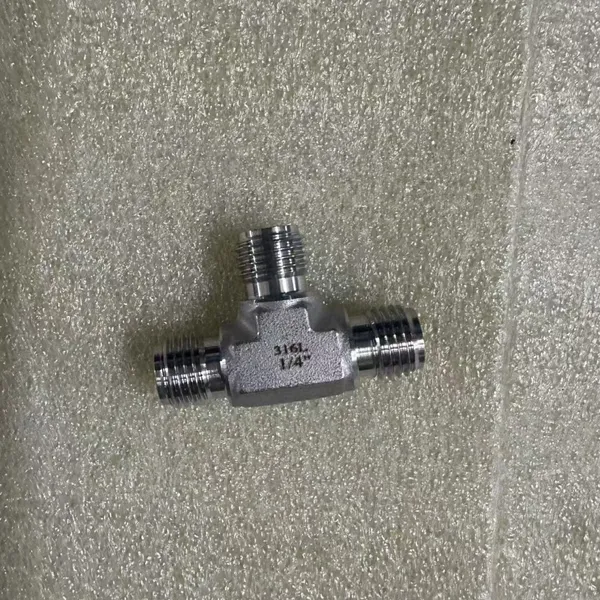

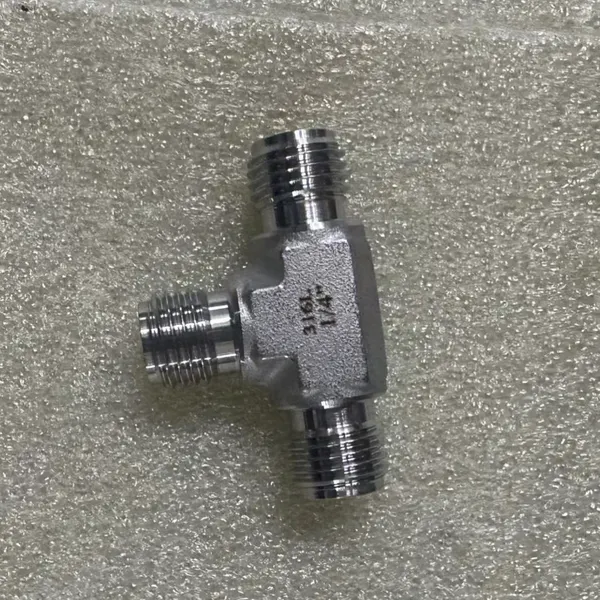

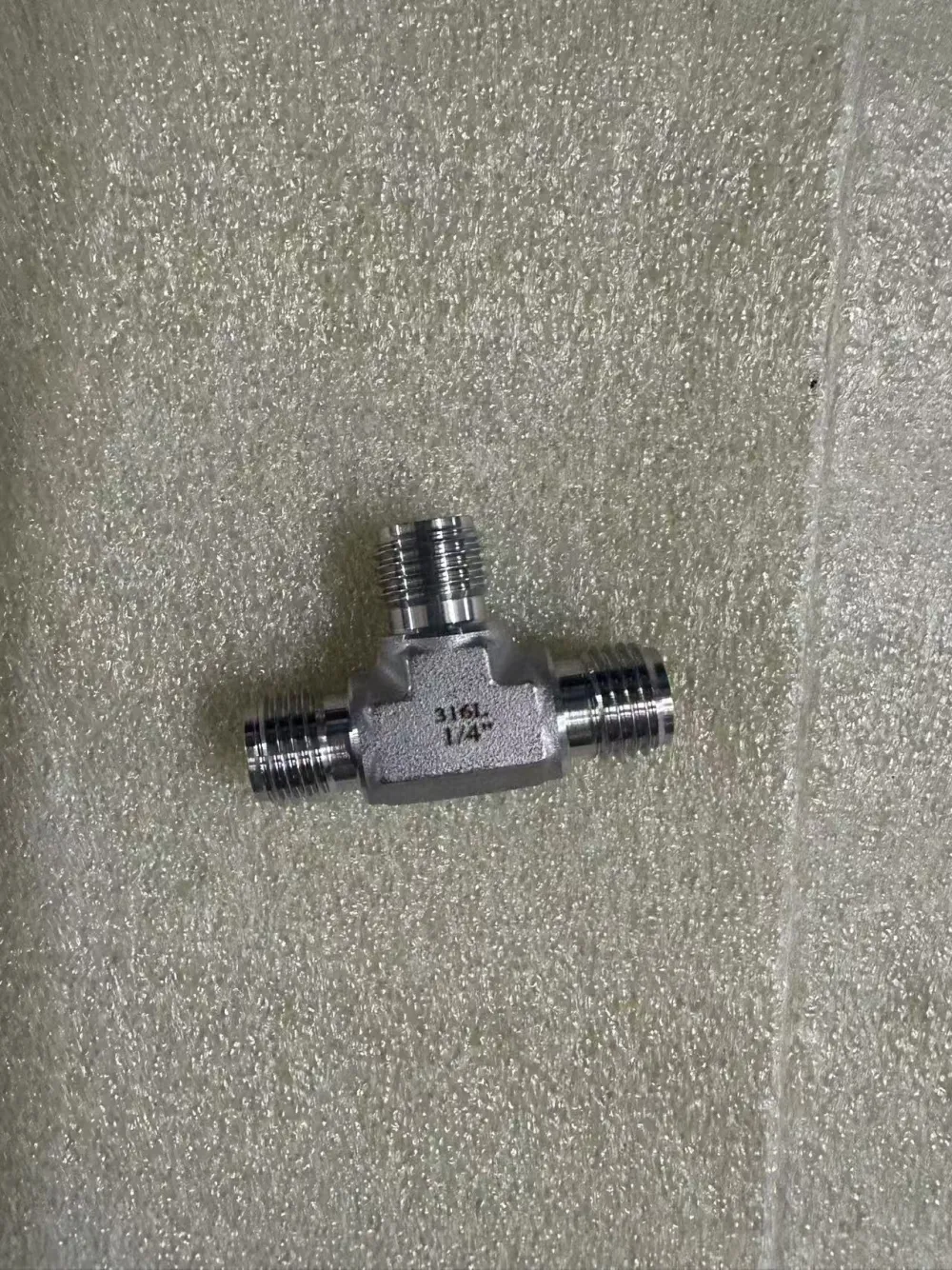

Help Center316L Stainless Steel VCR Male Tee Fitting for Ultra-High Purity Gas Systems
Product Spotlights
Related Products
-
VCR Male Tee Fitting 316L Stainless Steel With 1500 PSI Working PressureNegotiableMOQ: 10 Pieces -
Precision 316L Stainless Steel VCR Male Tee Fitting With Ra ≤0.8μm Surface FinishNegotiableMOQ: 10 Pieces
-
316L Stainless Steel VCR Male Tee Fitting With Full Traceability Mill Test ReportNegotiableMOQ: 10 Pieces
-
VCR Male Tee Fitting 316L Stainless Steel for Chemical and Petrochemical IndustriesNegotiableMOQ: 10 Pieces
-
316L Stainless Steel VCR Male Tee Fitting for Semiconductor and Vacuum ApplicationsNegotiableMOQ: 10 Pieces
Shanghai Quanbao Electronic Materials Technology, based in Shanghai, China, specializes in precision-engineered components for critical gas handling applications. Our 316L Stainless Steel VCR Male Tee Fitting is meticulously crafted for ultra-high purity gas systems where contamination control is paramount. With decades of manufacturing expertise, we deliver fittings that ensure leak-proof integrity and exceptional corrosion resistance in semiconductor, pharmaceutical, and laboratory environments.
This tee fitting features:
Triple-secure connection with VCR metal gasket technology
Electropolished surfaces (Ra≤0.25μm) minimizing particle entrapment
Full 316L stainless steel construction for maximum chemical resistance
Zero dead volume design preventing gas pooling
Precision-machined threads ensuring consistent torque performance
Technical specifications:
| Parameter | Value |
|---|---|
| Material Composition | C≤0.03%, Cr 16-18%, Ni 10-14%, Mo 2-3% |
| Surface Roughness | ≤0.25μm Ra (after electropolish) |
| Helium Leak Rate | -9 atm·cc/sec He |
| Pressure Rating | 1500 psig at 70°F (varies by size) |
Advantages for industrial users include 30% longer service life compared to standard fittings, reduced maintenance downtime, and compliance with SEMI F20 and ISO 8535-2 standards. The symmetrical flow path minimizes turbulence while the work-hardened sealing surfaces maintain integrity through repeated assembly cycles.
As an ISO-certified manufacturer with facilities in Shanghai, Quanbao maintains full traceability from raw material to finished product. Our dedicated quality control laboratory performs batch testing including bubble-point and particulate contamination analysis. With over 200 successful installations in Asian semiconductor fabs, this fitting delivers uncompromising performance where purity matters. Contact our Shanghai technical team for custom configurations or bulk pricing.
FAQ
Q: Why 316L instead of 304 stainless steel?
A: 316L contains molybdenum for superior chloride resistance critical in UPW systems.Q: Are gaskets included with fittings?
A: Metal gaskets are optional; specify requirements when ordering.Q: Can these handle corrosive gases like HCl?
A: Yes, when properly passivated, 316L resists most semiconductor process gases.Q: What's the lead time for custom sizes?
A: Standard sizes ship in 3 days; custom machining requires 2-3 weeks.Q: Do you provide material certifications?
A: Mill test reports with full material traceability are available.Q: How many assembly cycles do VCR fittings withstand?
A: Properly torqued connections maintain integrity through 30+ cycles.
