As Shanghai Quanbao Electronic Materials Technology Co., Ltd., based in Shanghai, China, we specialize in delivering high-performance components for industrial applications. Our Precision 90° Elbow Fitting Male NPT to Double Ferrule Tube Connection is engineered to provide exceptional reliability and precision in fluid systems, ensuring leak-free operations and easy installation. With a focus on quality manufacturing, this product offers a robust solution for optimizing space and enhancing system efficiency in demanding environments. Trust our expertise to deliver connectors that meet rigorous industrial standards and support your operational success.

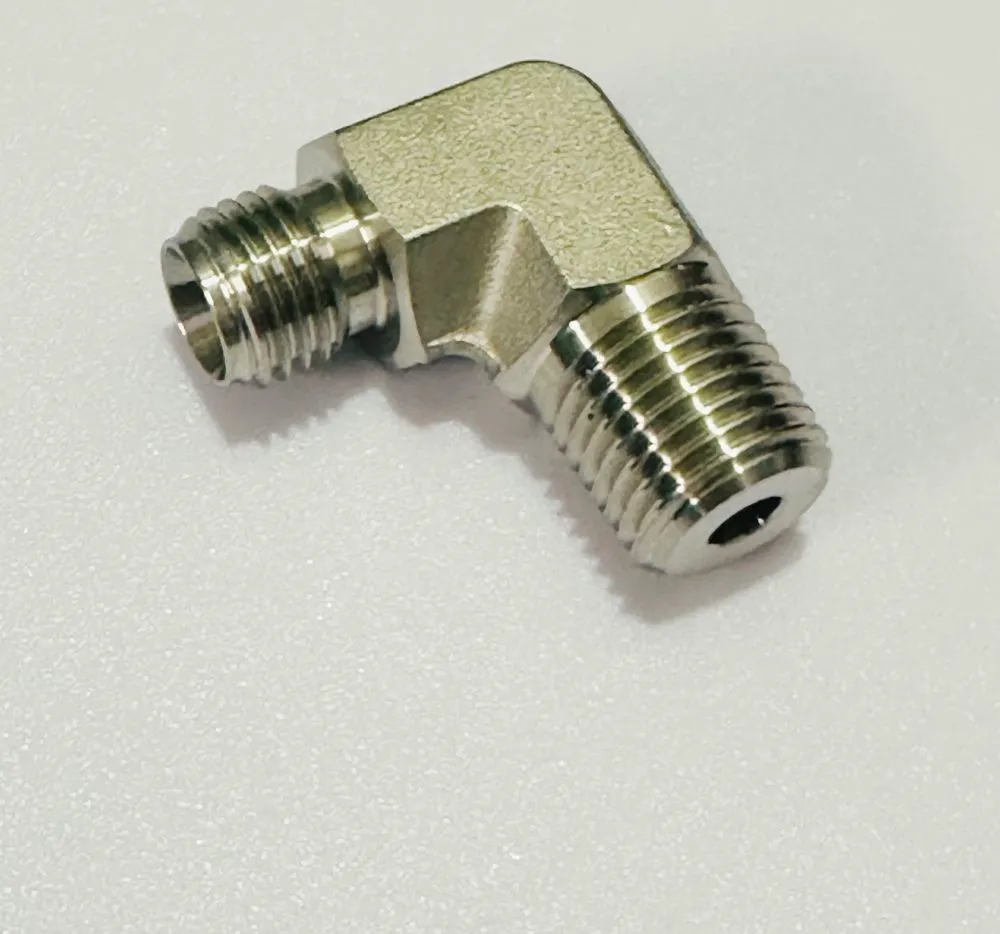

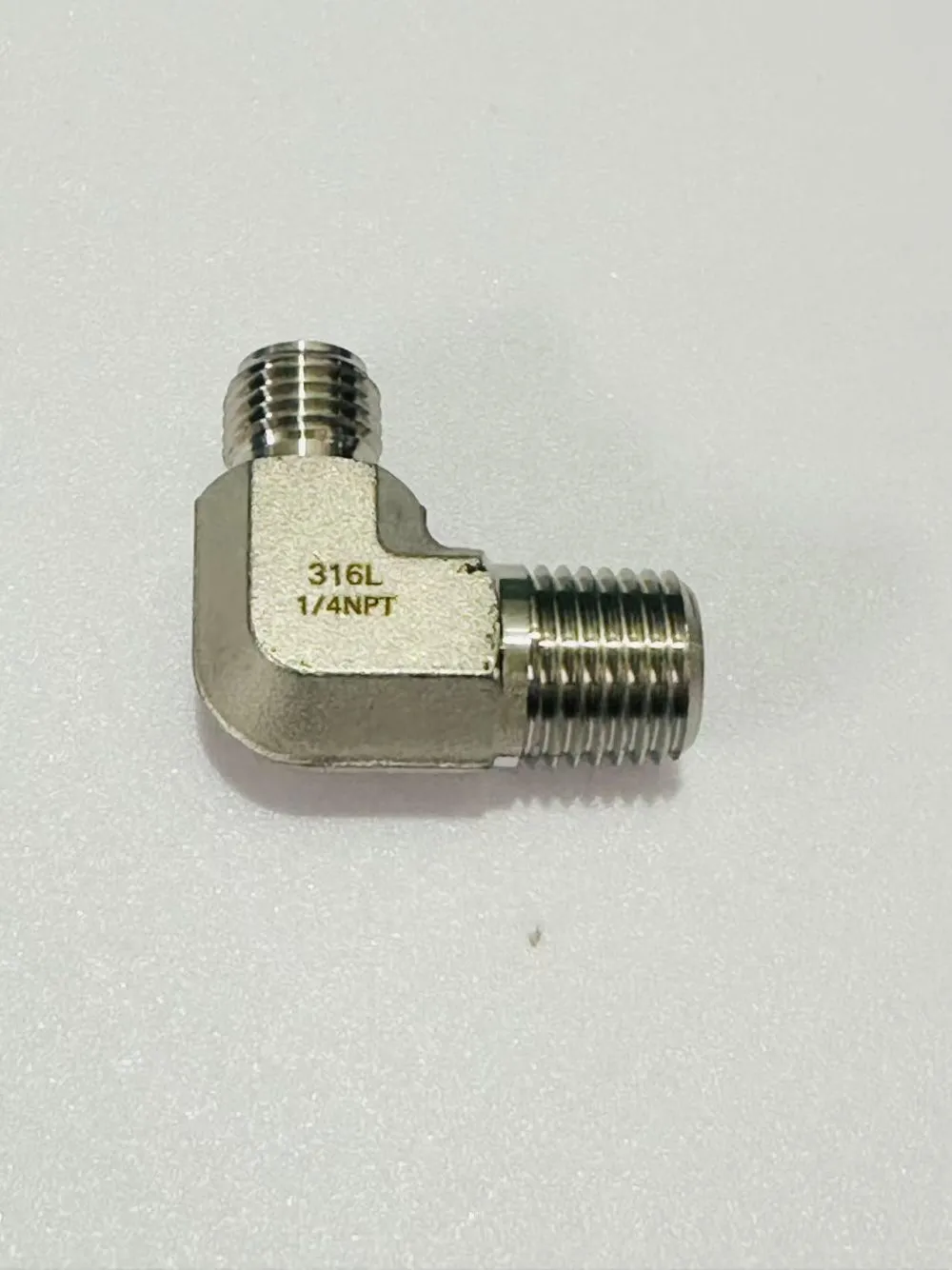

This elbow fitting features a precision-machined design with a 90-degree angle, making it ideal for tight installations where space is limited. The male NPT thread end ensures secure threading into ports, while the double ferrule tube connection provides a vibration-resistant and leak-proof seal for various tube sizes. Key advantages include:
Durable Construction: Made from corrosion-resistant stainless steel 316, it withstands harsh chemicals and high pressures, extending service life.
Easy Installation: The double ferrule design allows for quick and tool-free assembly, reducing downtime and labor costs.
Versatile Applications: Suitable for pneumatic, hydraulic, and instrumentation systems in industries like manufacturing, oil and gas, and automation.
Enhanced Safety: Precision engineering minimizes the risk of leaks, ensuring safe operation in high-pressure environments.
Technical specifications are detailed in the table below, covering common parameters to help you select the right fit for your needs. This product is customizable to specific requirements, such as different sizes or finishes, upon request.
| Parameter | Value |
|---|---|
| Material | Stainless Steel 316 |
| Size Range | 1/8" to 1/2" NPT |
| Pressure Rating | Up to 6000 PSI |
| Temperature Range | -20°C to 200°C |
| Connection Type | Male NPT to Double Ferrule |
| Angle | 90 Degrees |
By incorporating this fitting into your systems, you benefit from reduced maintenance costs, improved flow efficiency, and enhanced system integrity. The double ferrule mechanism ensures a tight grip on tubes, preventing slippage and leaks even under vibration, while the compact 90-degree design allows for flexible routing in confined spaces. Clients report significant improvements in reliability and performance, making it a cost-effective choice for upgrading existing setups.
Shanghai Quanbao Electronic Materials Technology Co., Ltd. leverages its Shanghai-based manufacturing expertise to produce this fitting with consistent quality and adherence to industrial norms. Our commitment to excellence ensures that every unit undergoes thorough testing for durability and performance. For reliable solutions tailored to your specifications, reach out to our team for a consultation or to place an order—experience the difference that precision engineering can make in your operations.
Frequently Asked Questions (FAQ)
Q: What materials are used in this elbow fitting?
A: It is constructed from stainless steel 316, known for its corrosion resistance and durability in industrial environments.Q: Is this fitting suitable for high-pressure applications?
A: Yes, it is rated for pressures up to 6000 PSI, making it ideal for demanding fluid systems.Q: How does the double ferrule connection work?

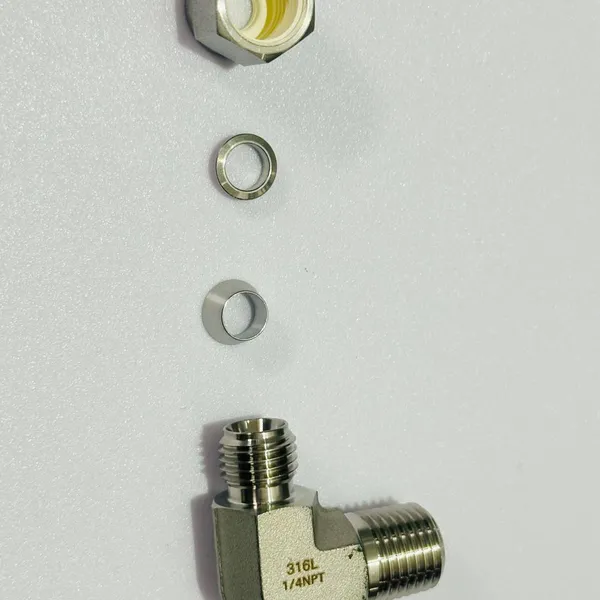

A: The double ferrule design uses two ferrules to grip the tube securely, providing a leak-proof and vibration-resistant seal without requiring additional tools.Q: Can I get custom sizes for specific tube diameters?
A: Custom sizes are available upon request; contact us with your requirements for tailored solutions.Q: What industries commonly use this type of fitting?
A: It is widely used in industrial fluid transfer, including sectors like automation, chemical processing, and HVAC.Q: Does it require special maintenance?
A: Minimal maintenance is needed; the robust design ensures long-term performance with regular system checks.Q: How does the 90-degree angle benefit installations?
A: The 90-degree bend allows for compact routing in tight spaces, optimizing system layout and reducing tubing runs.Q: What is the lead time for orders?
A: Standard orders ship quickly, but lead times may vary for custom requests; inquire for specific details.
