H41 Type PTFE/PFA/FEP Lined Lift Through Way Check Valve

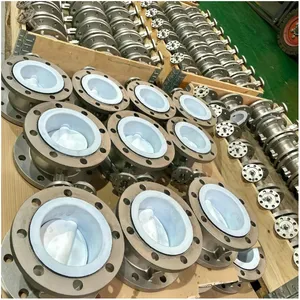

Fluorine-lined valves are composite anti-corrosion valves featuring metal outer casings combined with fluoroplastic linings. Manufactured through processes such as hot press fitting or inlay technology, they use PTFE (F46), FEP (F46), PFA and other fluoroplastic materials to line the valve body, core, and other critical wetted components. This design combines the mechanical strength of metal housings with the superior corrosion resistance of fluoroplastics, making them ideal for piping systems that transport strongly corrosive media.
Nominal Diameter (DN) |
15~2000mm (Commonly used: DN15~DN500) |
Nominal Pressure (PN) |
Chinese Standard (GB): PN0.6, PN1.0, PN1.6, PN2.5 MPa |
Applicable Temperature |
PTFE (F4): -20℃ ~ 150℃ |
Design Standards |
HG/T 3704, GB/T 12238 |
Face-to-Face Dimension |
GB/T 12221, ASME B16.10 |
Flange Standards |
GB/T 9124, HG/T 20592, ASME B16.5 |
Test Standards |
GB/T 13927, API 598 (Strength / Seal Test) |
Leakage Class |
Class VI (Bubble-tight zero leakage) |
Material Specifications
Valve Body (Pressure Parts)
Carbon Steel: WCB, Q235-B, 20# (General)
Stainless Steel: CF8 (304), CF8M (316), CF3 (304L)
Ductile Iron: QT450-10 (For Butterfly Valves)
Lining & Sealing Materials (Core)
PTFE (F4): Corrosion resistant, -20℃~150℃
FEP (F46): Thermoformable, better toughness, same temp as PTFE
PFA: High temp to 260℃, high purity, easy molding
PCTFE (F3): Low temp to -195℃, high mechanical strength
Internal Components
Stem: 2Cr13, 304, 316 (Fluorine-lined / Hardfaced)
Ball / Disc: Carbon Steel / Stainless Steel + Full PTFE Lining
Superior Corrosion Resistance: Resistant to sulfuric acid, hydrochloric acid, hydrofluoric acid, aqua regia, strong alkalis, organic solvents, and almost all strongly corrosive media.
Exceptional Sealing Performance: Excellent fluoropolymer elasticity, zero leakage, complying with Class VI standard.
Smooth Flow Path: No dead angles, no scaling, low flow resistance, and anti-adhesion.
High Mechanical Strength: Metal outer casing for pressure bearing, with internal fluorine lining for corrosion protection, ensuring long service life.
Wide Temperature Range: Standard range: −50℃∼15℃; High-temperature PFA type: up to 260℃.
Hygienic Design: No precipitation, easy to clean, suitable for food and pharmaceutical industries.
Easy Operation: Compact structure, low operating torque.
Standard Warranty: 12 months.(whichever comes first).
Extended Warranty: Optional coverage up to 36 months is available.
Global Support: 24/7 technical assistance and spare parts supply.
On-site Service: On-site installation and maintenance support are provided.
Training Service: Operation and maintenance training for your team is available.
Applications of Teflon Lined Pipe
Chemical Processing Industry
Food Industry
Pulp and Paper Industry
Oil and Gas Industry
Water Treatment Plant
Pharma industry
