Description

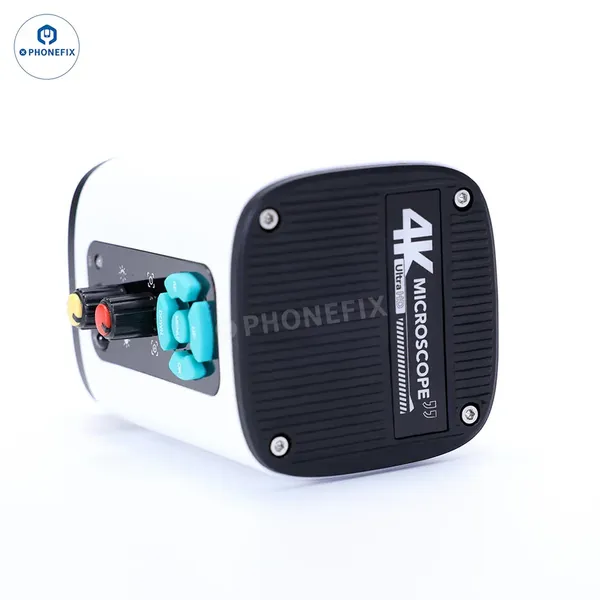

4K Ultra HD Camera Integrated Light Source and Microscope Lens All in One (All-in-one microscope), and uses a 8.29 million pixel 1/2.8-inch Sony CMOS sensor, suitable for mobile phone motherboard BGA CPU IC soldering and repair. HDMI USB output, 4K video recording and photography, etc.
Option:
4K integrated microscope camera.
SET 1: 4K integrated microscope camera + bifurcated bracket.
SET 2: 4K integrated microscope camera + 38cm bracket.
SET 3: 4K integrated microscope camera + round bracket.
SET 4: 4K integrated microscope camera + simple holder 50mm holder.
Features:
1. Adopts 8.29 million pixel Sony CMOS image sensor, 1/2.8 inch image sensor.
2. HDMI 3840*2160 30 frames/1080P 60 frames image output, USB2.0 connects to computer without driver output 3840*2160 30 frames image output.
3. Electronic zoom function, 4K video recording, 4K photo taking, one-key freeze/thaw function/same screen comparison, remote control focus without shaking.
4. Support manual/automatic exposure, exposure compensation value adjustment, red, green and blue adjustable.
5. Support U disk storage, maximum support 64GB, remote control operation and photo taking without shaking, clearer image. And support 8 countries menu language (default English) and shutdown setting parameter saving.
Product Specifications:
Sensor: 1/2.8 inch Sony 8.29 million pixel CMOS sensor
Pixel size: 1.45μm·X.1.45μm
HDMI output: 3840x2160·30 frames/1920x1080.60 frames
USB output: 3840x2160 /2560x1440 /1920x1080 /1280x720 /640x480 /424x240/320x240. (MJPG)
Field of view: 100mm object distance 25x14mm, 150mm object distance 38x21mm,
200mm object distance 50x28m, 250mm object distance 64x36mm, 300mm object distance 78x43mm.
Exposure: Auto/Manual
Exposure compensation: Supported
White balance: Automatic/manual, supports R, G, B adjustable
Storage: supports up to 64GB
Input voltage: DC 12V
Light source: built-in 24 high-brightness LED lights, adjustable brightness
Lens: HD microscope lens
Menu language: English /Chinese /Arabic /Italian /Russian /Japanese /Spanish/French
Remote control: Supported
Focus mode: Manual focus (focus knob, remote control)
Net weight: 200g
Product size: 48x48x60mm
