Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150

Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150 thumbnail-1

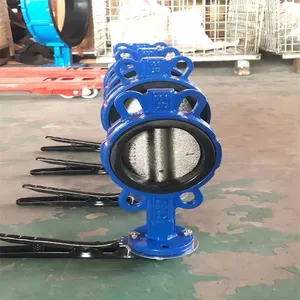

Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150 thumbnail-2

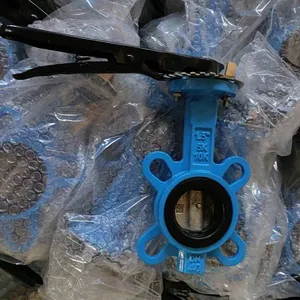

Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150 thumbnail-3

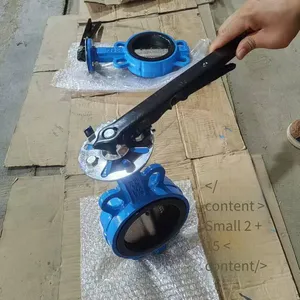

Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150 thumbnail-4
Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150 photo-1

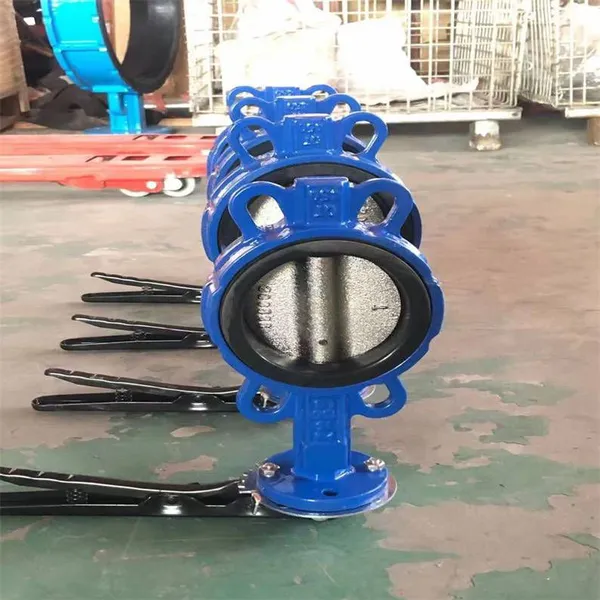

Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150 photo-2

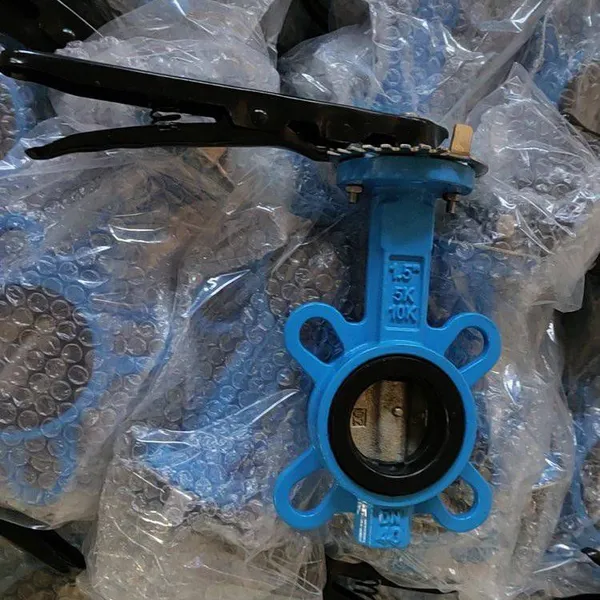

Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150 photo-3

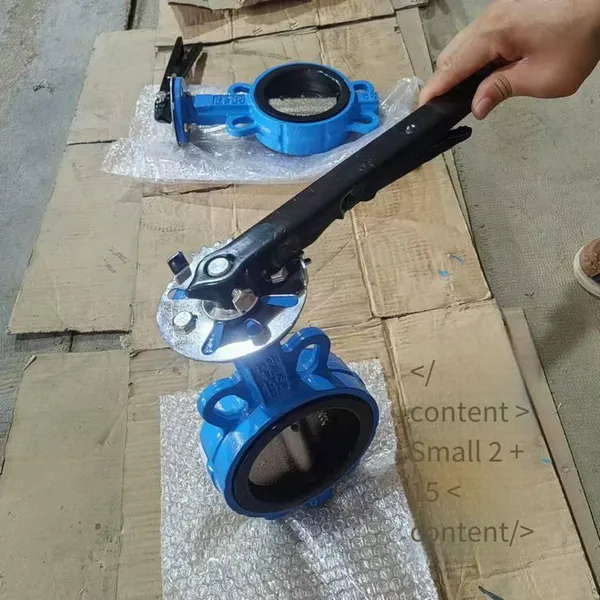

Jingdie Hugong Valve D71x Handle Soft-sealed Wafer Butterfly Valve Dn50, 100, 150 photo-4
US$ 136.62 1 - 9 Piece
US$ 90.46 ≥10 Piece
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Jingdie Valve Manufacturing Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Main Features

The main features of the D71X soft-sealed wafer butterfly valve are as follows:
1. The D71X soft-sealed wafer butterfly valve has a simple and compact structure, and it can be quickly opened with a 90° rotation.
2. It is small and lightweight, easy to disassemble, assemble and repair, and can be installed at any position.
3. The D71X soft-sealed wafer butterfly valve has a small operating torque during use, and the opening and closing are light and labor-saving.
4. The flow characteristic tends to be linear, and the adjustment performance is good.
5. The D71X soft-sealed wafer butterfly valve can reach 10,000 times of opening and closing tests, with a long service life.
6. It has good sealing performance, and the gas test leakage is zero.
The D71X soft-sealed wafer butterfly valve uses a variety of part material pairings, and can be applied to pipelines of fresh water, sewage, seawater, steam, natural gas, food, medicine, oil and various acid-base media. The applicable temperature is -10℃ +150℃, and the connection standard complies with the GB2555-81 standard. The main component materials of the D71X soft-sealed wafer butterfly valve produced by Shanghai Yihuan are selected as follows: Valve body material: cast iron, ductile iron, stainless steel, copper alloy, aluminum alloy; Butterfly plate material: ductile iron, stainless steel, corrosion-resistant steel, titanium steel, copper alloy; Valve seat: nitrile, ethylene propylene, neoprene, Hypalon, polytetrafluoroethylene, natural rubber, etc.


Scope of Application

Urban construction, chemical industry, metallurgy, petroleum, pharmacy, food, beverage, environmental protection

Product Overview


Structural diagram of the D71X soft-sealed wafer butterfly valve

Main external connection dimensions of the D71X-6/10/16 soft-sealed wafer butterfly valve? Unit: mm Return to the butterfly valve product list


DN		 L H HO A B 0.6MPa 1.0MPa 1.6MPa


Do n-d Do n-d Do n-d





50 43 63 235 270 110 110 4-14 125 4-18 125 4-18
65 46 70 250 270 110 130 4-14 145 4-18 145 4-18
80 46 83 275 270 110 150 4-18 160 8-18 160 8-18
100 52 105 316 270 110 170 4-18 180 8-18 180 8-18
125 56 115 340 310 110 200 8-18 210 8-18 210 8-18
150 56 137 376 310 110 225 8-18 240 8-22 240 8-22
200 60 164 430 353 150 280 8-18 295 8-22 295 12-22
250 68 206 499 353 150 335 12-18 350 12-22 355 12-26
300 78 230 570 380 150 395 12-22 400 12-22 410 12-26

Related Products


Product Tags: Handle wafer butterfly valve , Soft-sealed wafer butterfly valve , Handle butterfly valve , Wafer soft-sealed butterfly valve , Shanghai Jingdie Butterfly Valve
