Product Description
A packaging machine is a device designed to package products; it serves to protect the goods, facilitate their storage and transport, and enhance their visual appeal. These machines are widely utilized across various industries, including food, pharmaceuticals, daily chemicals, and hardware. The following section provides a detailed overview covering their definition, classification, operating principles, core structural components, applications, and advantages:
Definition: A device that employs technologies such as mechanical control, sensor recognition, and PLC programming to automate the entire packaging process-encompassing product metering, filling, sealing, labeling, inspection, and case packing.
Core Functions:
Automatic Feeding and Positioning: Rapidly conveys products and ensures precise alignment.
Metering and Filling: Accurately dispenses and fills various substances, such as liquids, granules, or powders.
Sealing and Coding: Performs heat sealing or cold sealing, and prints batch numbers or expiration dates.

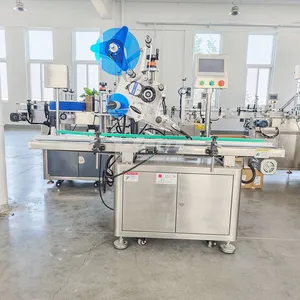

Labeling and Inspection: Applies labels to packages and verifies the quality of the packaging.
Case Packing and Stacking: High-end models are capable of automatically packing products into cases and stacking them onto pallets.
Working Principle
General Process:
Feeding: Material is conveyed from a hopper or conveyor belt into the metering device.
Metering: Precise quantitative measurement via weighing, volumetric methods, or counting.

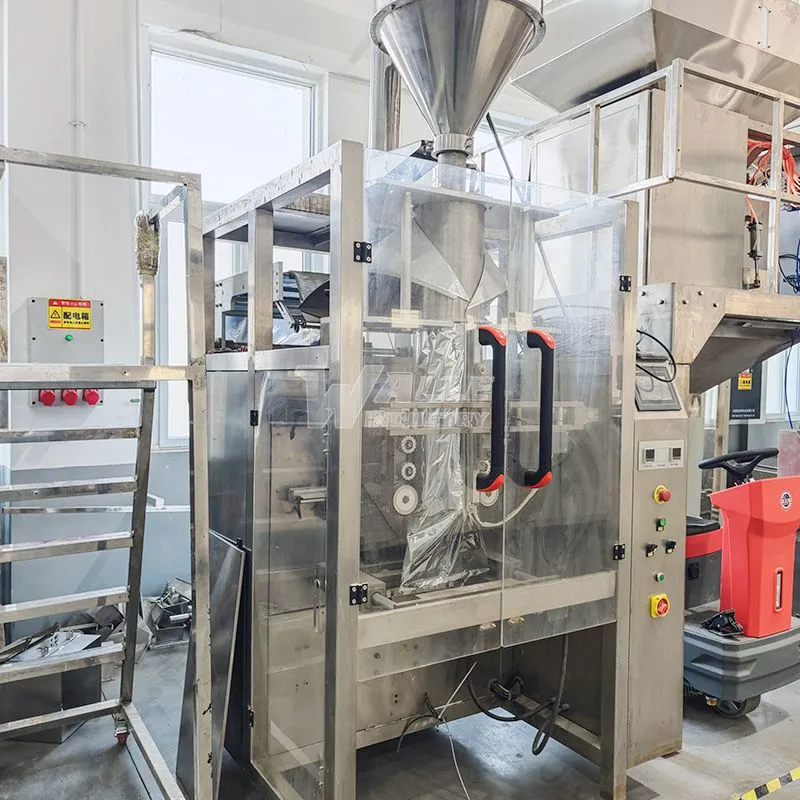

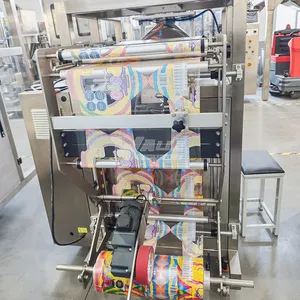

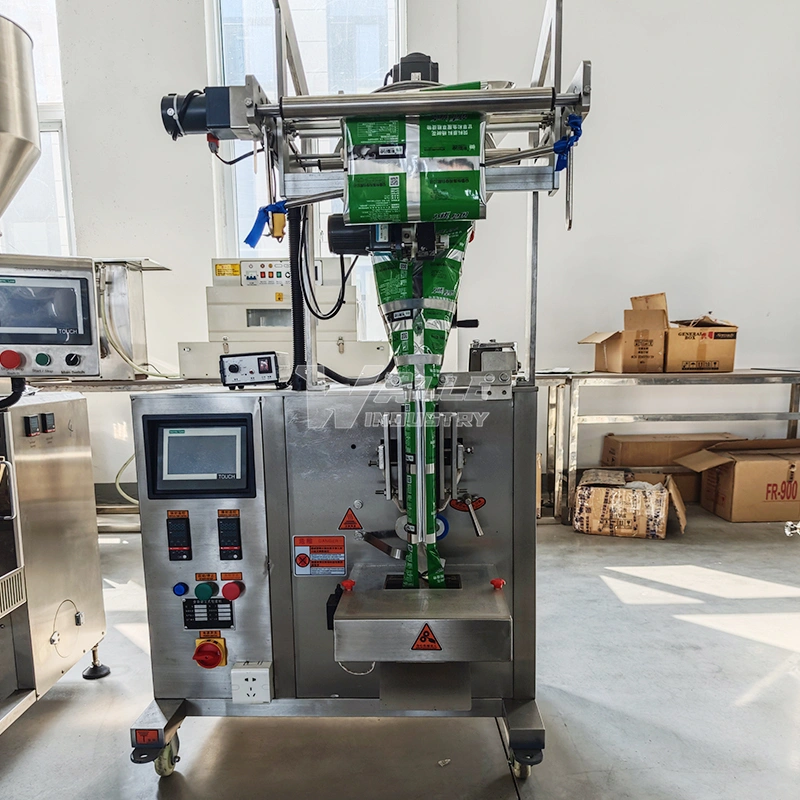

Bag Forming / Bag Handling: Vertical machines form bags from roll stock film; pouch-packing machines pick up pre-made pouches.
Filling: Material is dispensed into the bag or container.
Sealing: Heat sealing (most common), cold sealing, or capping.
Coding / Labeling: Printing of dates or batch numbers, and label application.
Inspection / Output: Sensors detect and reject non-conforming products, followed by the output of finished goods.
Core Structure (Fully Automatic Models)
PLC Control System: The "brain" of the entire machine, programmed to control every operational movement.
Servo Drive System: Precisely controls film feeding, bag pulling, and sealing positions.

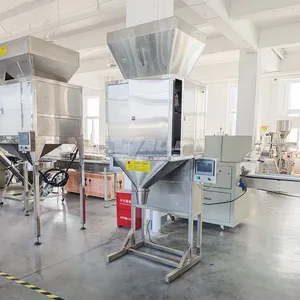

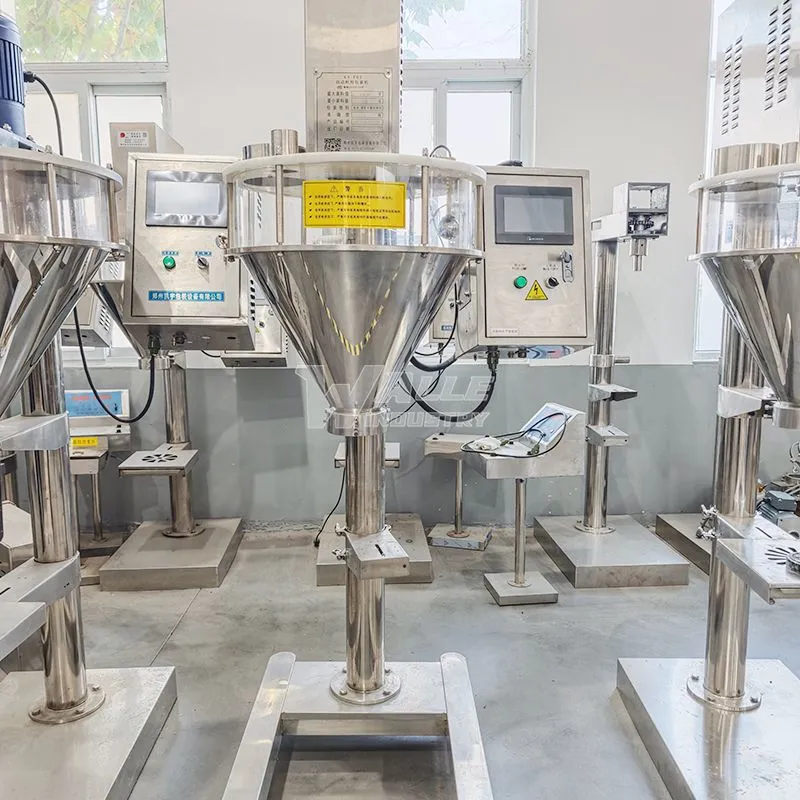

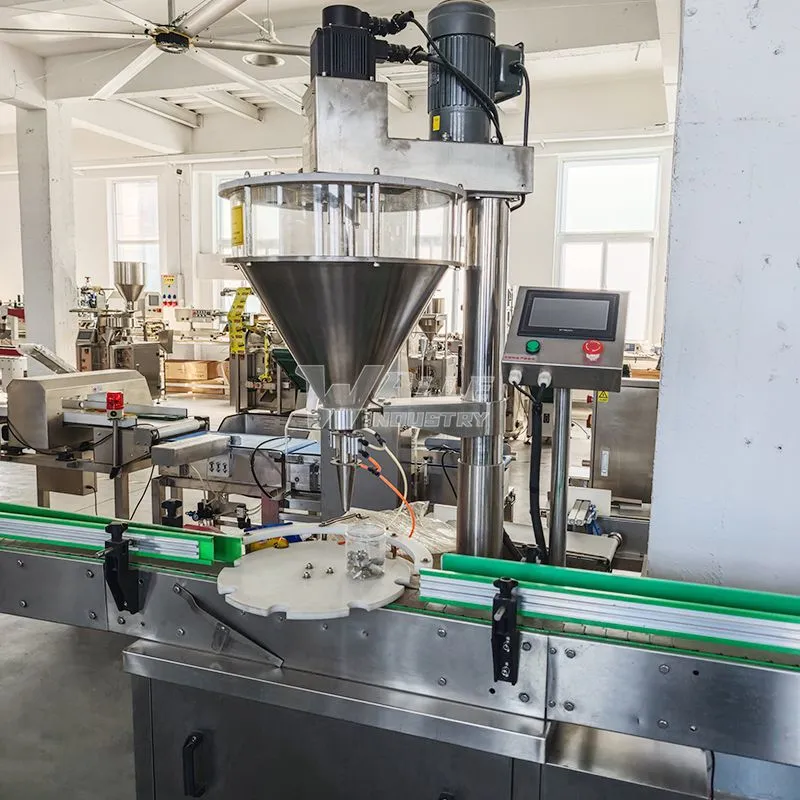

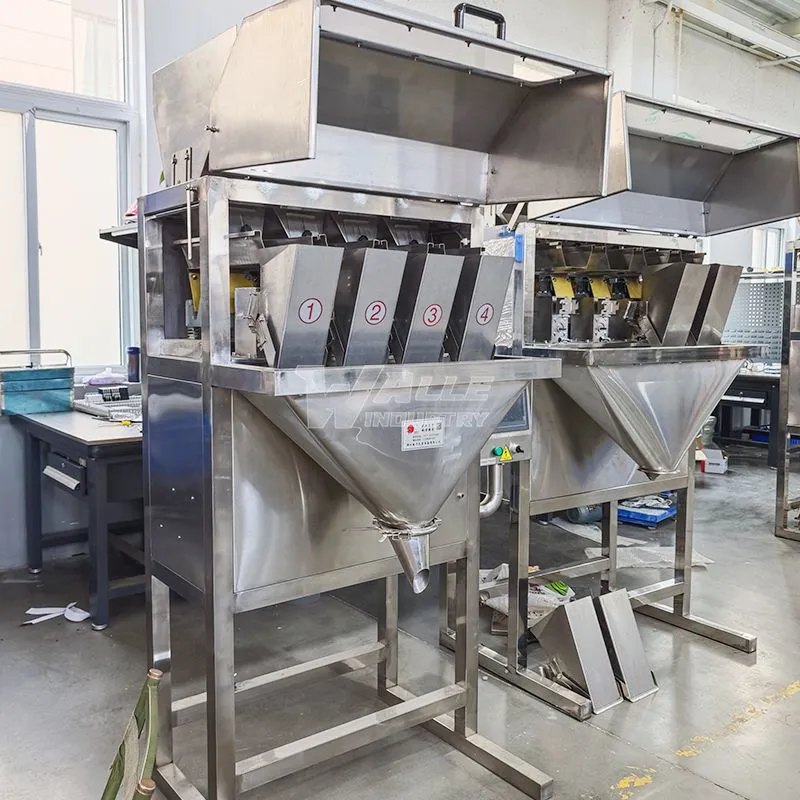

Metering Devices: Volumetric cups, auger fillers, electronic scales, multi-head weighers, etc.
Heat Sealing Mechanism: Horizontal and vertical sealing jaws, controlling both temperature and pressure.
Feeding / Forming Mechanism: Hoppers, conveyor belts, and bag formers.
Detection Sensors: Photoelectric sensors, color mark sensors, and pressure sensors, ensuring precision and stability.
Applicable Industries
Food: Snacks, rice and flour products, sauces, frozen foods, fresh produce.
Agricultural Supplies: Fertilizers, animal feed, pesticides (granular/powder).
Pharmaceuticals: Tablets, granules/powders, liquid medicines, medical devices.
Daily Chemicals: Laundry detergent, toothpaste, cosmetics, soap.
Hardware / Electronics: Small parts, accessories, data cables.
Core Advantages
High Efficiency: Speeds reaching 30-120 bags/minute, far exceeding manual labor capabilities.
High Precision: Metering error ≤ ±1%, ensuring uniform packaging specifications.
Labor Saving: Fully automatic operation reduces the need for 5-10 workers, thereby lowering labor costs.
Enhanced Hygiene: Minimizes manual contact, complying with food and pharmaceutical hygiene standards.
Easy Management: Intelligent PLC control allows for adjustable parameters and convenient product changeovers.
Selection Guidelines

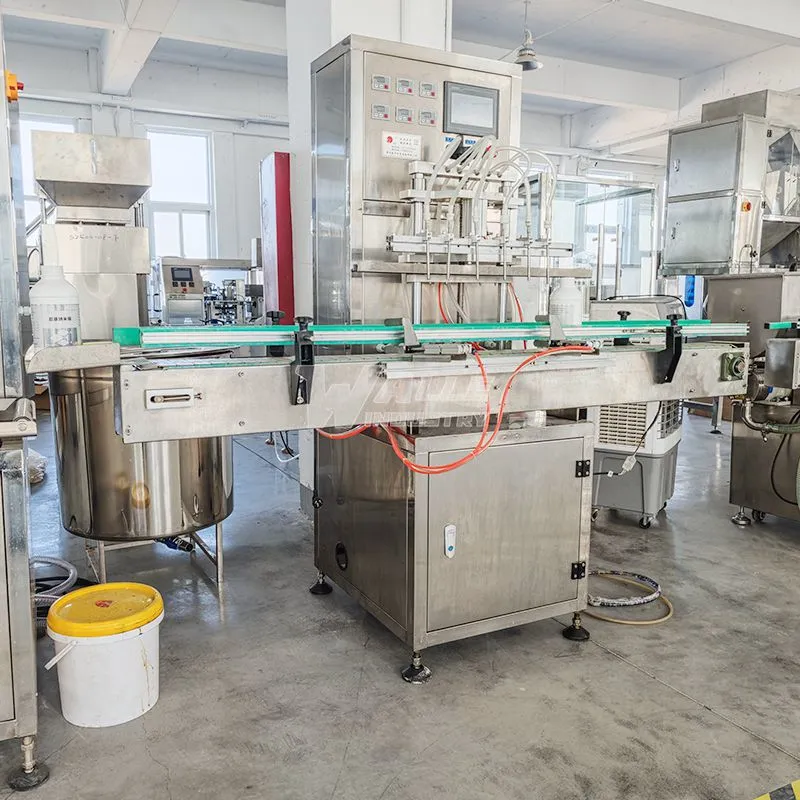

Material Form: Granules/powders-choose a vertical machine; liquids-choose a liquid filling machine; block-shaped items-choose a pillow-packing machine.
Packaging Specifications: Small bags (1-500g)-choose a vertical or pre-made bag machine; large bags (25-50kg)-choose a large-bag packing machine.

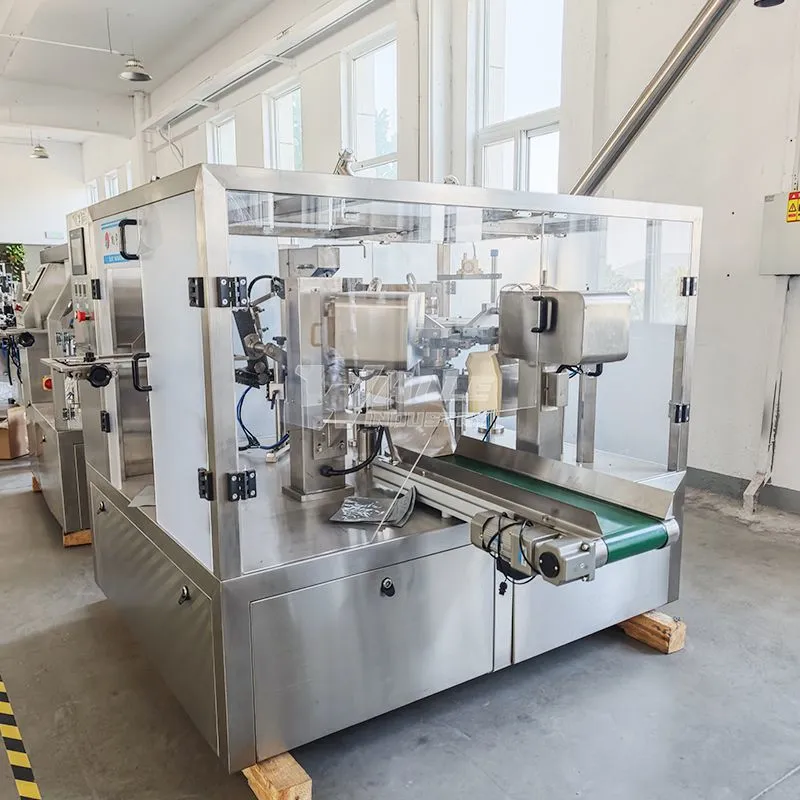

Bag Type Requirements: Standard 3-side seal bags-choose a vertical machine; stand-up pouches/zipper bags-choose a pre-made bag machine.
Capacity Requirements: Low speed (30 bags/min)-choose a semi-automatic machine; high speed (≥60 bags/min)-choose a fully automatic machine.
Budget & Space: Vertical machines offer high cost-effectiveness and a small footprint; pre-made bag machines offer comprehensive functionality but come at a higher price point.
