Universal powder pulverizer

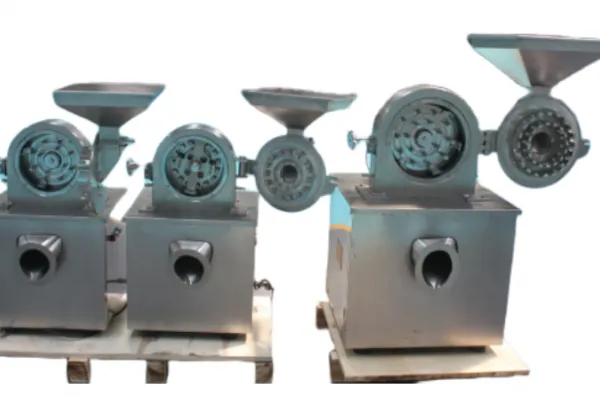

The food grade toothed disc crusher is made of 304 stainless steel. The door of the crusher is equipped with a fixed toothed disc, on which a ring of fixed toothed ring with steel teeth is installed. The main shaft is provided with a movable tooth disc, and the movable tooth disc is provided with movable teeth. The movable teeth and the fixed gear ring on the movable gear plate are staggered with each other.
Description
Main application
The machine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc .
Characteristics
The crushing chamber is equipped with wind wheel type high~speed rotating cutters, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber.
It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
Working Method
The machine uses the wind wheel type high~speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber
to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen.
Inside the machine there are several groups moving knives (or prisms or hammerheads) in rotary wheel, and a group fixed knives in gear ring.
Within the cutting and collision of moving knives and fixed knives, the material was crushed. At meanwhile the grinding chamber has produced airflow,
which put heat and the finished product outflow together from the sieve and discharge.
|
Model |
Capacity (KG/H) |
speed (r/min) |
Feed size (mm) |
Crush size (mm) |
Power (kw) |
Weight (kg) |
Dimensions (mm) |
|
GY20 |
20-150 |
4500 |
<6 |
12-120 |
4 |
280 |
590*650*1350 |
|
GY30 |
30-300 |
3800 |
<10 |
12-120 |
5.5 |
350 |
650*800*1500 |
|
GY40 |
40-500 |
3400 |
<12 |
12-120 |
7.5 |
480 |
800*950*1700 |
|
GY60 |
60-600 |
2400 |
<15 |
12-120 |
22 |
650 |
950*1050*1900 |
|
GY80 |
80-1000 |
2200 |
<15 |
12-120 |
37 |
1050 |
2500*1500*2100 |
